Ⅰ. Features
1. Embed 4 high-performance and high-frequency receiving modules, low energy consumption and high sensitivity.
2. A single machine can support up to 8-meter pro mat and 8-meter FMA2 mat antenna.
3. Support plate antennas, and the reading and writing distance can reach 15 meters.
4. Embedding large-capacity lithium battery, working for more than 10 hours at full load, and can standby for more than 40 hours.
5. The United States imported military-grade pelican box, which is sturdy and durable.
6. Imported advanced resin material mat antennas are more wear-resistant, environmental, beautiful and without any odor.
7. It is easy to install, convenient and fast to use with FMA2 mat antenna, Pro mat and low-frequency coil.
8. Dedicated highly penetrating wireless data link, synchronizing the internal clocks of all nearby devices with one click.

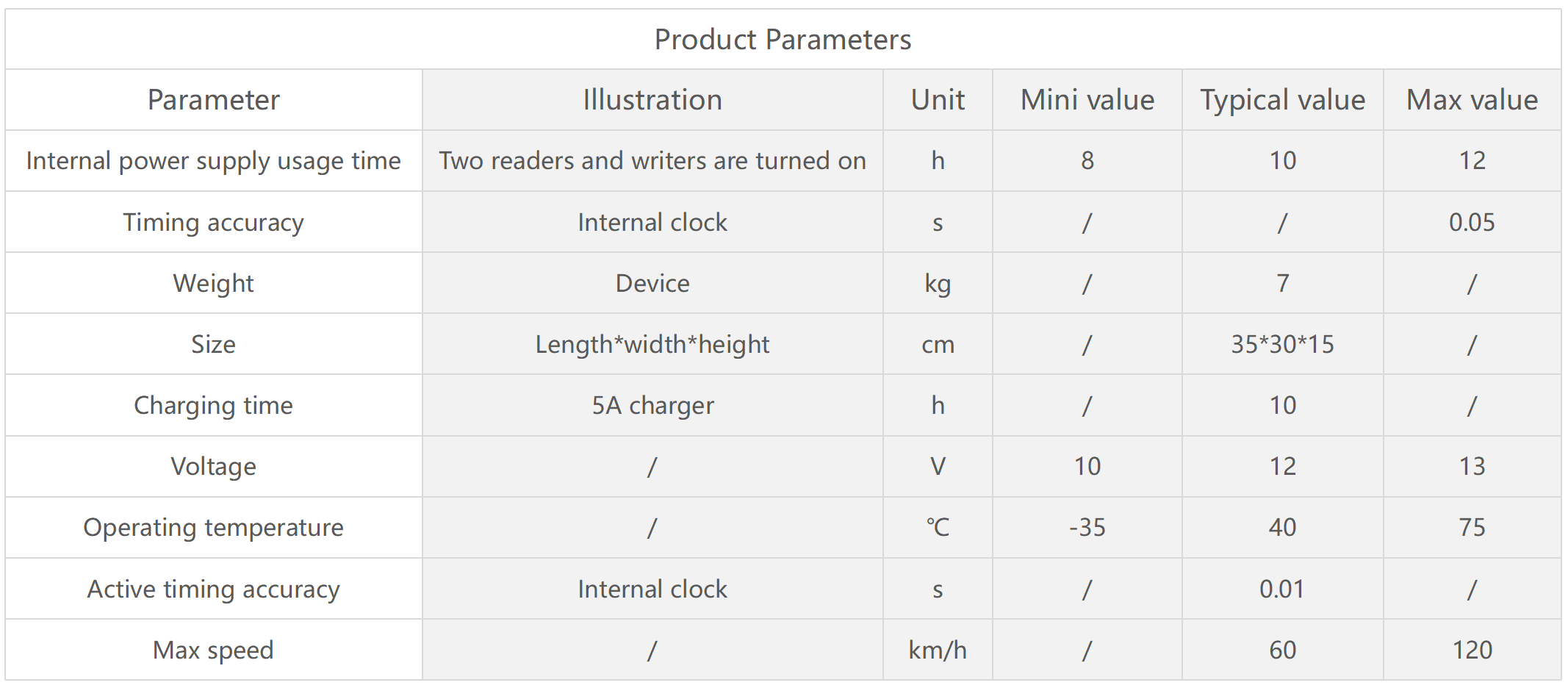

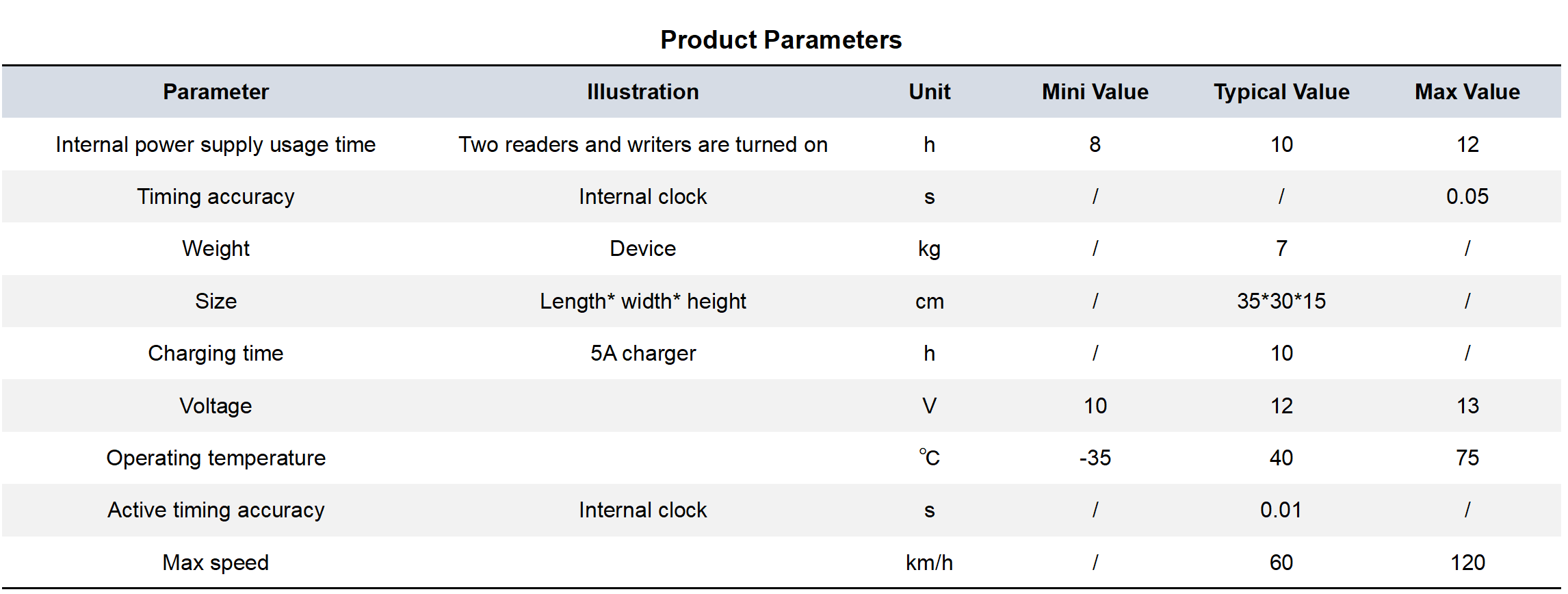

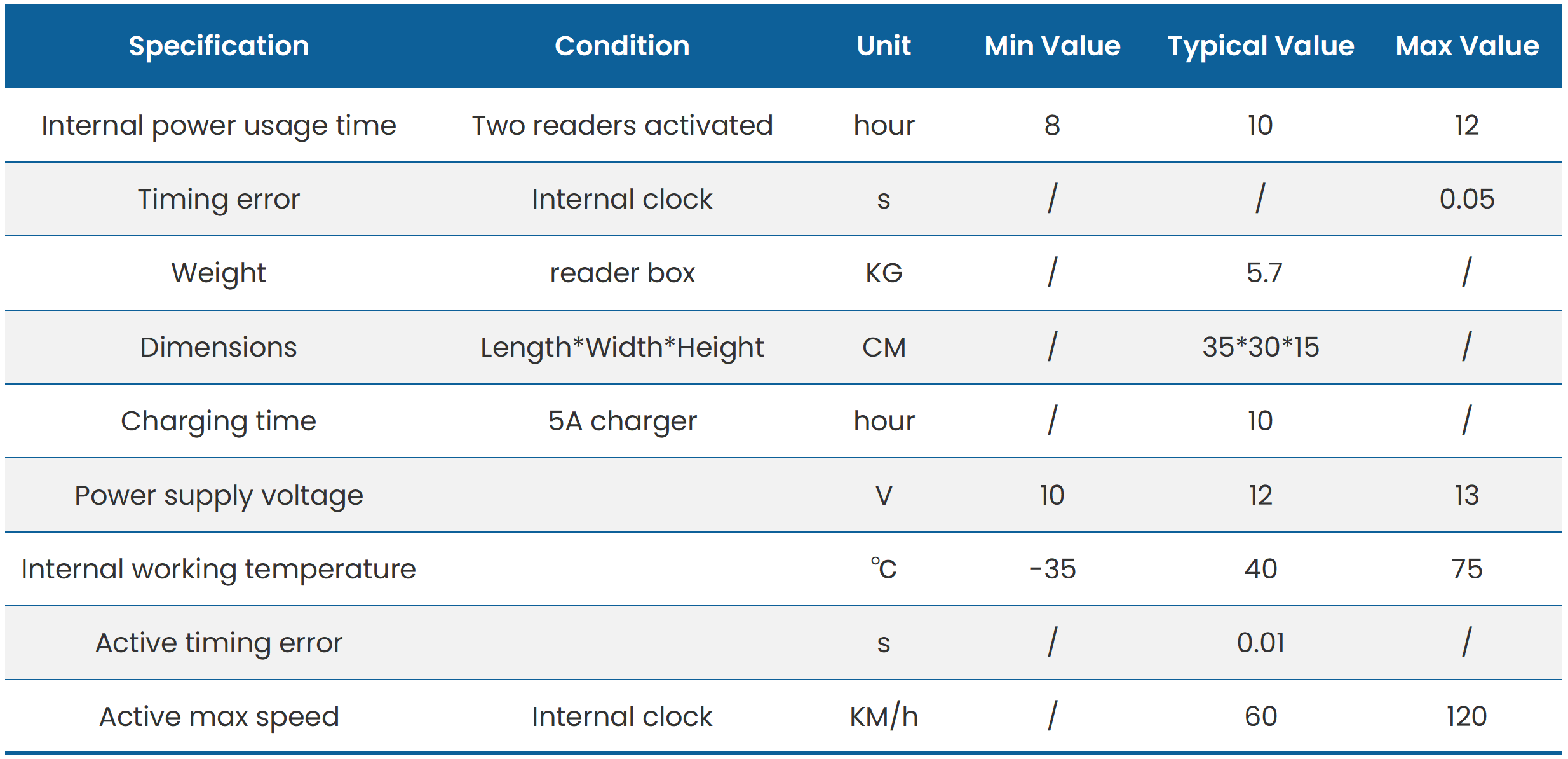

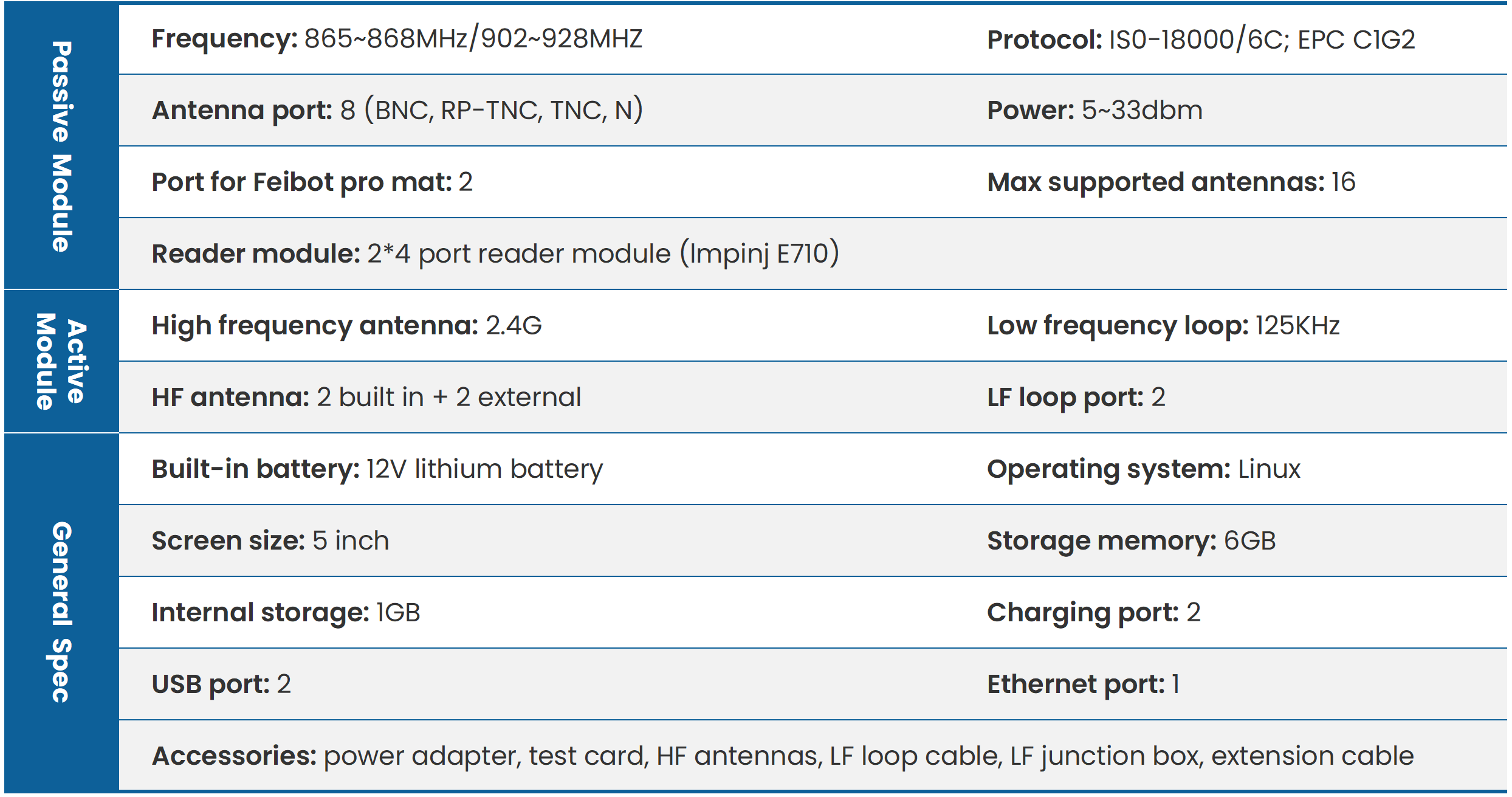

Ⅱ. Specification

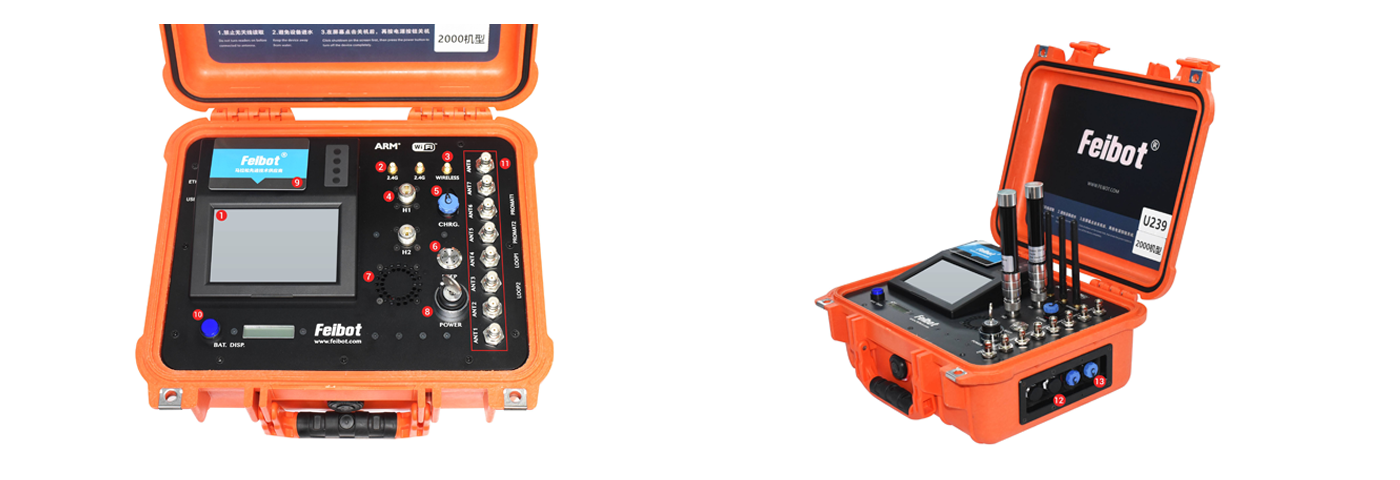

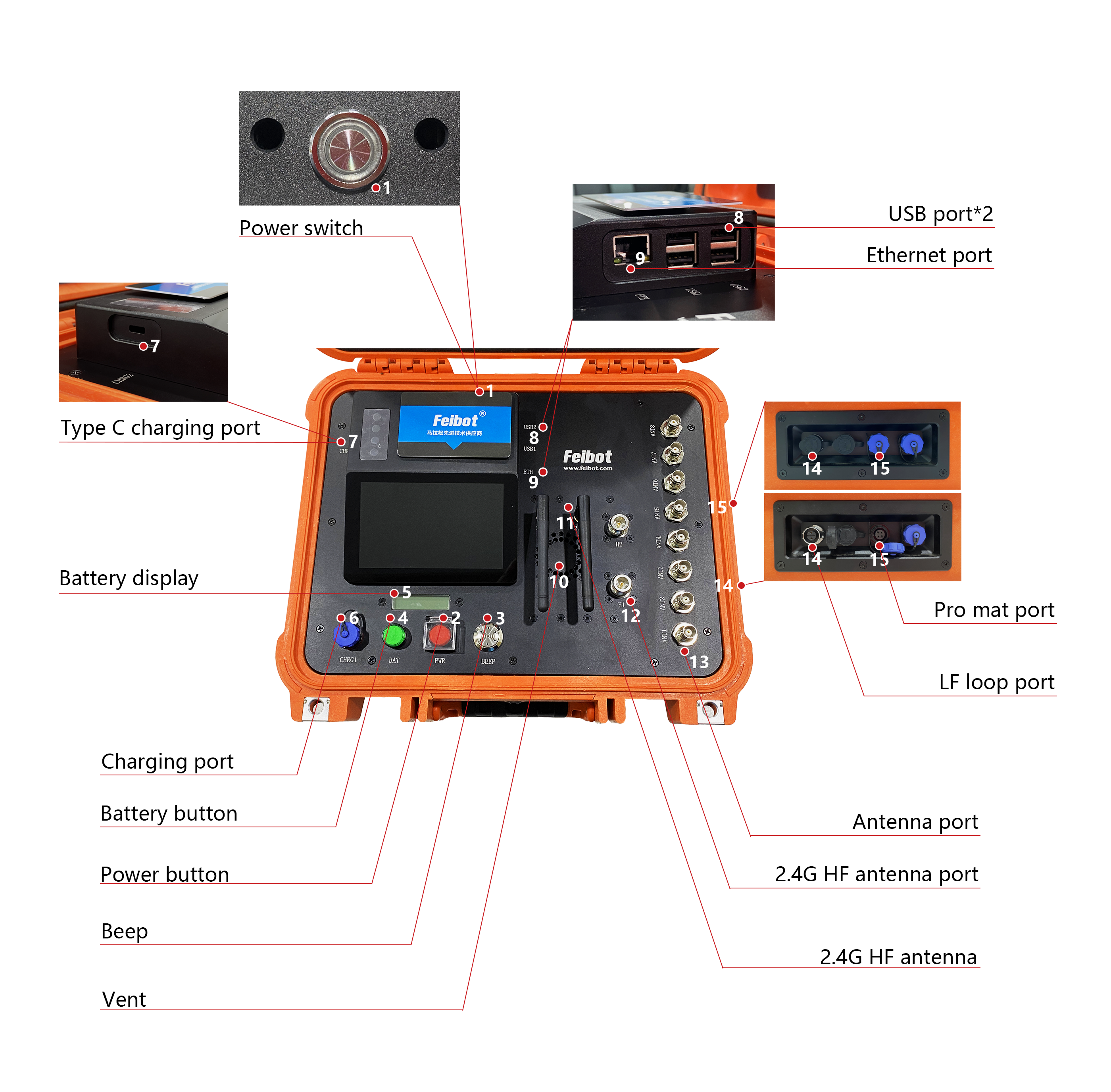

Ⅲ. External Accessories
1. Screen
Display events name, device point name, competition duration, software function operation, etc.
2. Low-frequency antenna interface
3. Wireless antenna
Receive and transmit wireless timing signals so that the benchmark time of the abortion device is consistent.
4. High-frequency antenna interface
Connect two high gain 2.4G antennas to receive data sent by the active chips.
5. Charging port
Used to charge the device.
6. Buzzer
Issue a prompt when reading a tag or some important instructions.
7. The cooling fan
Used to dissipate heat inside the device.
8. Key switch
The device is turned on/off, after the software interface turned off turning the key counterclockwise to cut off the power.
9. Test card
Test whether the floor mat antenna and plate antenna can be read normally.
10. Power display module
By turning on and off the power display button, checking the power of the device when the device is in shut-down state.
11. BNC connector
Used to connect FMA2 mat antenna and panel antenna.
12. Low frequency coil interface
When using an active system, connect the low-frequency coil split box, which can connect two sets of low-frequency coils. The active label is activated when passing through the coil.
13. Pro mat interface
Used to attach Pro mat.

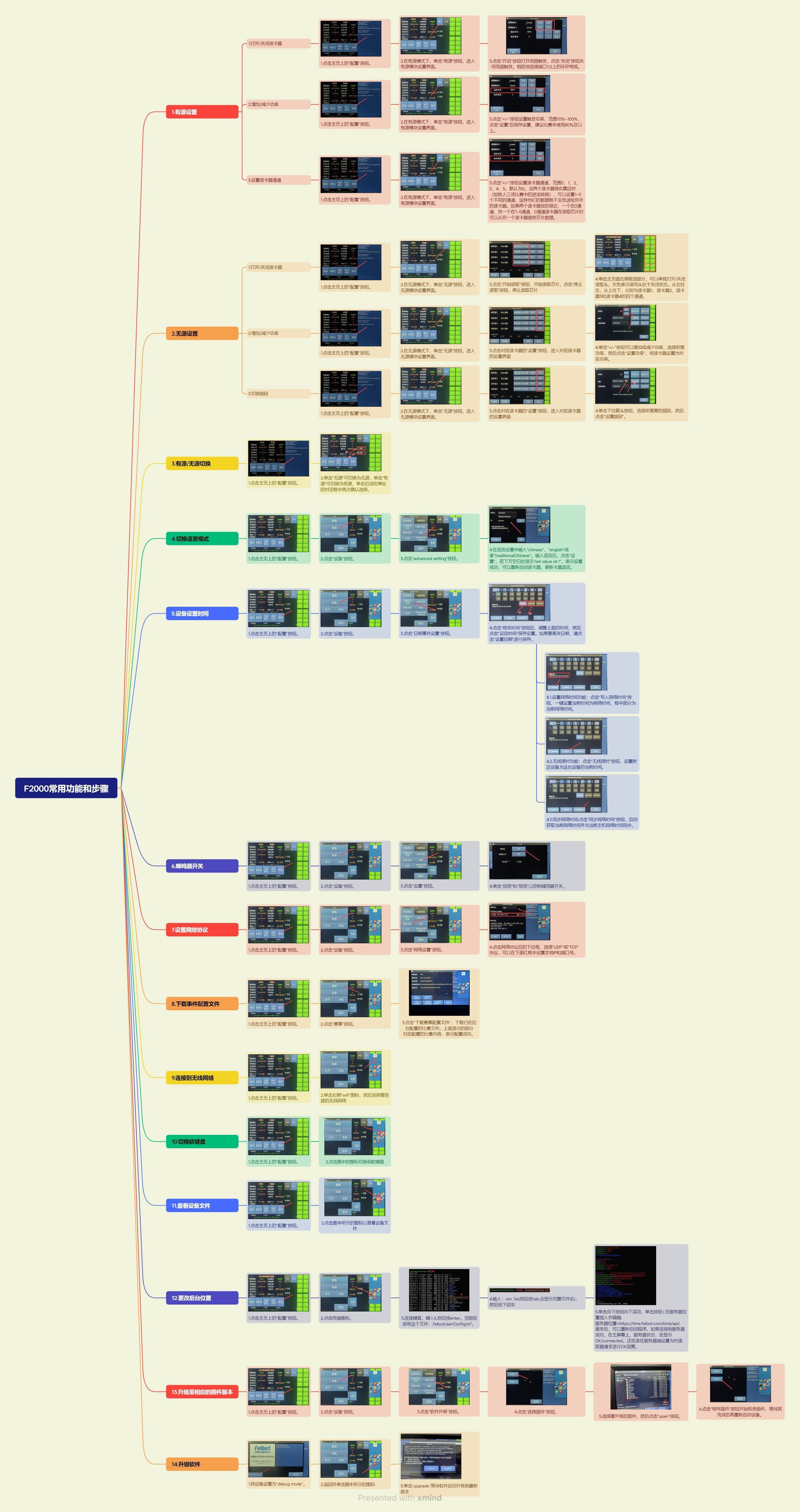

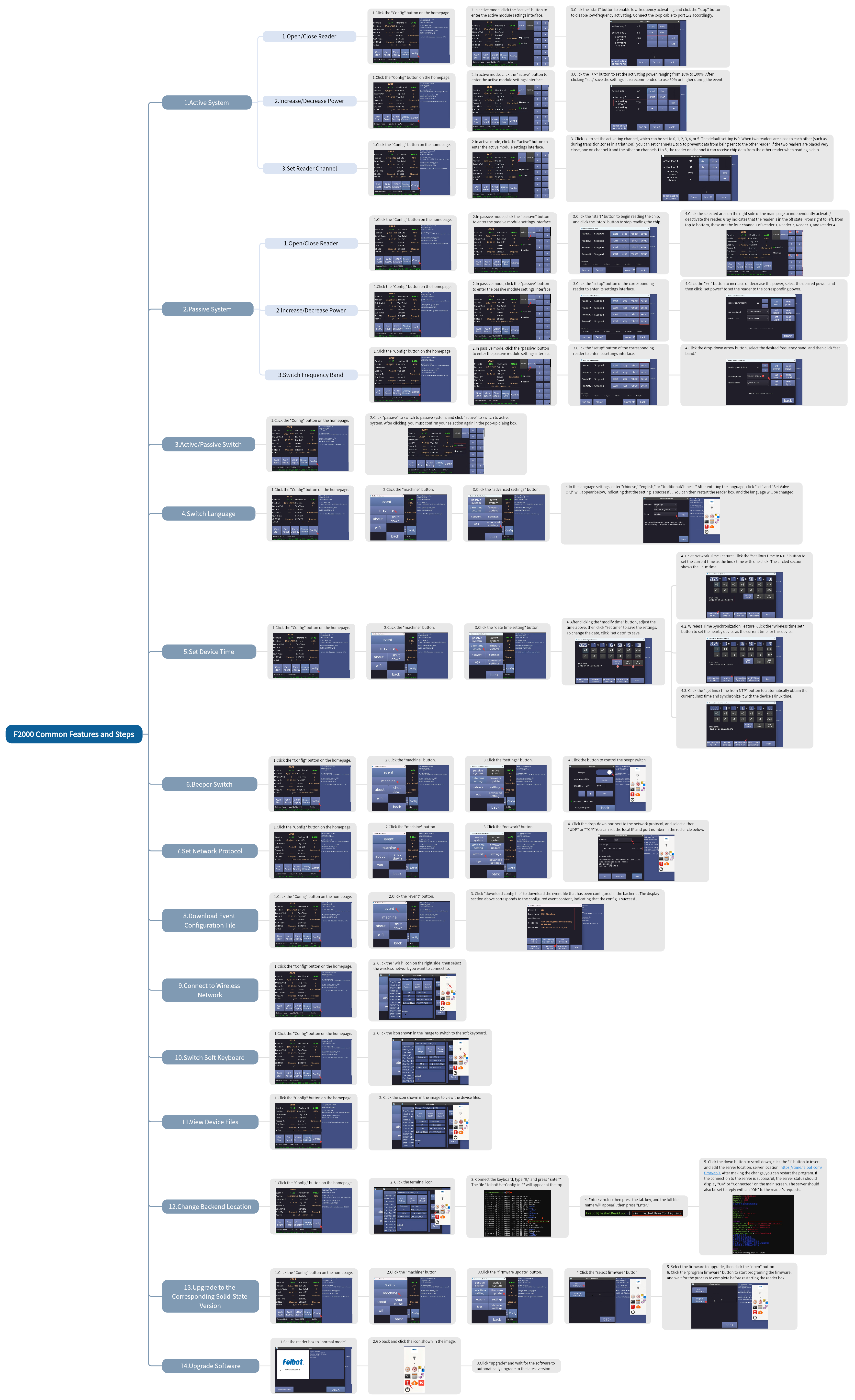

Ⅳ. Common Functions and Steps
