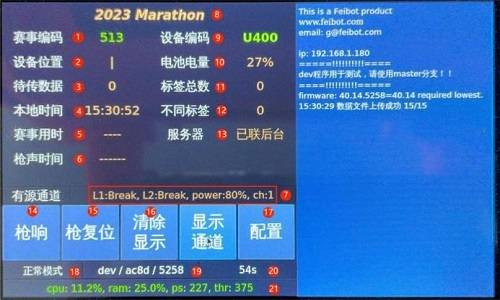

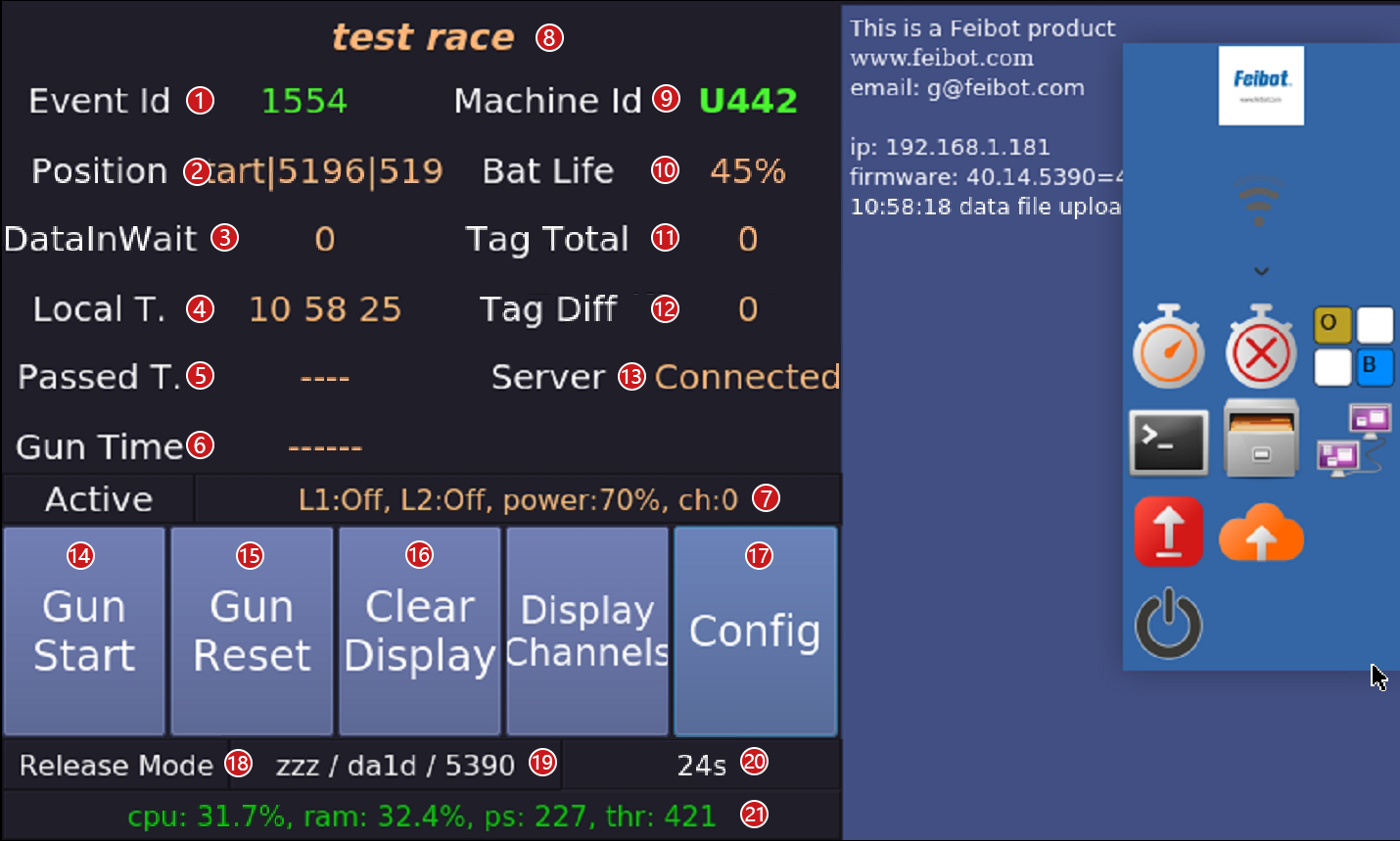

Ⅰ. Main Interface
1. Event lD which the current device belongs.
2. Position information of the device configured in the backend.
3. The data has been read but not been uploaded to the backgend.
4. Local time(pay attention to calibrate the time before the game).
5. The current contest duration.
6. Gun time.
7. Display the low-frequency triggering 1/2 state, and the trigger power and channel.
8. Event name of device.
9. Machine lD.
10. Battery life.
11. All tags data read by the device.
12. The number of different tags checked by the device.
13. Display the network status. There are three states:"not connected to the Internet", "notconnected to the backend", and"has connected to the backend".
14. Start to record the time of the gun shooting.
15. Time of gun shooting cleared.
16. Clear all content displayed on the right.
17.Open the configuration page.
19. Display the current software/firmware version number.
20. Display the power-on duration.
21. Display the occupancy rate of the device CPU and ram, as well as the number of processes andthreads running on the operating system at present.

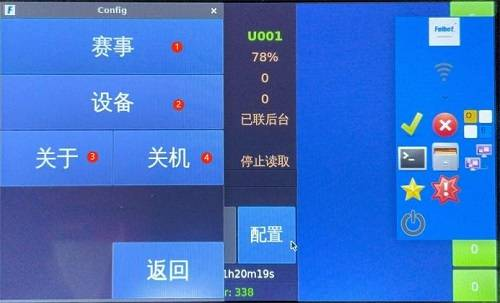

Ⅱ. Configuration Interface
1.Open event interface.
2. Open machine interface.
3. Open about interface.
4. Select "Shut down" or "Restart" the device.
5. Open WiFi interface.

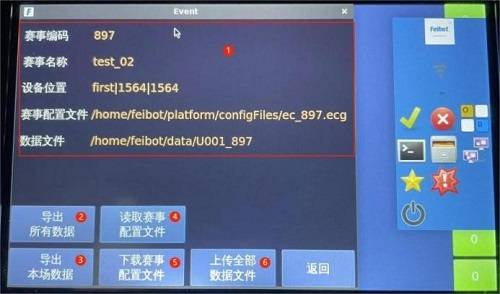

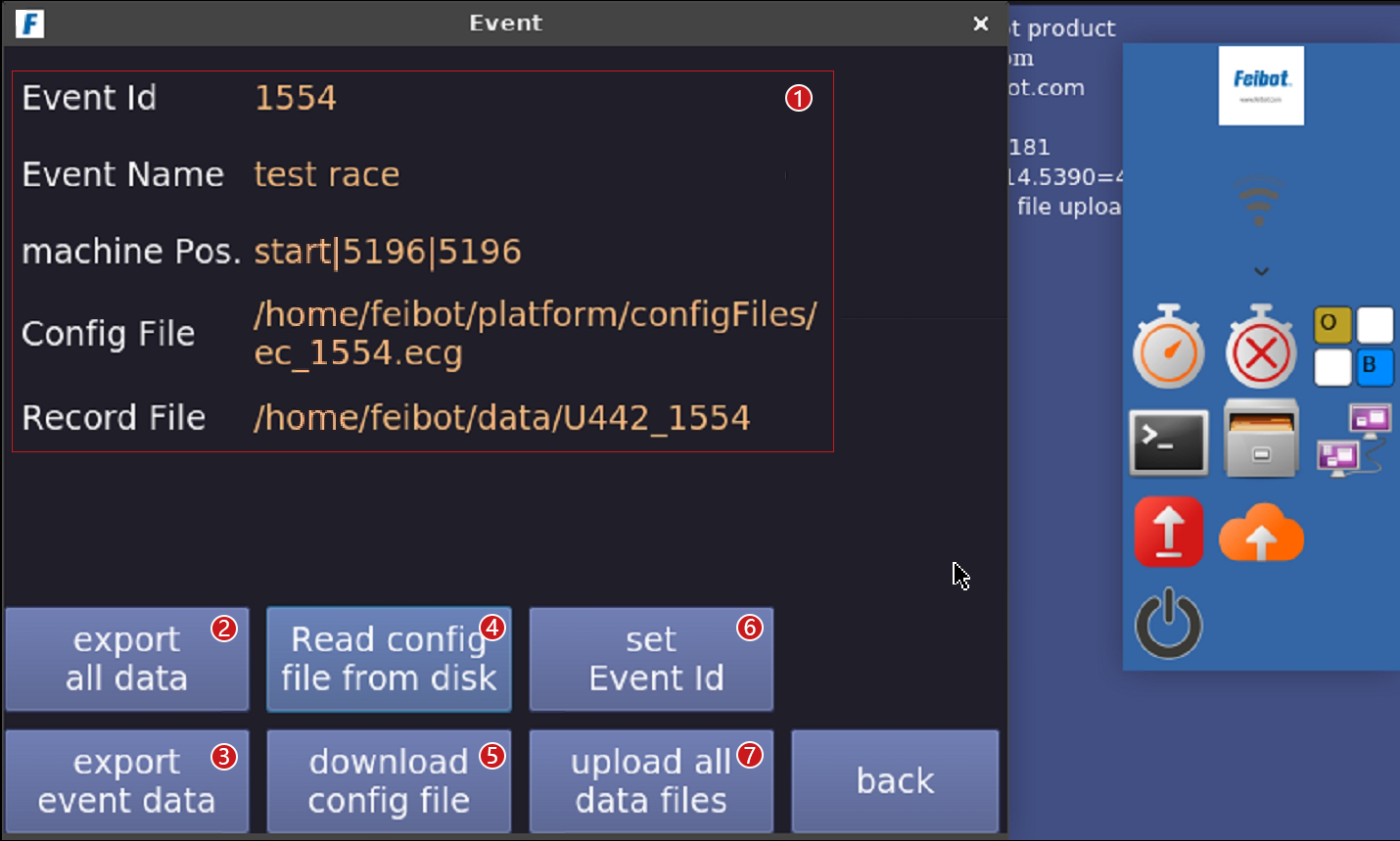

Ⅲ. Event Interface
1. Display the information and the location where the event configuration files and data files storedin the backend.
2. Export all data stored in device.
3. Export the data stored in event.
4. Read configuration files from disk.
5. Download configuration files(you need to click this button to download configuration file beforeevent).
6. Set event lD.
7. Upload all data files of this device.

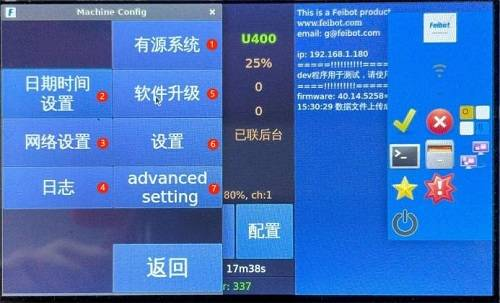

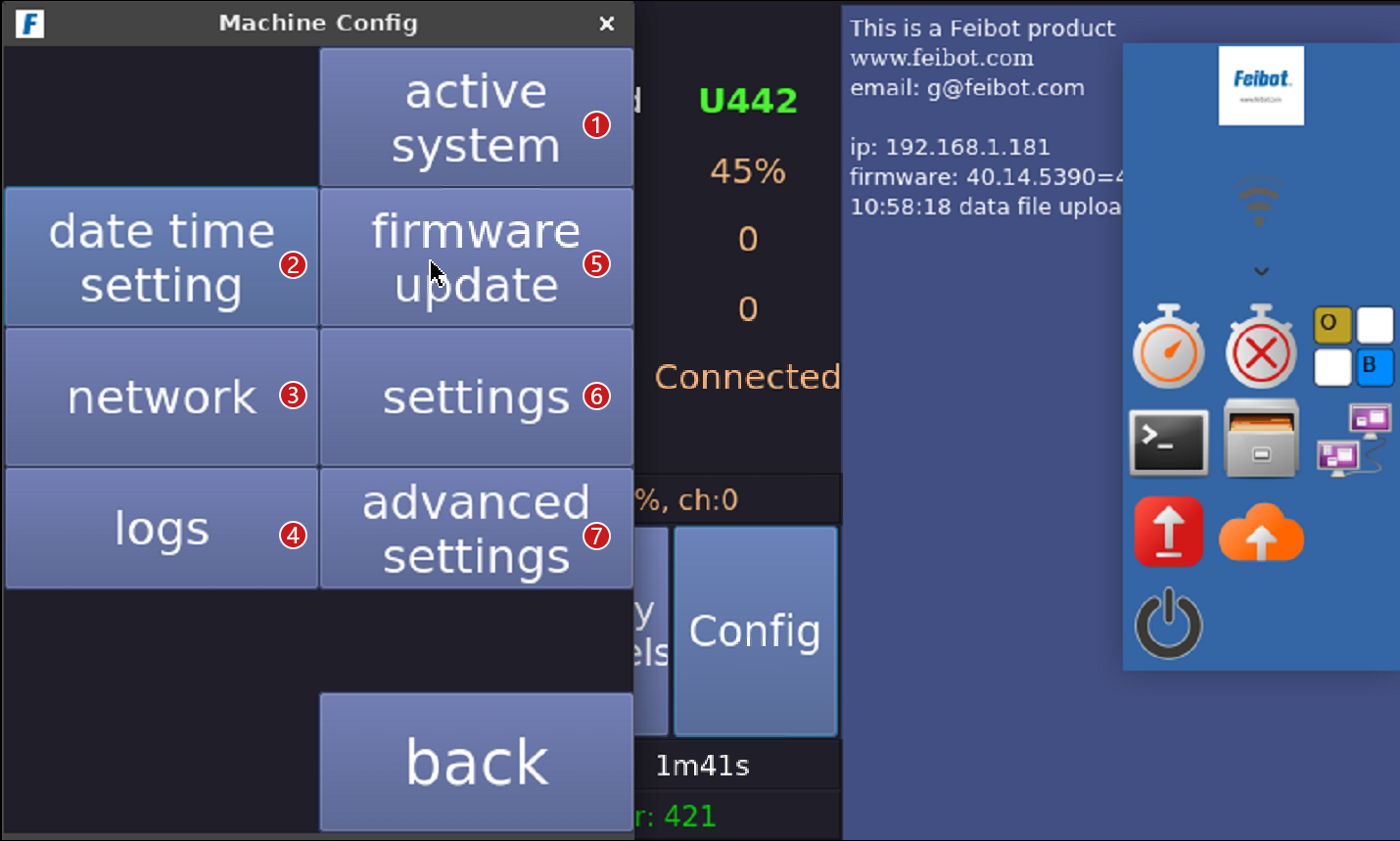

Ⅳ. Device Interface
1. Open active system setting operation interface.
2. Open date time setting interface.
3. Open network setting interface.
4. Open log interface.
5. Open firmware update operation interface.
6. Open setting interface.
7. Open advanced setting interface.

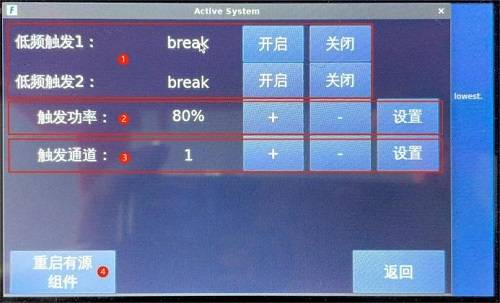

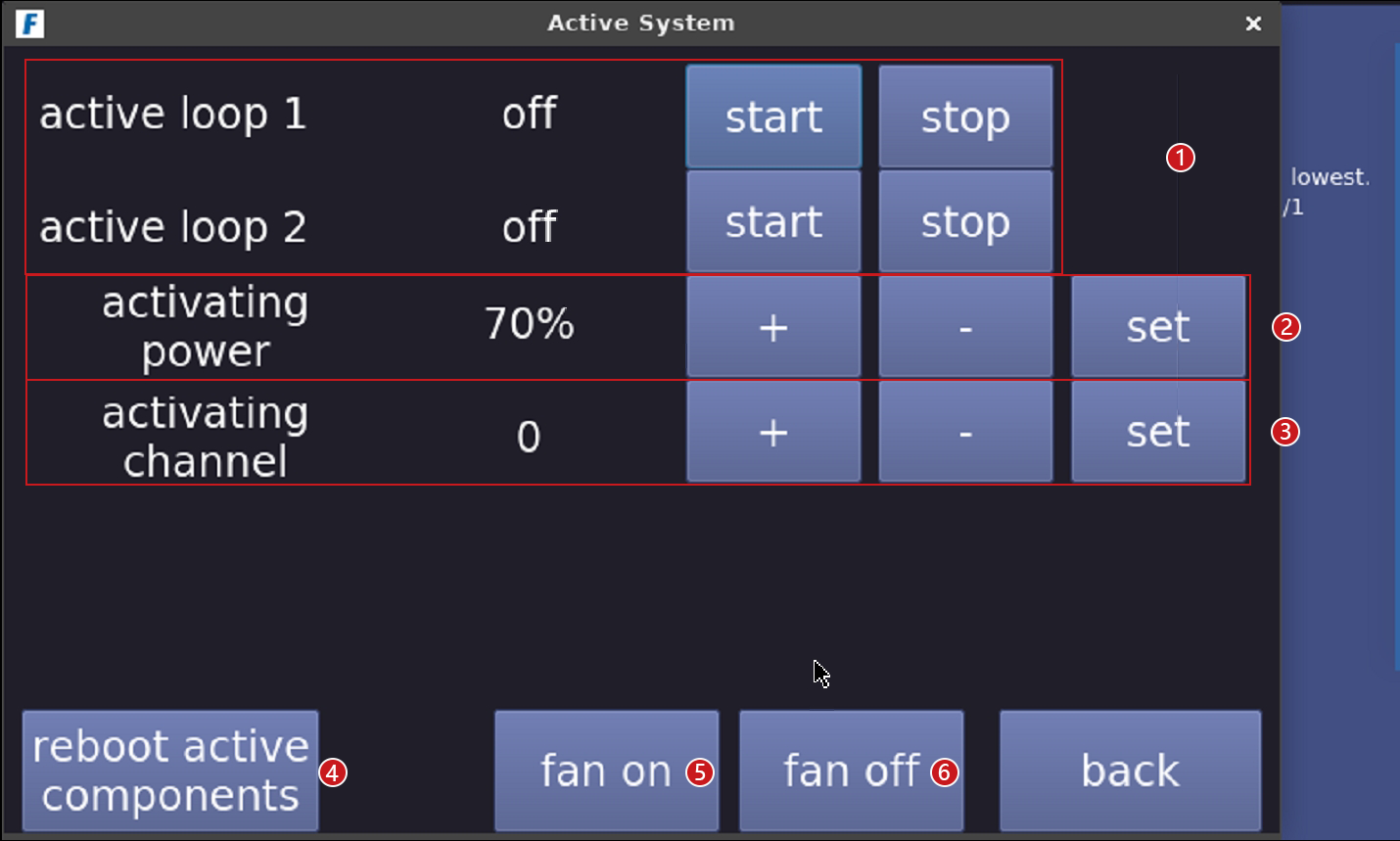

Ⅴ. Active System Settings Operation Interface
1. Turn on/off low frequency trigger 1/2.
2. Increase/decrease activating power. The max is 100%, and the mini is 0%. The greater trigger power, the better reading effect.
3. Select trigger channel. There are 0-5 channels to choose, and the communication distance between 0 and 5 channels showing a downward trend.
4. Reboot active components.
5. Turn on the fan.
6. Turn off the fan.

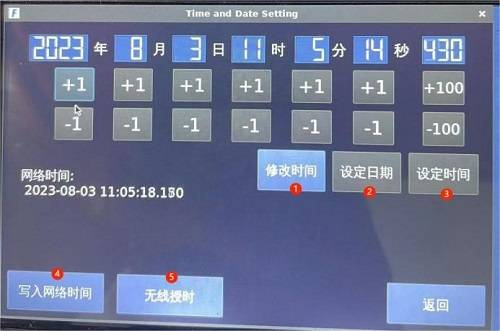

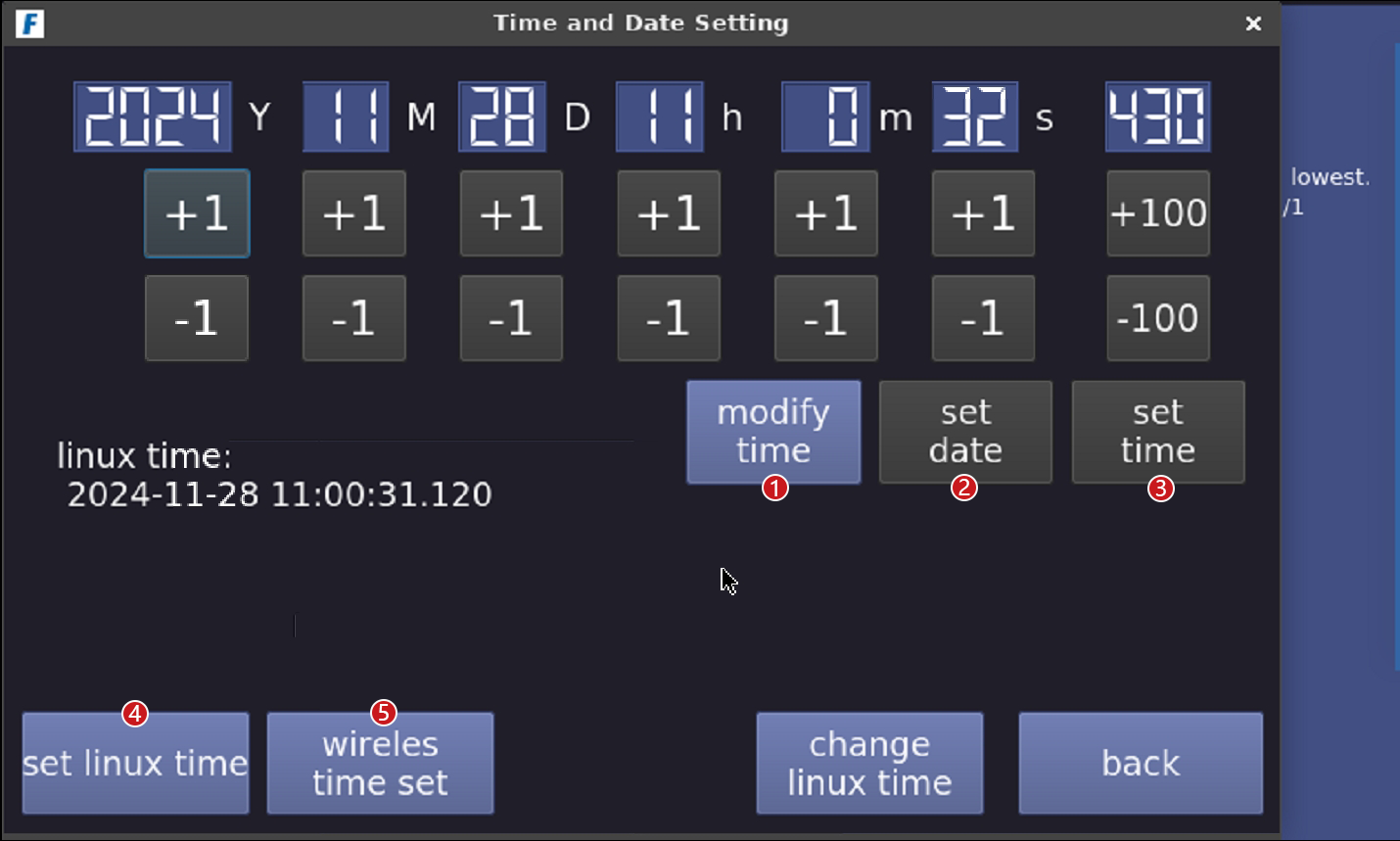

Ⅵ. Time and Date Setting Interface
1. Modify time manually , click "+1" and "-1" above to adjust to the correct time.
2. lf you modify the date manually, you need to click "Set Date" button.
3. lf you modify the time manually, you need to click "Set Time" button.
4. Set linux time.
5. Wireless time set.

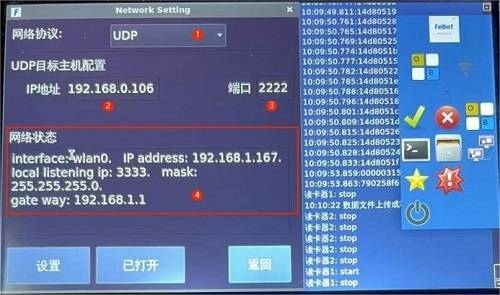

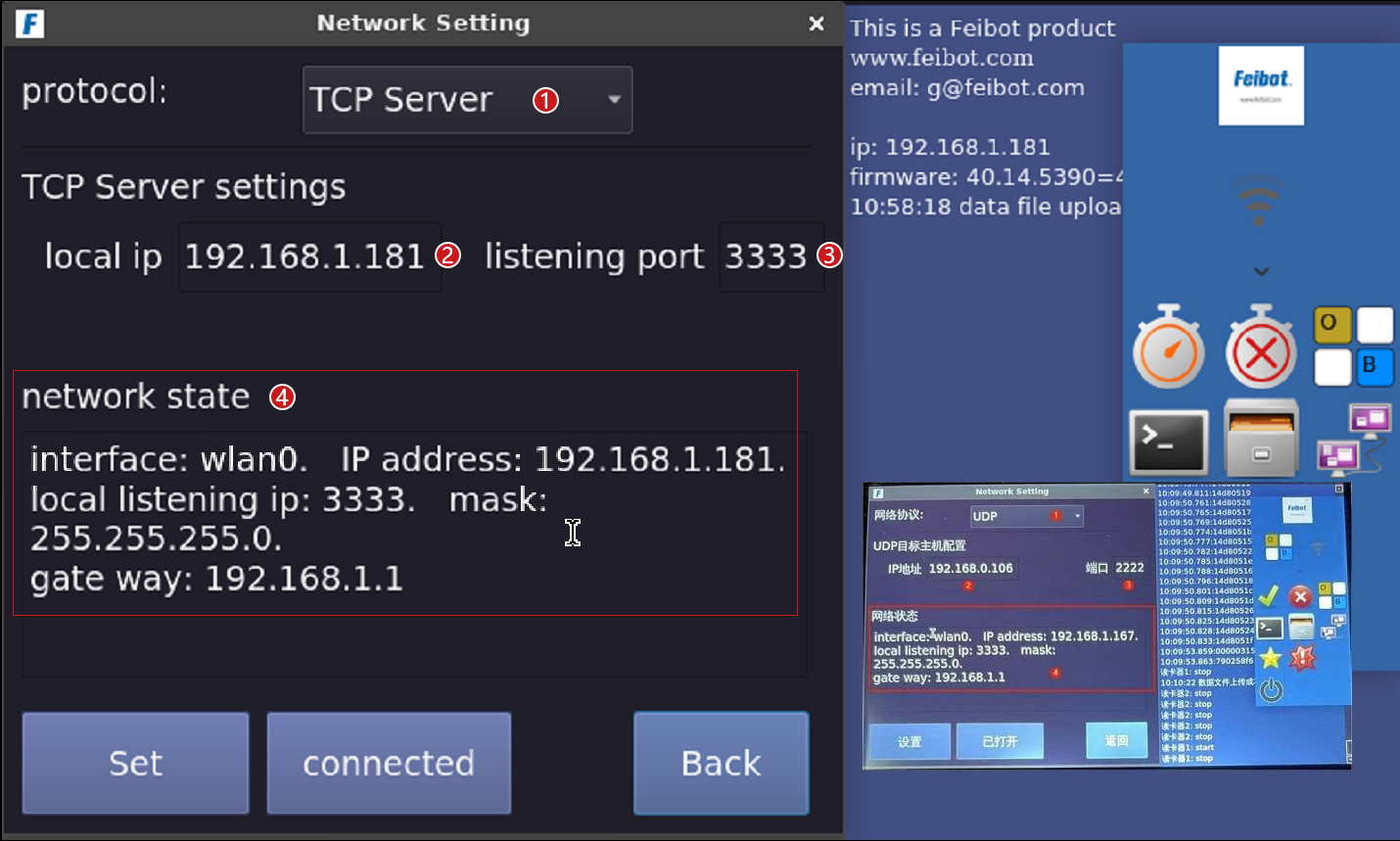

Ⅶ. Network Settings Interface
1. Set up protocol, you can set two network protocols:"UDP" and "TCP".
2. Set local IP.
3. Set listening port number.
4. Display the network state of the device.

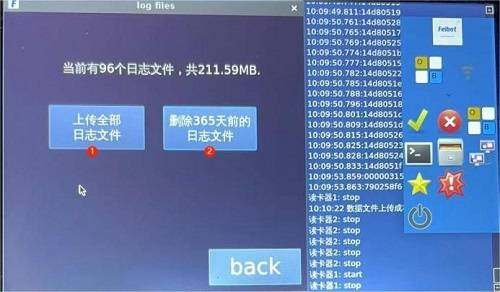

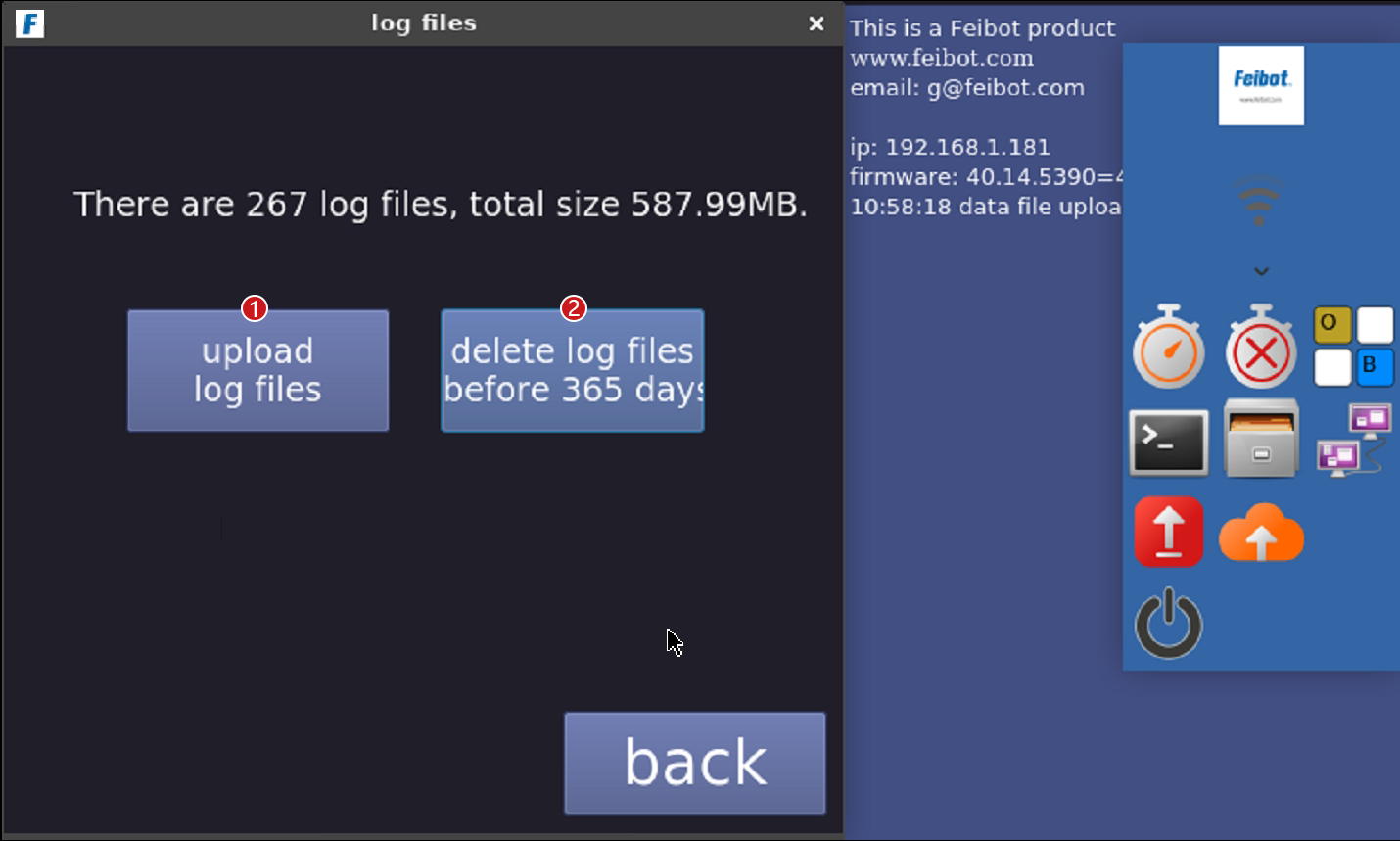

Ⅷ. Log Interface
1. Upload log files of this device.
2. Delete the log files before 365 days.

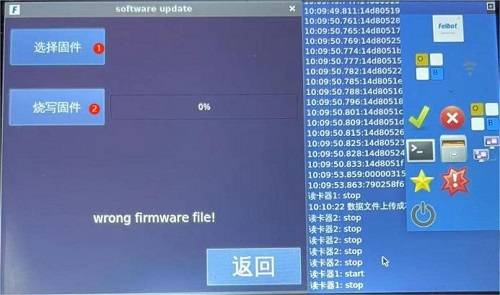

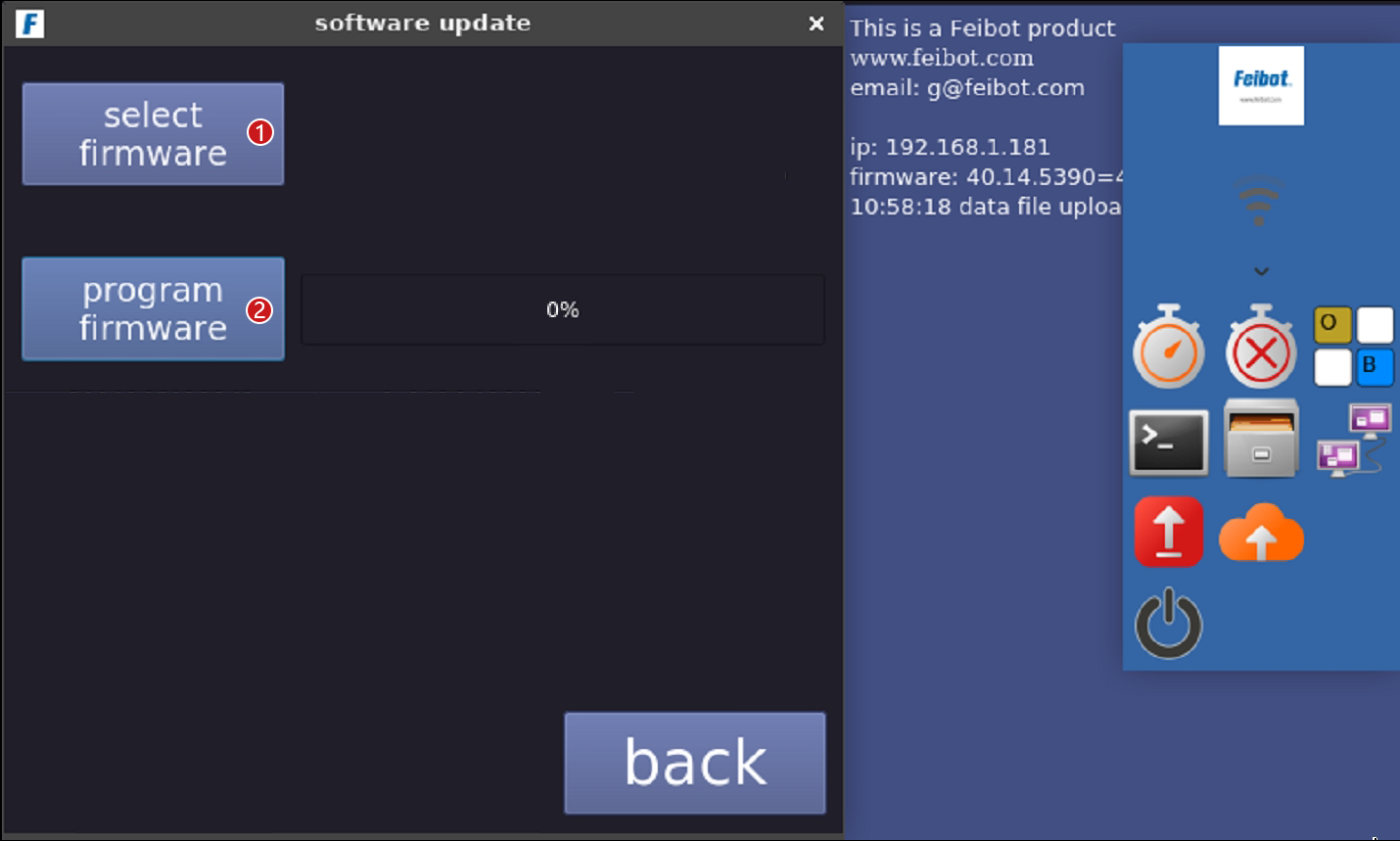

Ⅸ. Software Upgrade Interface
1. Select the firmware version which you want to update.
2. Select the firmware you need to program, click, wait for the progress bar to reach 100%, thenrestart the software.

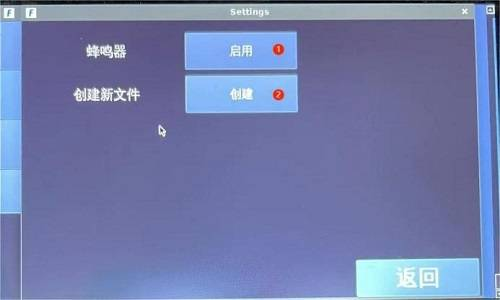

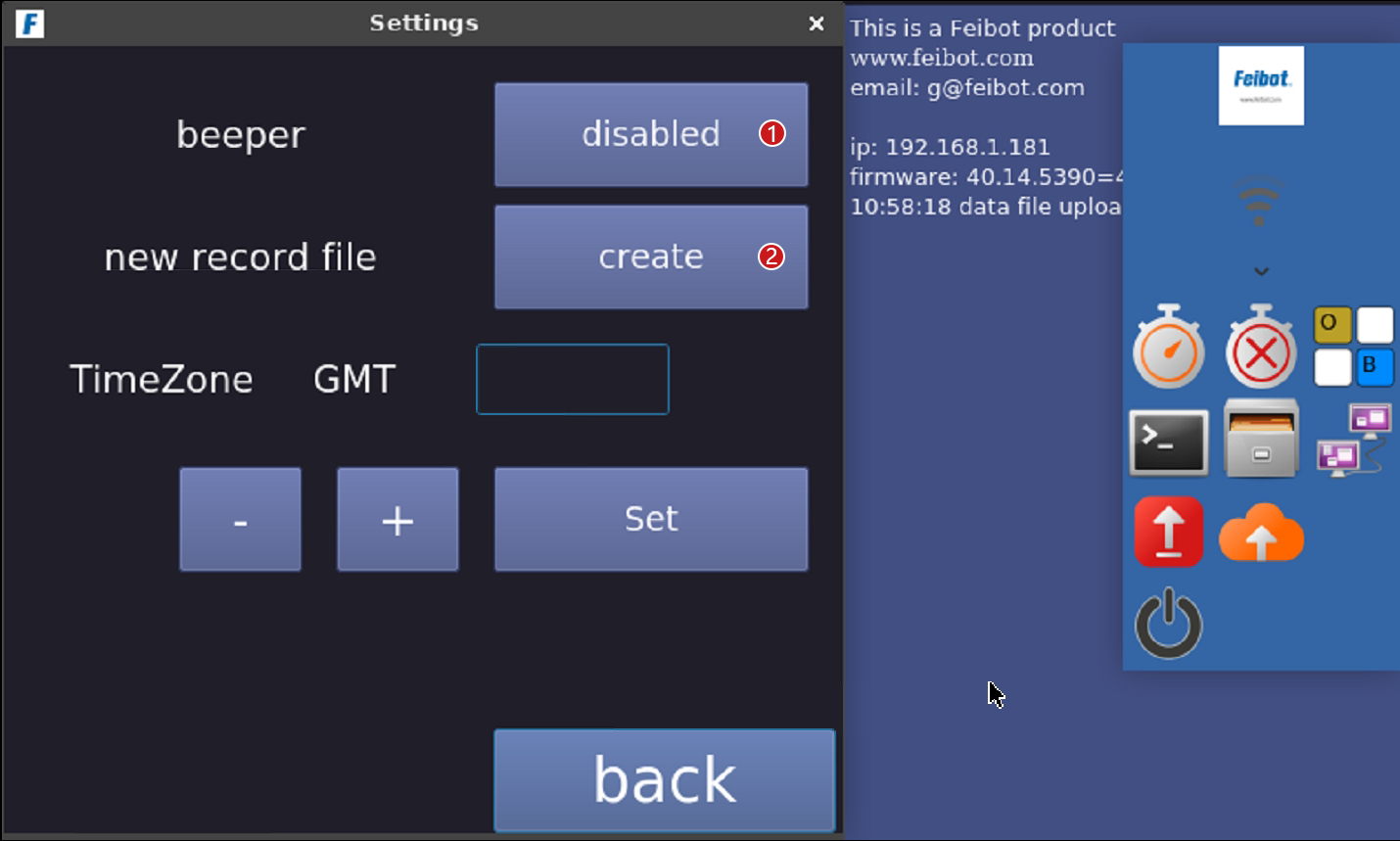

Ⅹ. Setting Interface
1. Enable/disable the beeper.
2. Create a new record file.

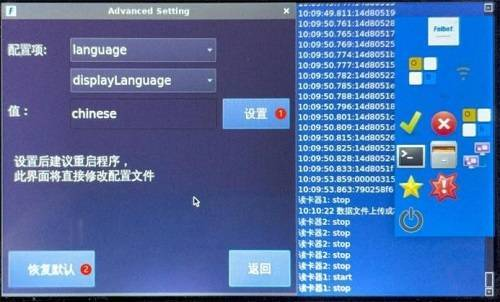

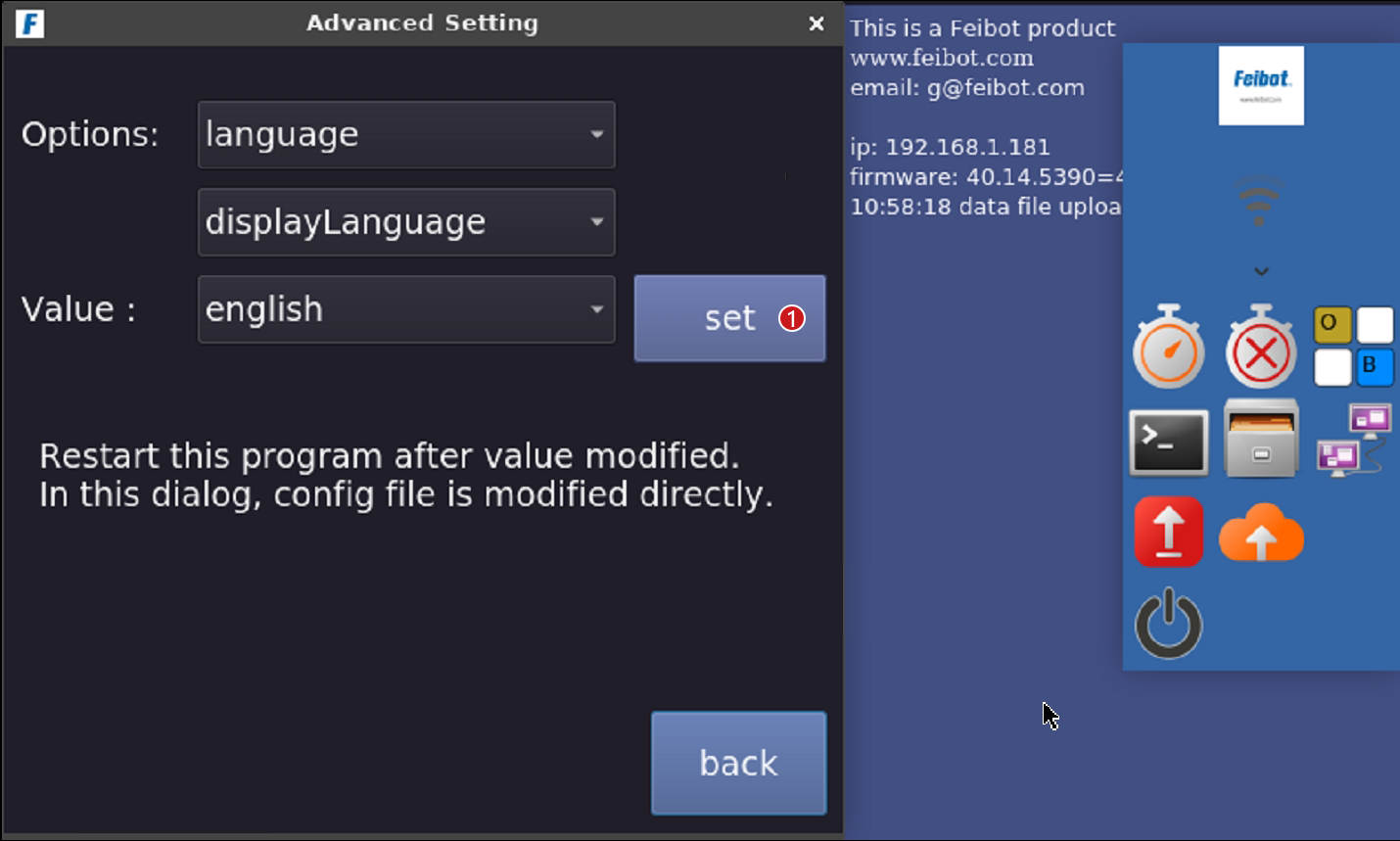

Ⅺ. Advanced Setting Interface
1. You can choose "chinese", "english", and "traditionalChinese" in three language modes.

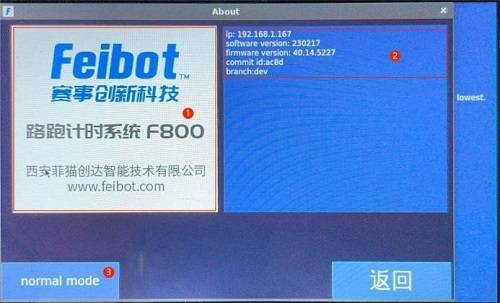

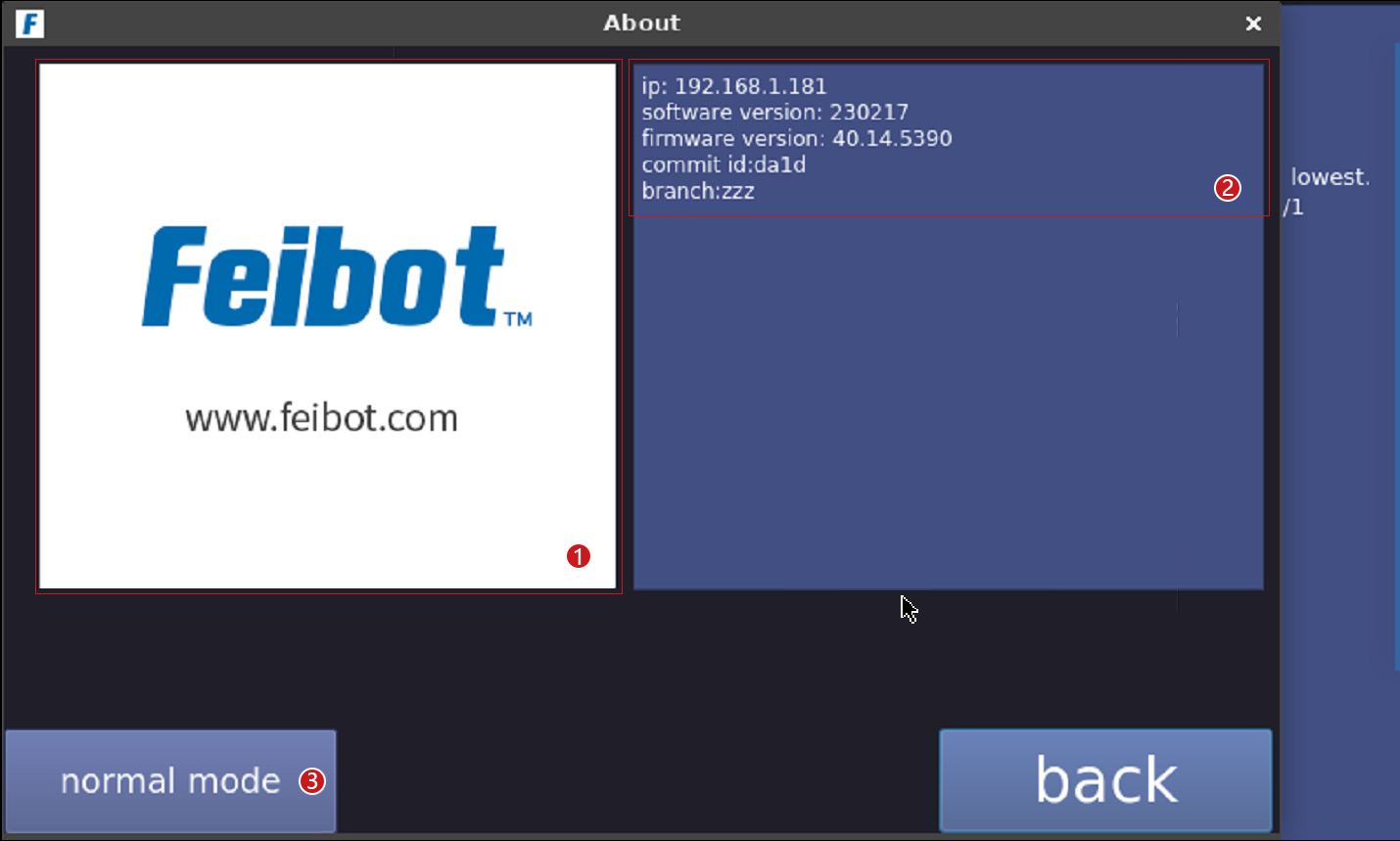

Ⅻ. About Interface
1. About our company.
2. About device lP, software version, firmware version, branch version lD and branch.
3. After clicking, you can select two modes:"Test Mode" and "Normal Mode". When updating thesoftware, select test mode, when waiting for the version to stabilize then select the normal mode.

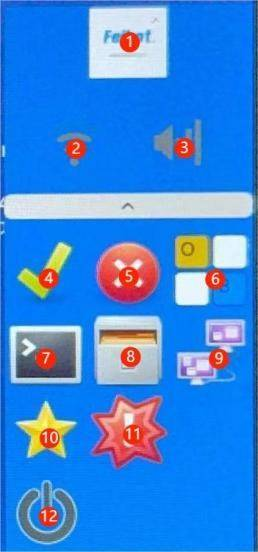

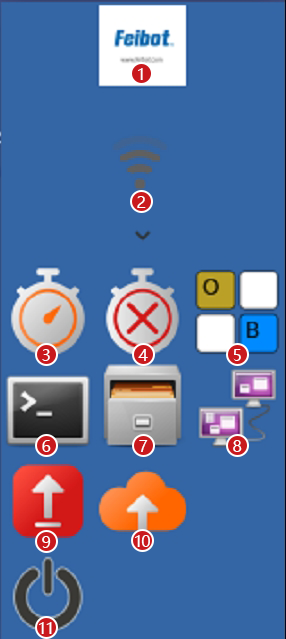

ⅩⅢ. Icon Function
1. Open the app.
2. Open the wifi connection.
3. Start the software.
4. Terminate the software.
5. Open the keyboard.
6. Open the terminal.
7. Open the storage file of this device.
8. Advanced network settings.
9. Upgrade to the latest stable version.
10. Upgrade to the latest test version.
11. Turn off the device.
