I. Usage Tutorial

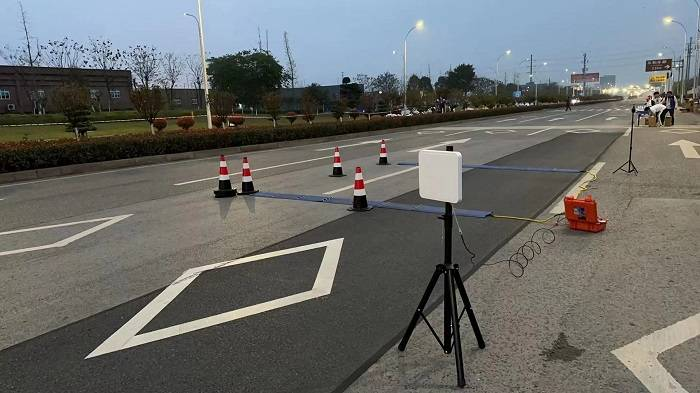

Connect the FMA3 pro mat to the F2000 hybrid reader box, then slowly unroll the mat and lay it flat on the area of the road where timing is needed.
II. Using Guide---FMA3 pro mat & Side antenna

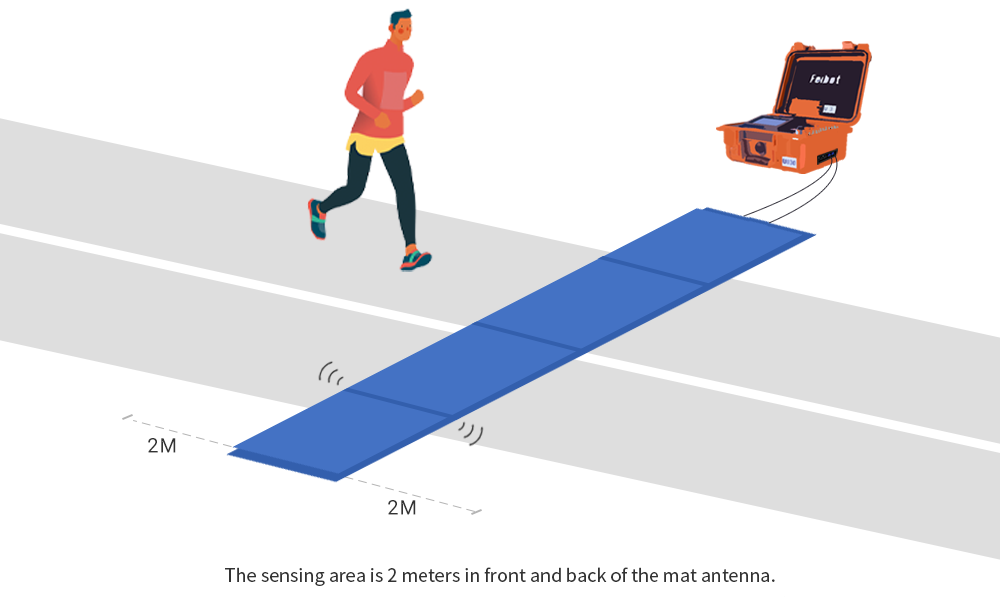

1. FMA3 Pro Mat Sensing Range

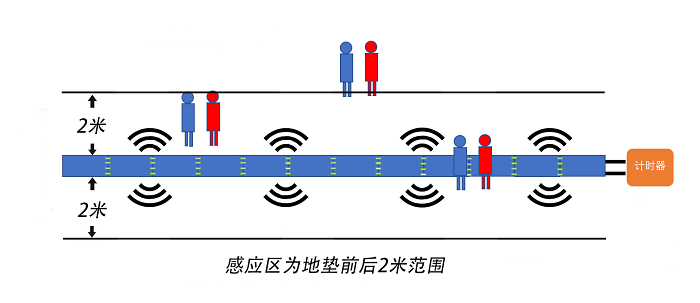

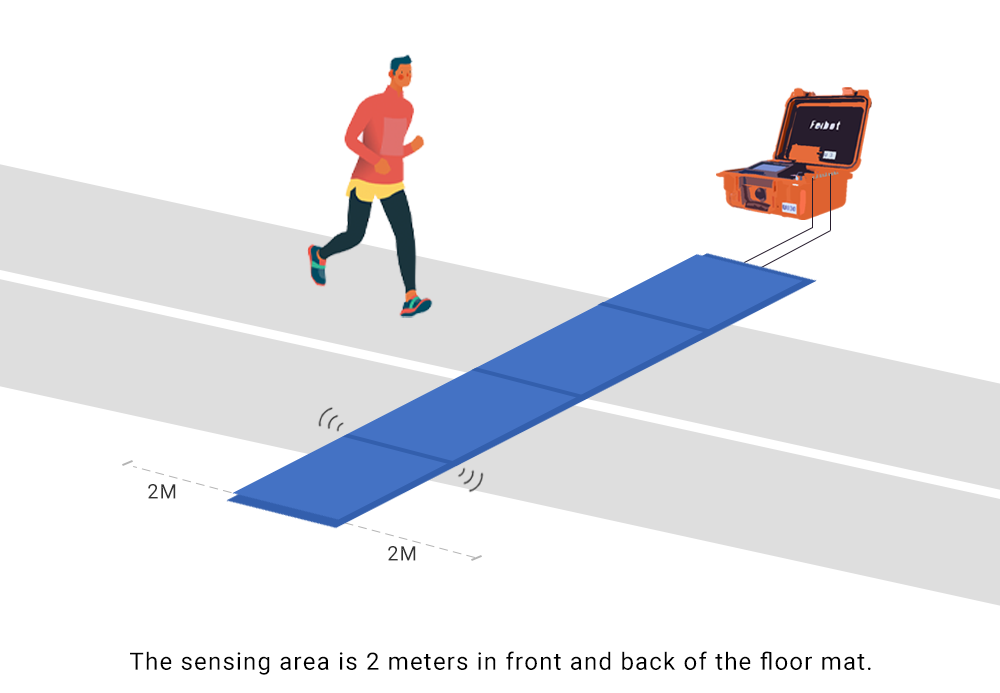

The FMA3 pro mat creates an electromagnetic induction area within a range of two meters in front and behind when it is operating. Chips within this range will be detected by the reader box. The sensing area is as follows:

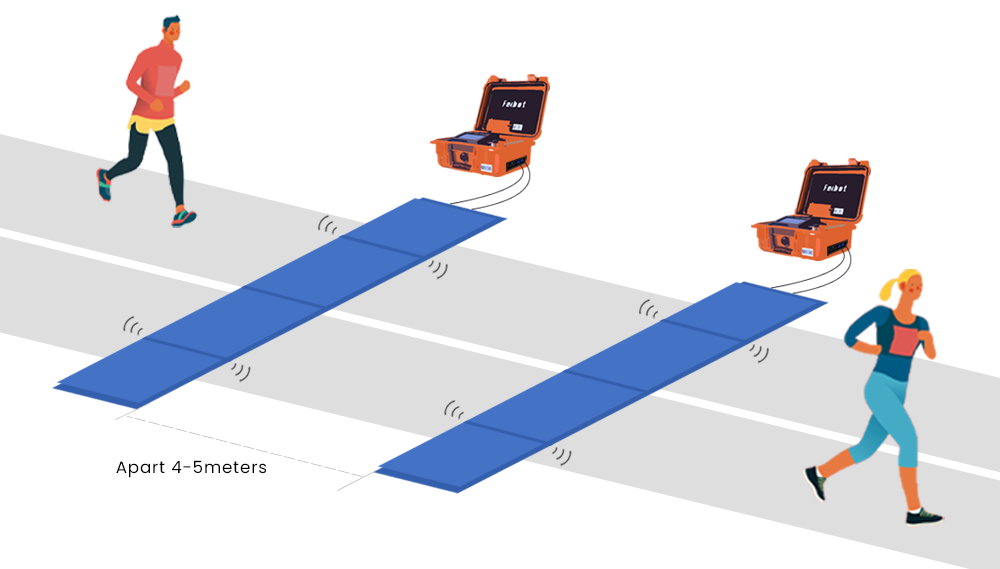

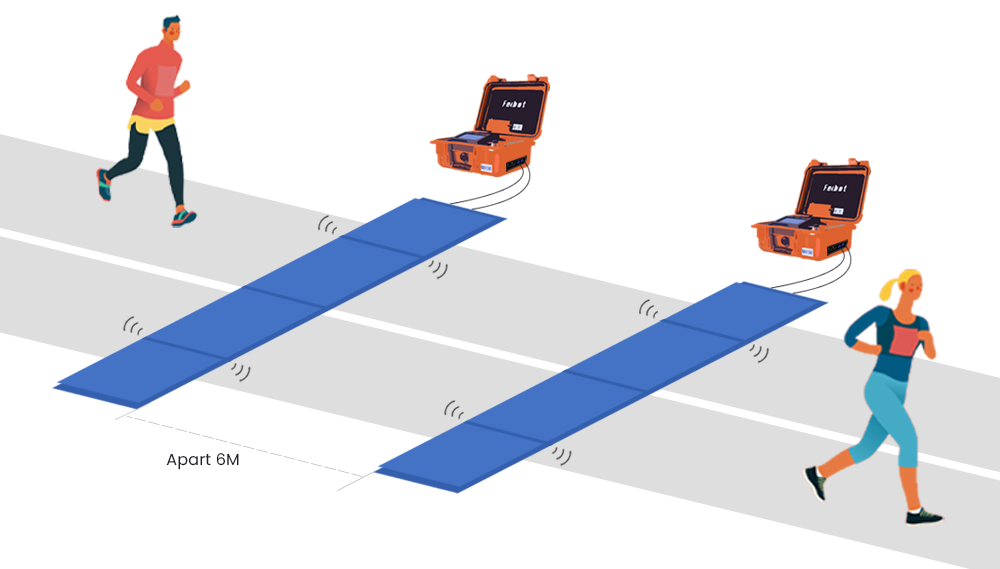

2. Use of Multiple FMA3 Pro Mat

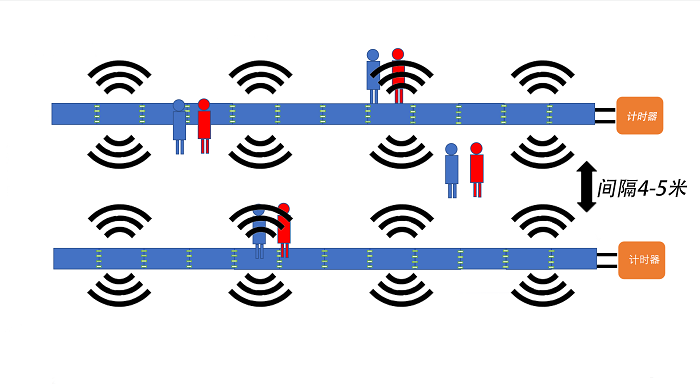

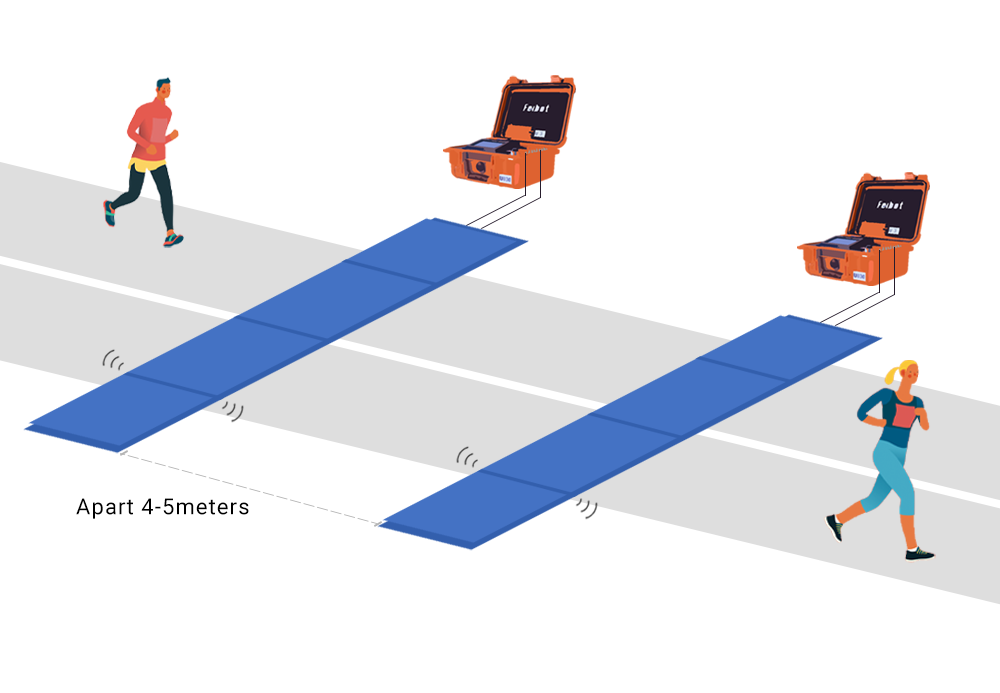

When using multiple sets of FMA3 pro mats, it is important to note that any two mats connected to different reader boxes should be spaced at least 4 to 5 meters apart to prevent electromagnetic wave interference between the mats.

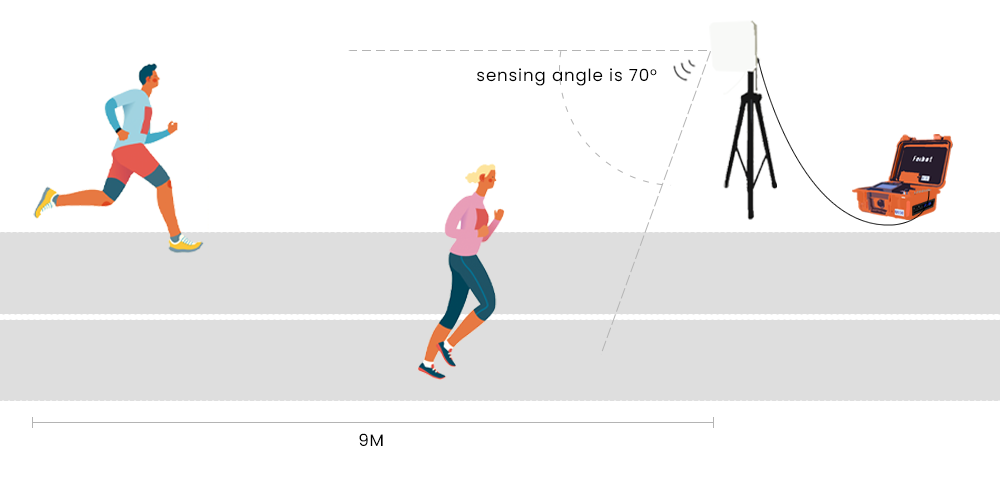

3. Sensing Range of Side Antenna

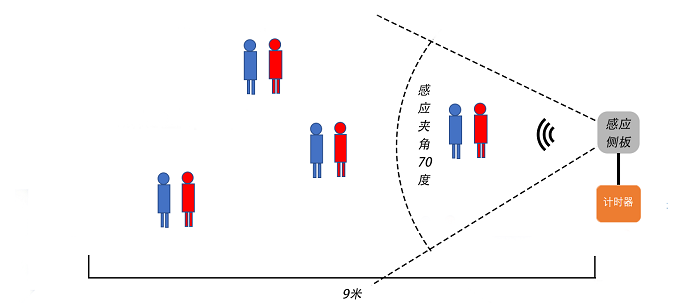

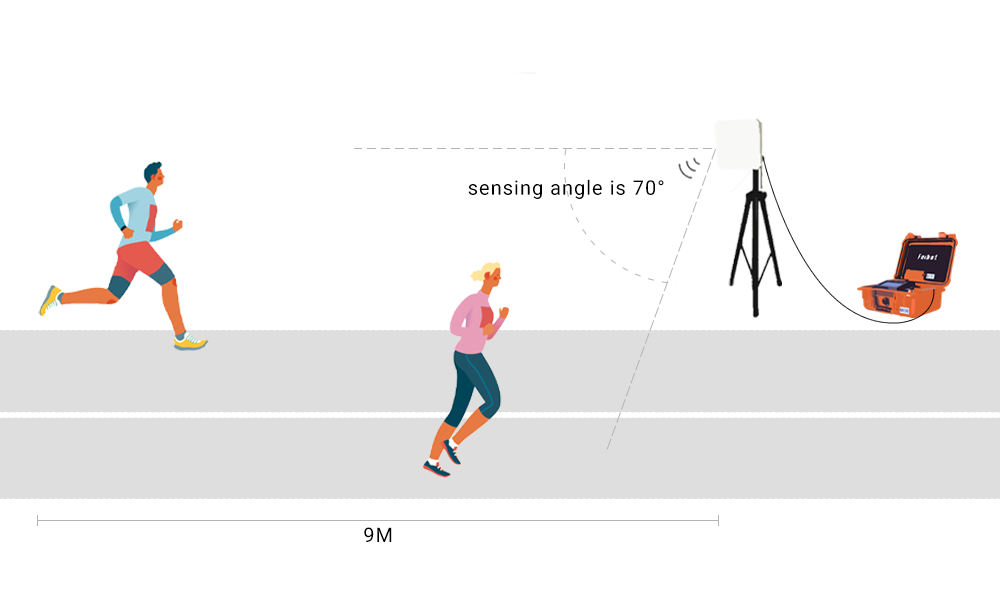

When the side antenna is operating, it forms an electromagnetic induction area with a front range of 9 meters, and a lateral radiation angle of approximately 70°. Chips within this range can be detected by the reader box. The sensing area diagram is as follows:

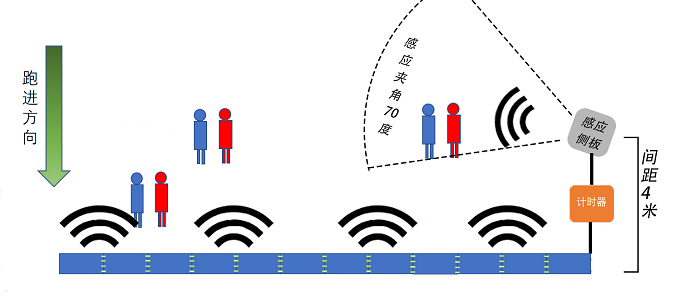

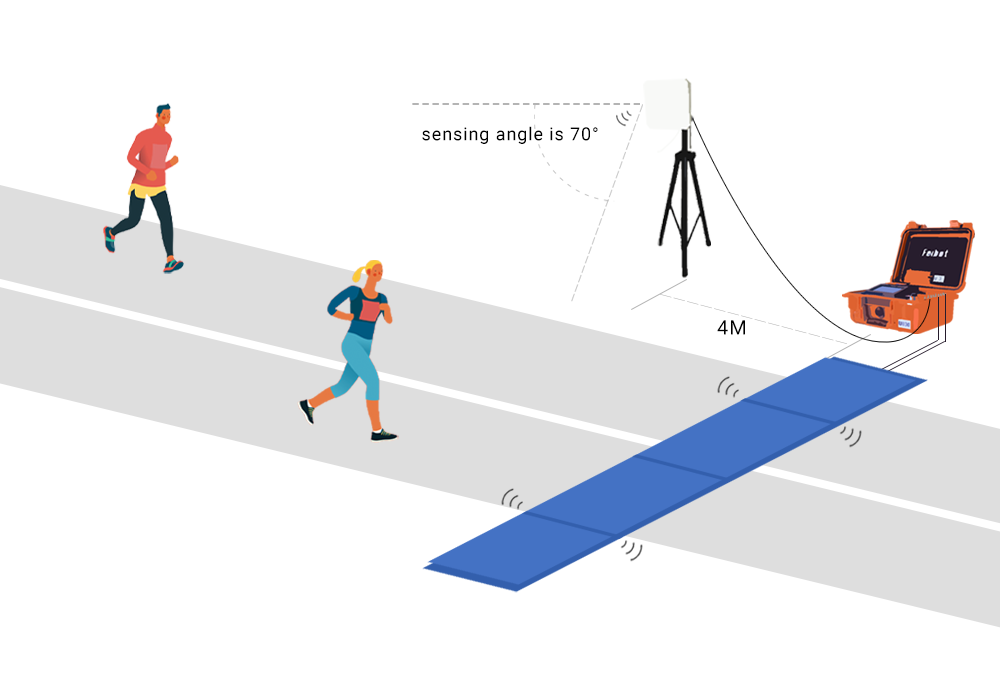

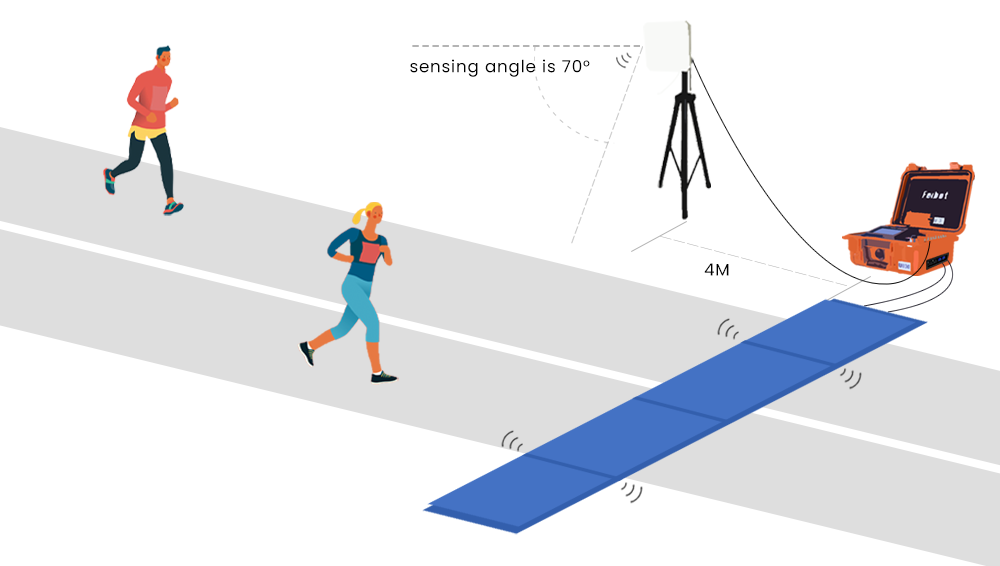

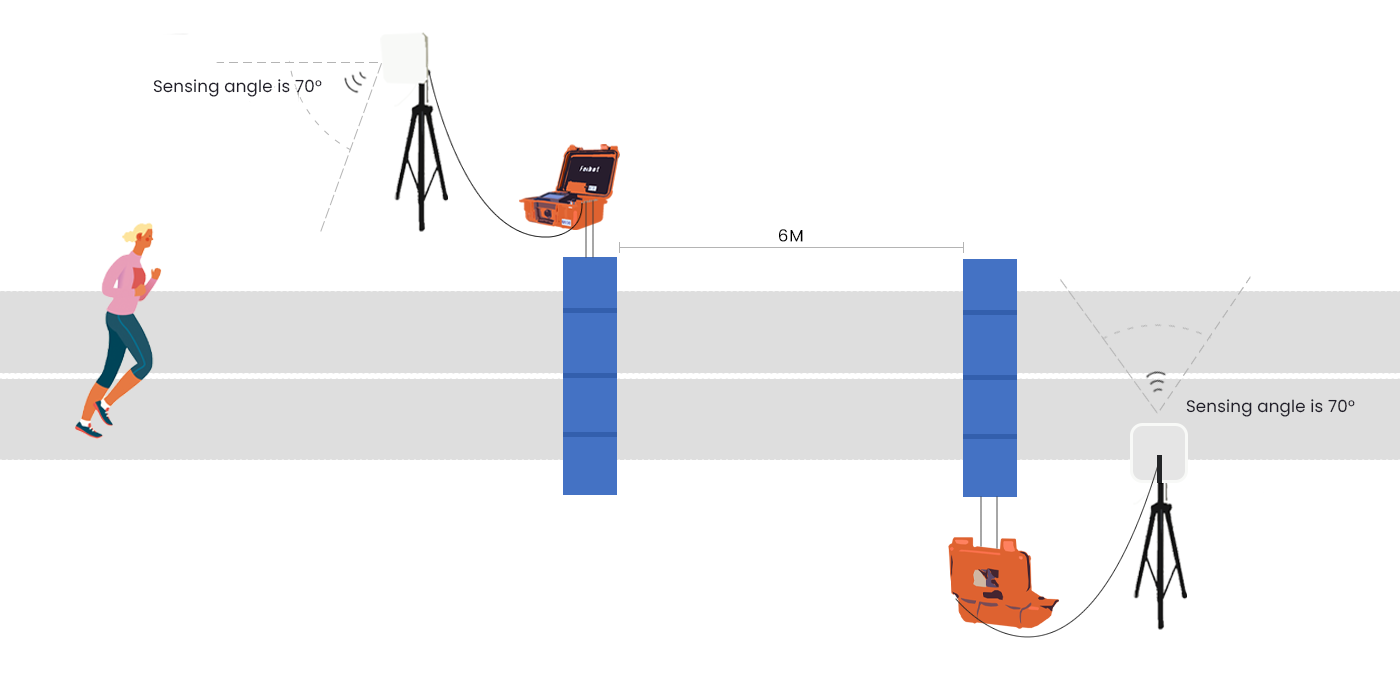

4. Combined Use of FMA3 Pro Mat and Side Antenna
