Feibot A400 reader introduction

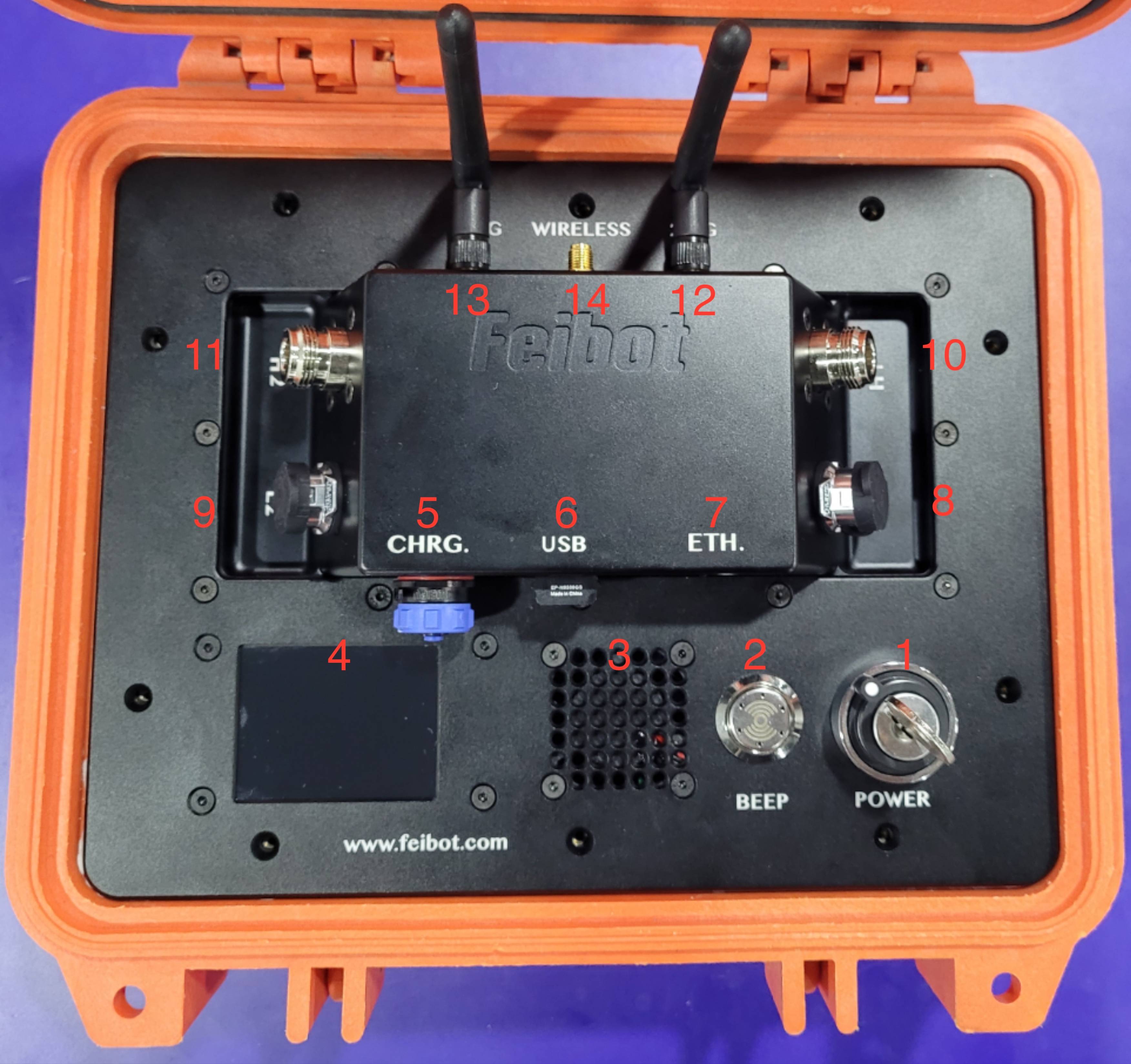

The surface of reader panel, and the function of the port etc
- The power, to put in key and turn to right to turn on reader. Turn to left to turn off the reader (After click shutdown on reader screen).
- The beep, it makes beep sound when reading tags, when it detects the loop is on, but not connected, when restarting or shut down reader. Can turn off the beep sound in reader setting.
- The fan, it cools down the reader. Will turn on/off automatically according to the temperature of the reader.
- The screen, it shows the reader info and can click on it to do all the setting for reader.
- Charging port, to charge the reader.
- USB port, to connect WIFI & 4G dongle for internet.
- Ethernet port, to connect to computer through cable.
- Low frequency port 1, to connect to cable loop. Usually connect to one cable loop is enough.
- Low frequency port 2, to connect to cable loop.
- High frequency port 1, can connect to high frequency antenna directly, or connect to cable with antenna put on tripod etc.
- High frequency port 2.
- High frequency antenna 3, extra integrated antenna on reader, for better signal transmission.
- High frequency antenna 4.
- Wireless antenna, for wireless time sync among readers etc.
