Introduction

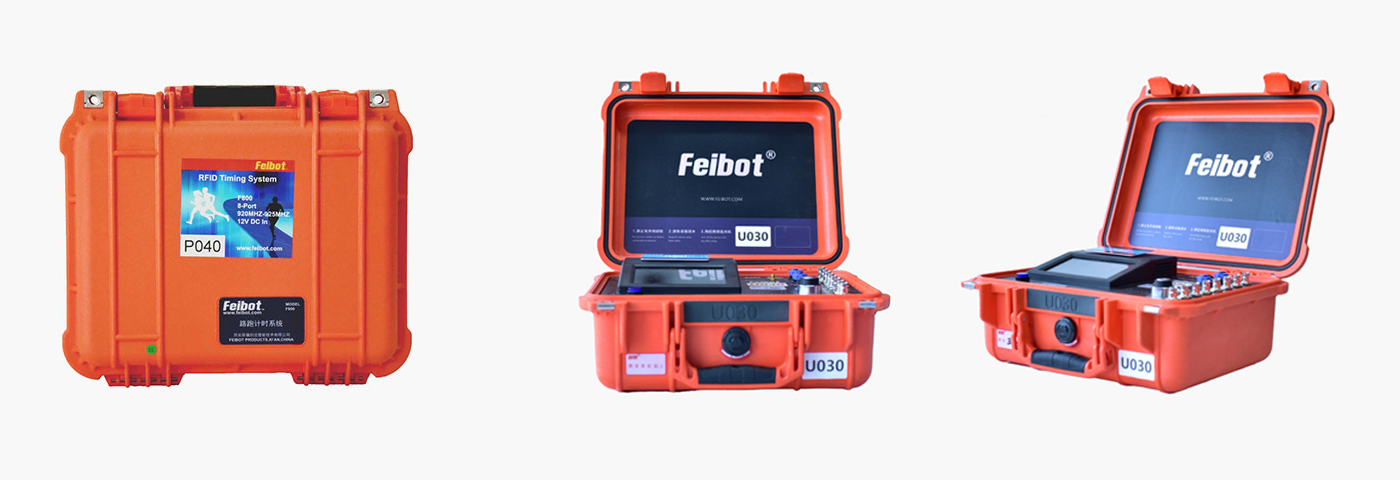

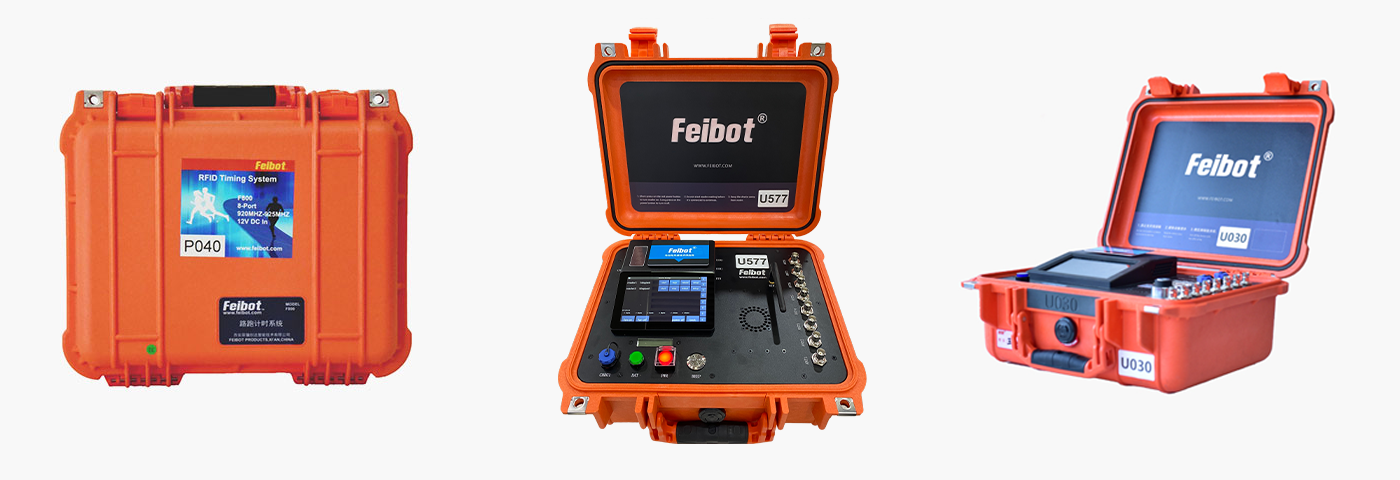

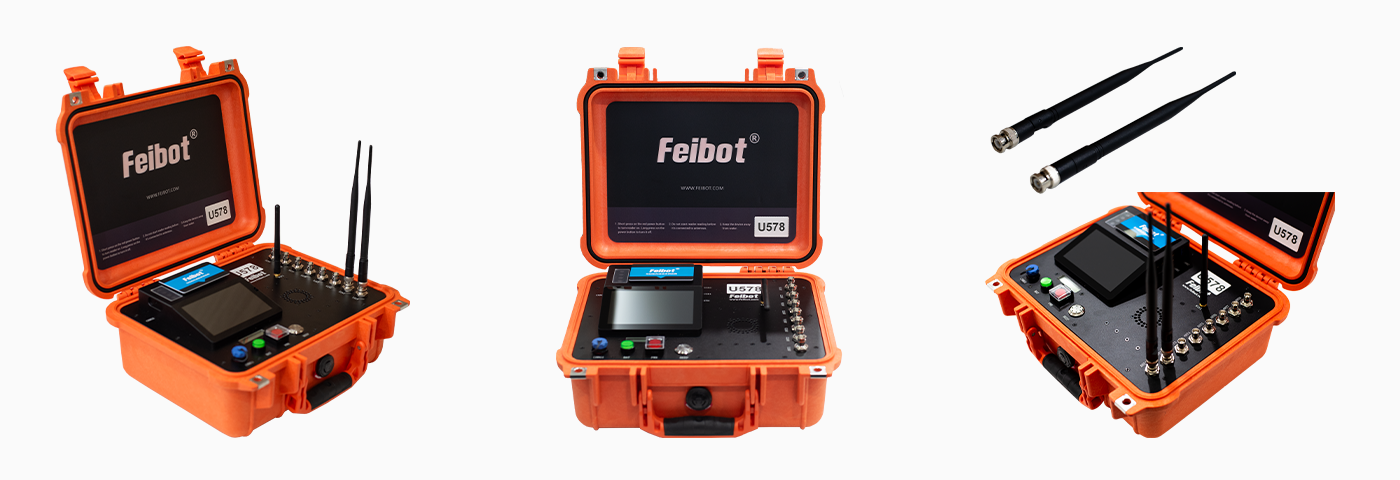

The F800 UHF Device is a self-developed road running timing system and is widely used in various road running events such as marathons, cross-country races, physical fitness tests, etc. The device uses a touchable and graphical interface, and the operation is intuitive and flexible. Connecting with the Yingpinjie E710 reader and writer module to ensure high sensitivity, in the same time reducing energy consumption, and it also has powerful performance. The single device supports 8-channel reading and is equipped with a folding mat antenna, which is wear-resistant, pressure-resistant, slip-resistant, and can be folded.It is simple to install and can withstand heavy crushing.

Ⅰ. Features

1. Embeding 2 high-performance UHF reading and writing heads, low energy consumption and high sensitivity.

2. A single machine can support a set of 8-meter FMA2 mat antennas.

3. Supporting plate antennas, and the reading and writing distance can reach 15 meters.

4. Embeding large-capacity lithium battery, can work for more than 10 hours at full load and standby for more than 40 hours.

5. The United States imported military-grade pelican box, which is sturdy and durable.

6. Imported advanced resin floor mats are more wearable, environmental, beautiful and without any odor.

7. Combined with the FMA2 mat antenna, it is simple to install and resistant to small car crushing.

8. Dedicated highly penetrating wireless data link, synchronizing the internal clocks of all nearby devices with one click.

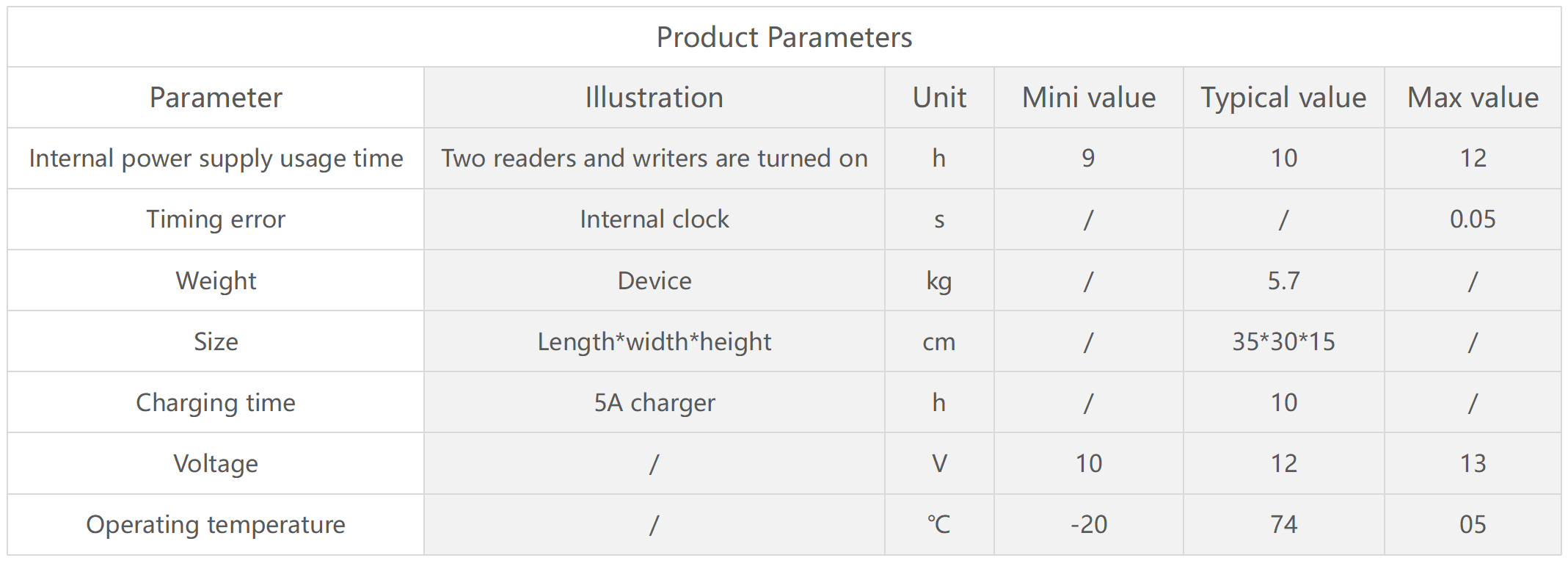

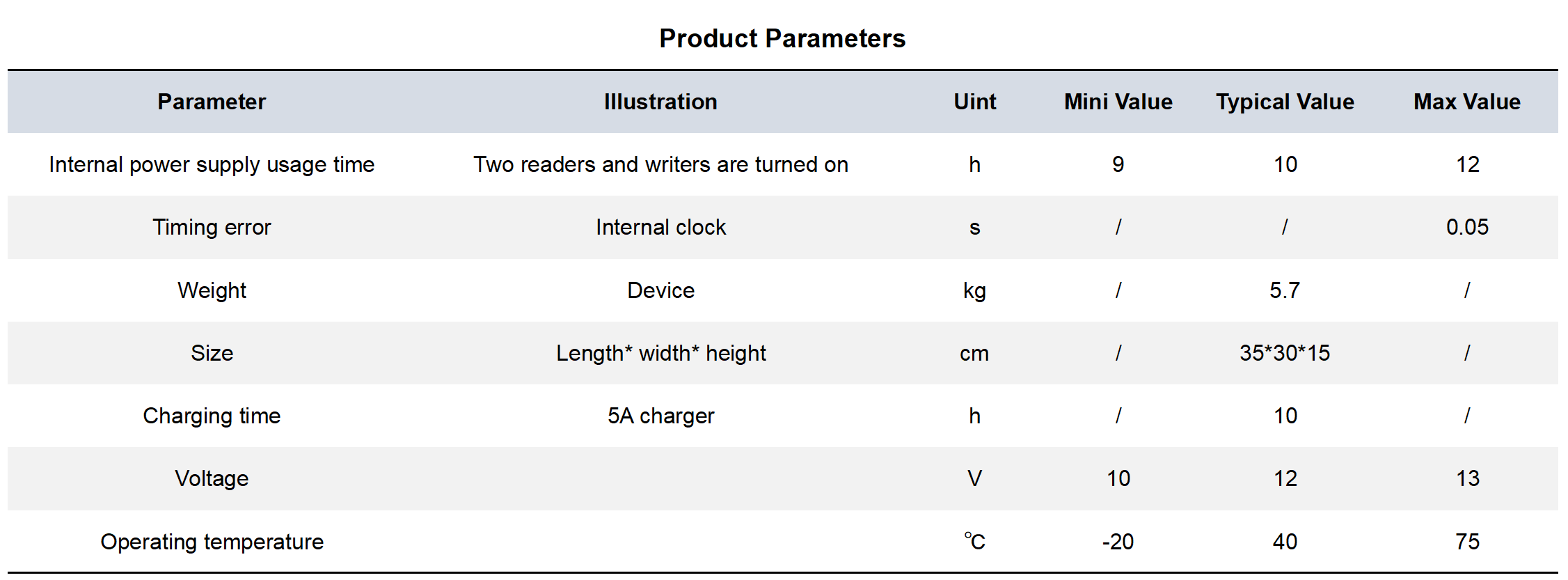

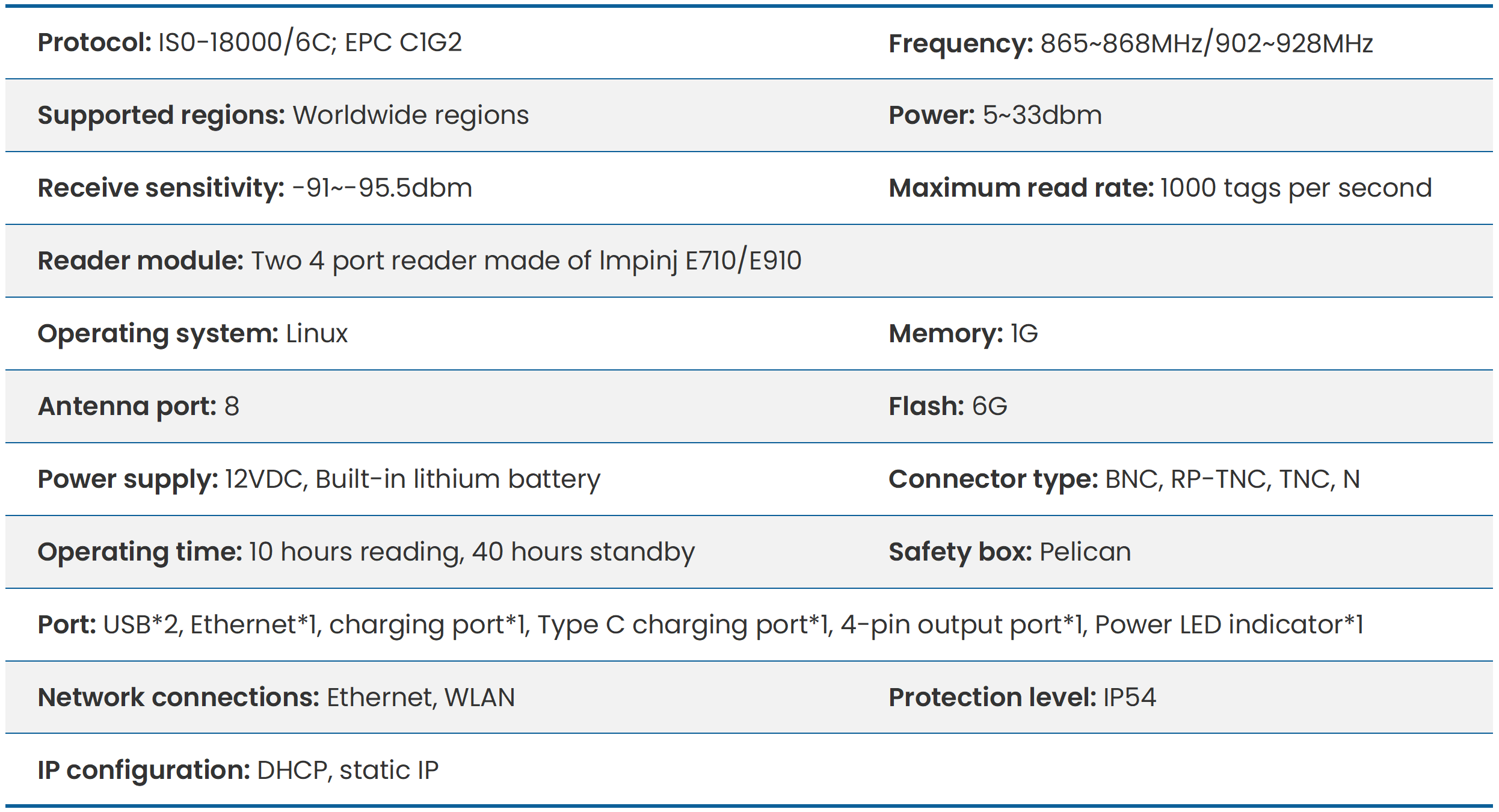

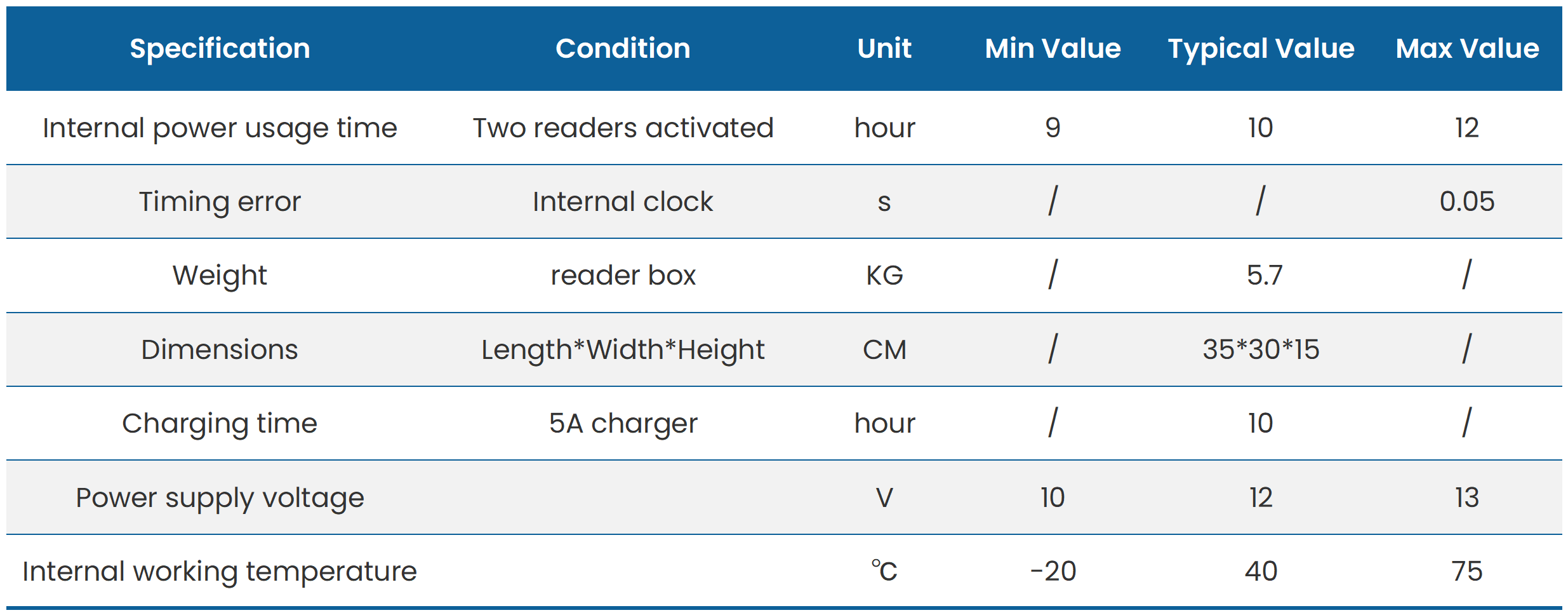

Ⅱ. Specification

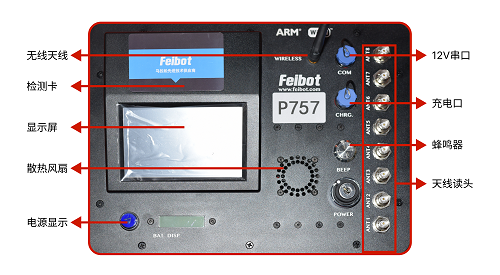

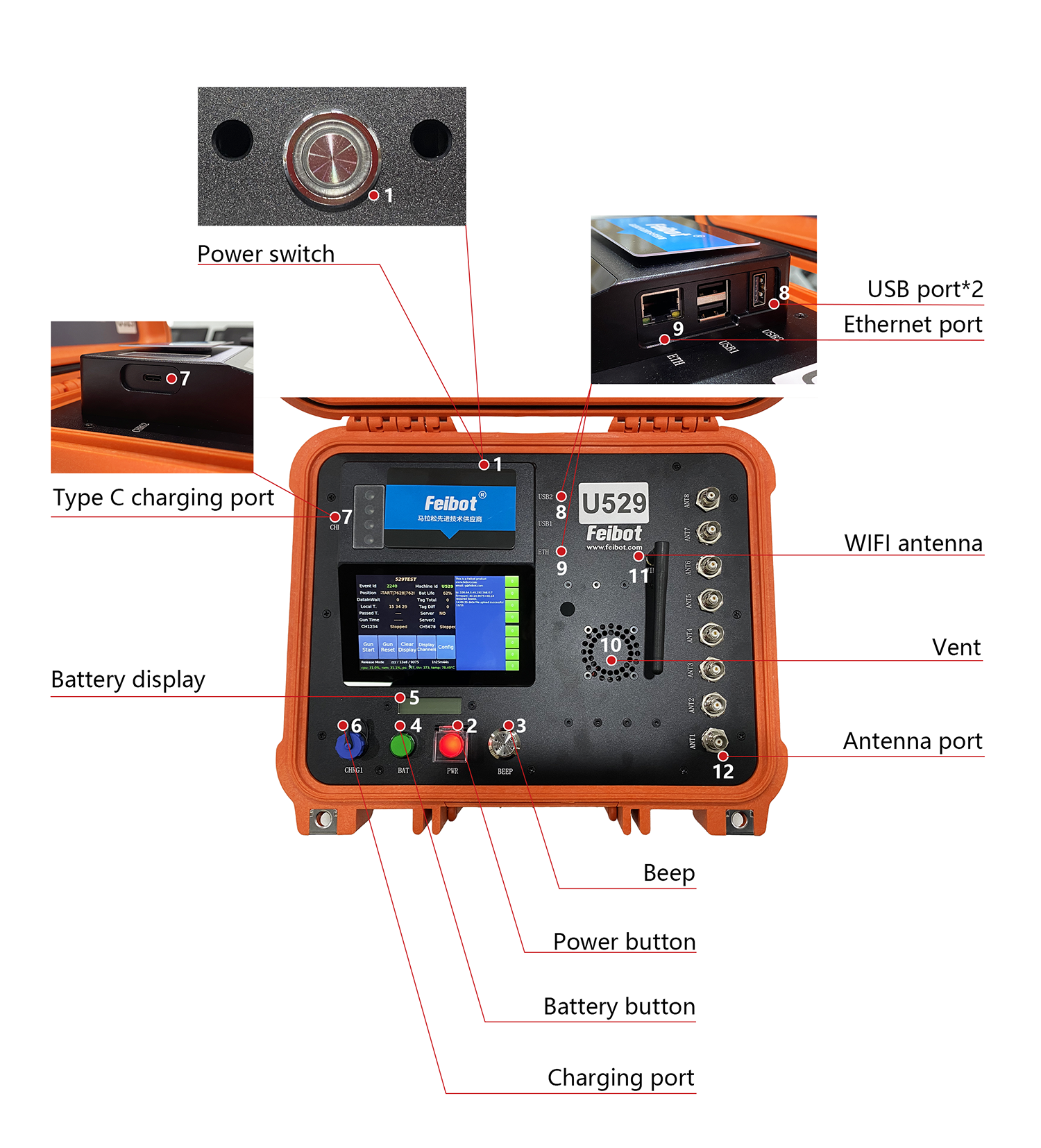

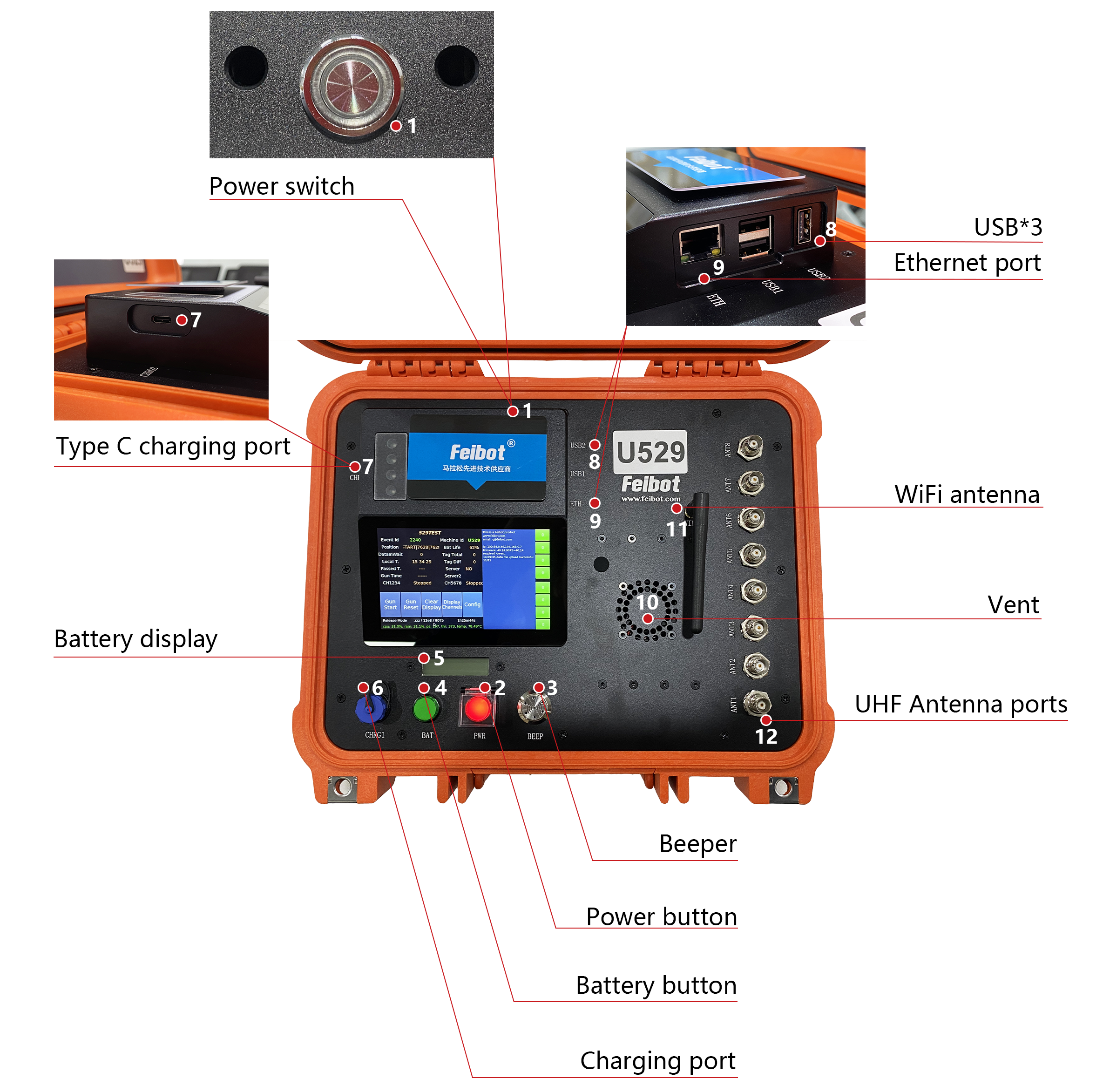

Ⅲ. Device Panel

1. Screen

Displays the event name, device point name, competition duration, software function operation, etc.

2. Test Card

Check whether the floor mat antenna and plate antenna can be read normally.

3. Power Display Module

By turning on and off the power display button, check the power of the device when the device is not turned on.

4. Wireless Antenna

Receive and transmit wireless timing signals so that the reference time of multiple devices is consistent.

5. Charging Port

Used to charge the device.

6. COM Port

For devices debugging, outputting 12V DC power supply.

7. Buzzer

Reading a tag or some important instructions is to issue a prompt.

8. Key Switch

9. BNC Connector

Used to connect FMA2 mat antenna and panel antenna.

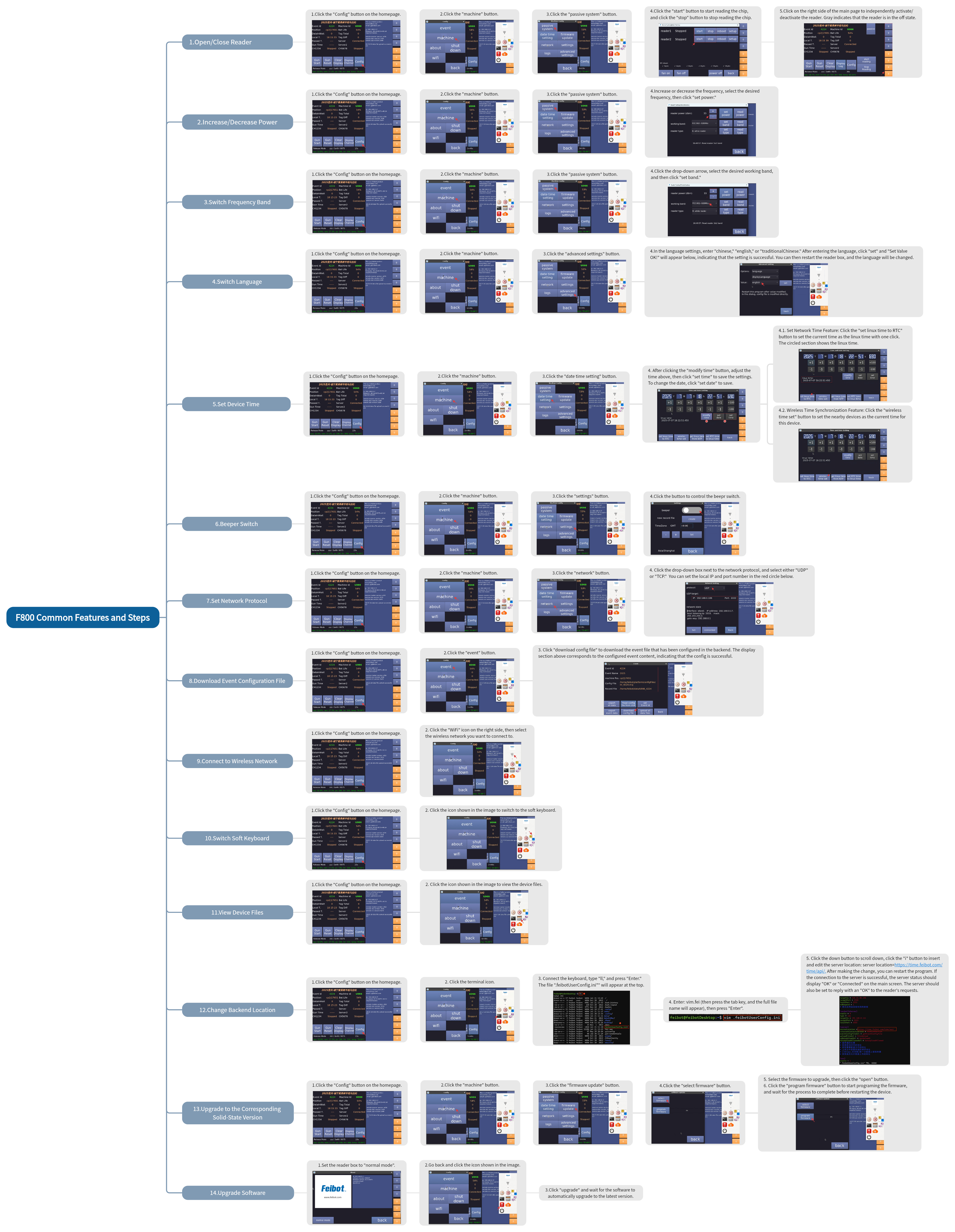

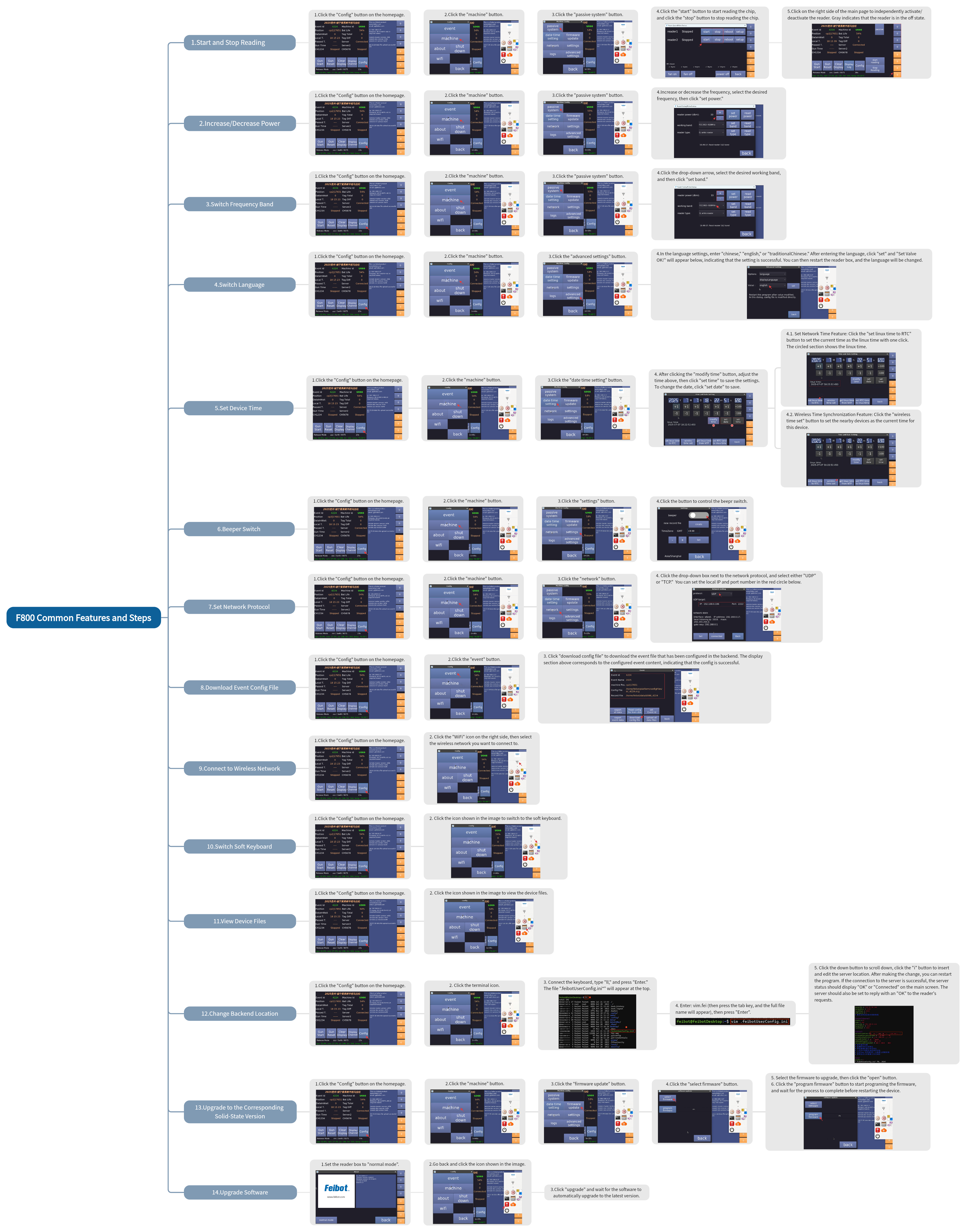

Ⅳ. Common Functions and Steps
