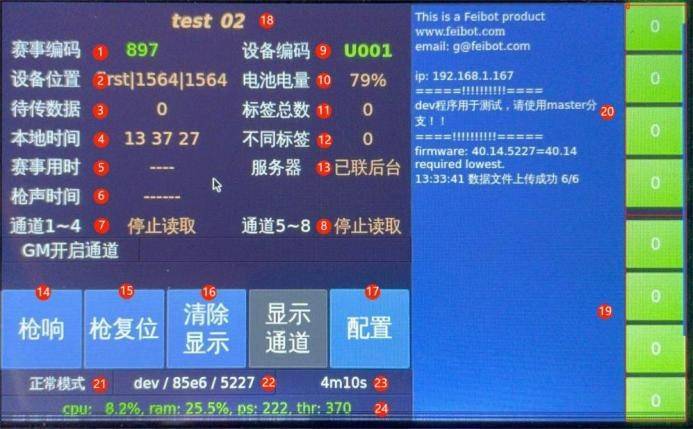

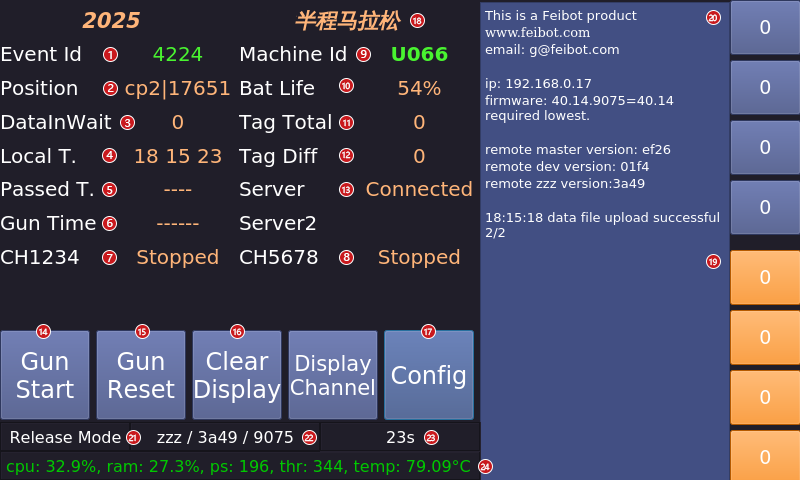

I. Main Interface
- Event Id: After downloading the event configuration file from the Run8 Cloud backend, the s-creen will display the event Id of the current event associated with the device.
- Position: The position information of the device as configured in the network backend.
- DatalnWait: The total number of data entries that have been read by this device but have not yet been uploaded to the backend.
- Local T.: The current time (hours, minutes, seconds) of the device. Be sure to calibrate the tim-e before the event starts.
- Passed T.: The current duration of the ongoing event.
- Gun Time: The time the starting gun was fired for the current event.
- CH1234: The status of channels 1, 2, 3, and 4 controlled by Reader 1.
- CH5678: The status of channels 5, 6, 7, and 8 controlled by Reader 2.
- Machine Id: The machine number of the current device.
- Bat Life: The current battery life of the device.
- Tag Total: The total number of tags read by the current device.
- Tag Diff: The number of different tags detected by the current device.
- Server 1/2: Displays the current network status of the device. There are three statuses: "Not Connected", "Connected but Not Linked to Backend", and "Connected to Backend".
- Gun Start: Click to start recording the starting gun time for the current event.
- Gun Reset: Click to reset the starting gun time.
- Clear Display: Click to clear all content displayed on the right side of the screen.
- Config: Click to open the config page.
- Event Name: Displays the name of the event to which the current device is assigned.
- Channel 1-4 Status: The status of channels 1, 2, 3, and 4 controlled by Reader 1, listed from b-ottom to top. The number shown indicates the total number of tags read by each channel. Cl-ick to open/close channel reading. Green indicates the channel is active, while gray indicates it is off.
- Channel 5-8 Status: The status of channels 5, 6, 7, and 8 controlled by Reader 2, listed from b-ottom to top. The number shown indicates the total number of tags read by each channel. Cl-ick to open/close channel reading. Green indicates the channel is active, while gray indicates it is off.
- Release Mode: Displays the current mode of the device, which can be either "Normal Mode" or "Test Mode".
- Software/Firmware Version: Displays the current version number of the device's software/firm-ware.
- Device Uptime: Displays the duration of time the device has been powered on.
- Device Resource Usage: Displays the CPU and RAM usage, along with the number of process-es and threads currently running on the operating system.

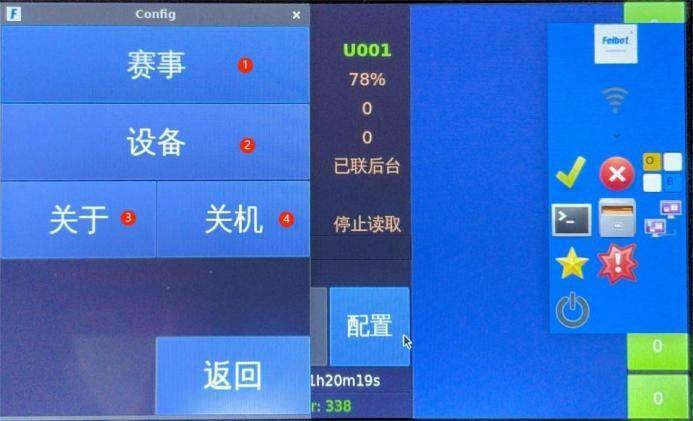

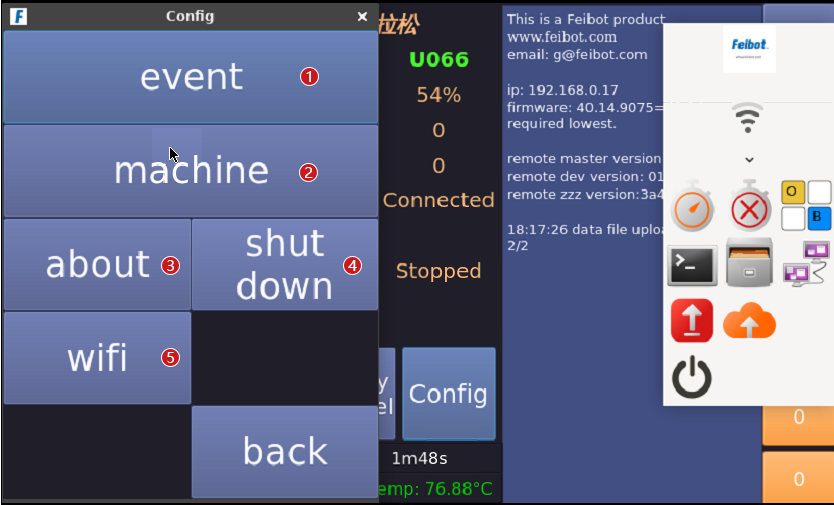

II. Config Interface
- Open the "event" interface.
- Open the "machine" interface.
- Open the "about" interface.
- After clicking, you can select "shut down" the device or "restart" the device.
- Open the "WiFi" interface.

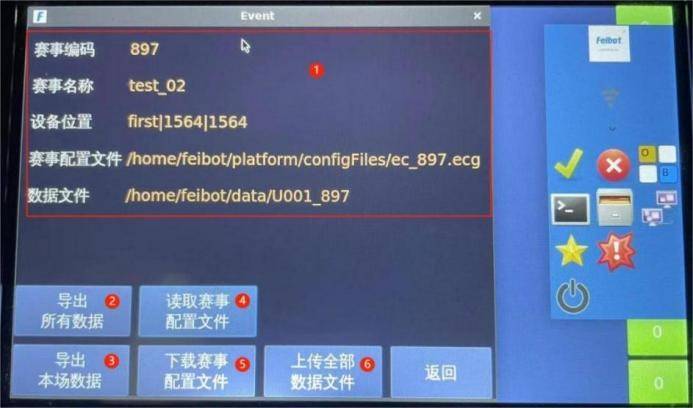

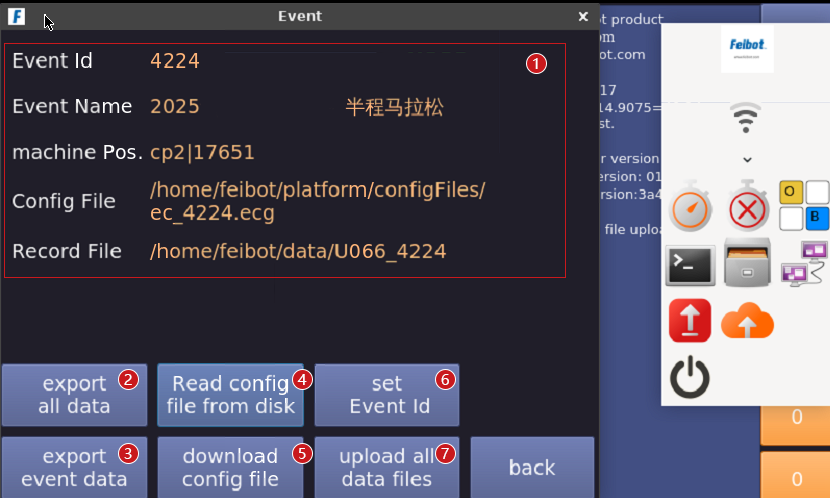

III. Event Interface
- Display information about the current event and the storage position of the event config file and data file in the backend.
- Export all the data of the events timed by this device.
- Export the data of the current event.
- Read the config file of the current event from the USB drive.
- Download the event config file (this button needs to be clicked before the event to download the event config file).
- Set the event Id.
- Upload all data files.

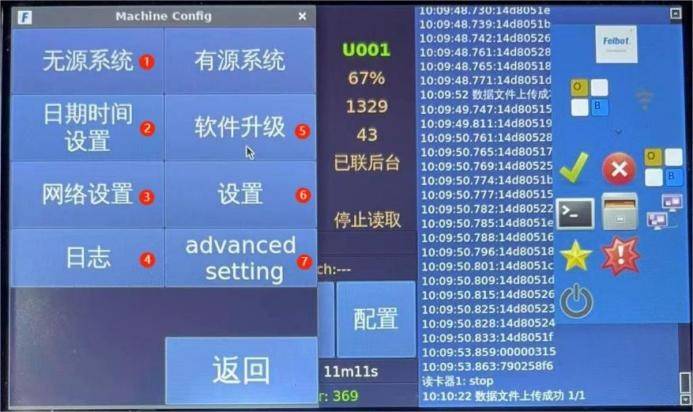

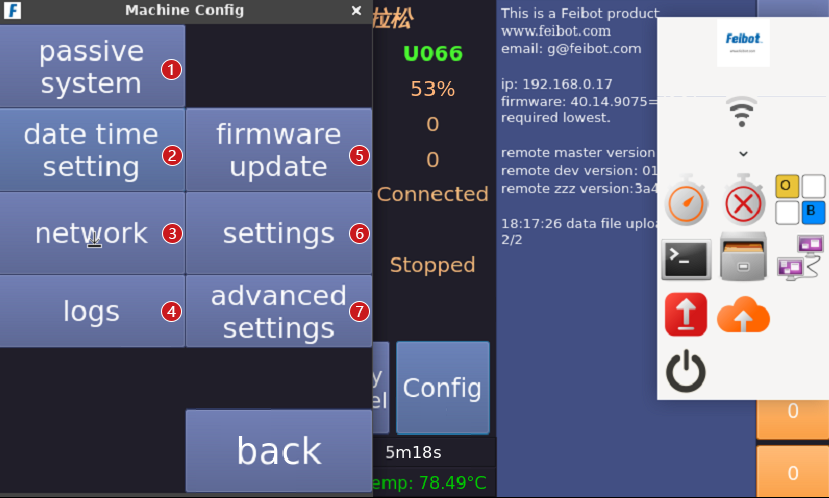

IV. Machine Config Interface
- Open the "passive system" interface.
- Open the "date time setting" interface.
- Open the "network" interface.
- Open the "logs" interface.
- Open the "firmware update" interface.
- Open the "settings" interface.
- Open the "advanced settings" interface.

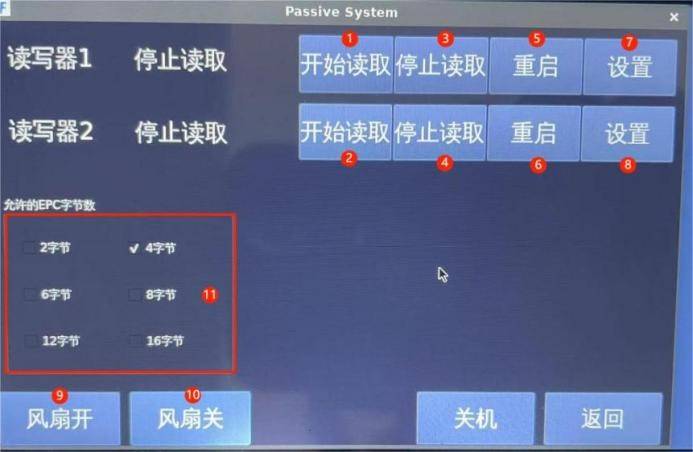

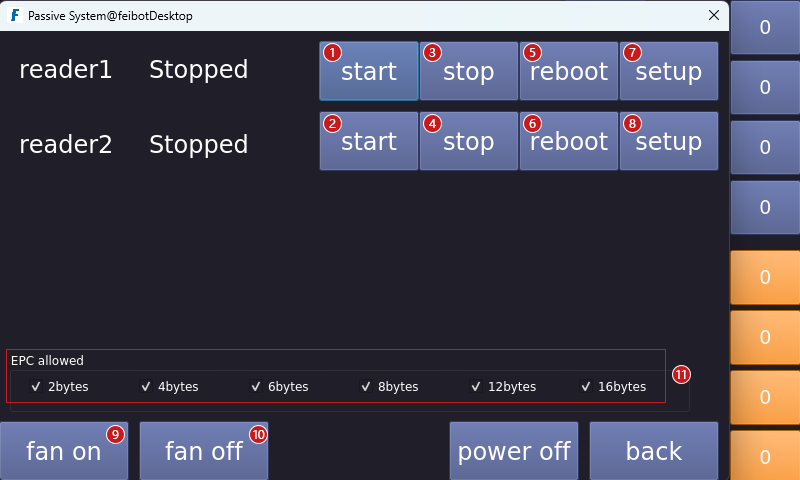

V. Passive System Settings Interface
- Turn on reader 1 to start reading data.
- Turn on reader 2 to start reading data.
- Turn off reader 1 to stop reading data.
- Turn off reader 2 to stop reading data.
- Reboot reader 1.
- Reboot reader 2.
- Turn on the settings interface for Reader 1.
- Turn on Reader 2 Settings: Open the settings interface for Reader 2.
- Turn on the fan.
- Turn off the fan.
- Select the number of EPC bytes allowed by the reader.

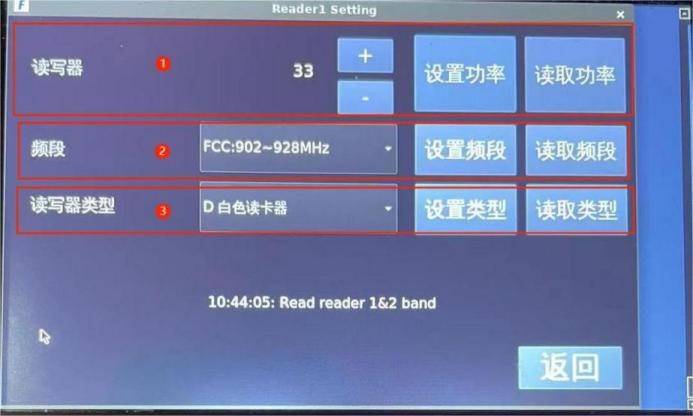

VI. Reader Setting Interface
- Increase or decrease the frequency, select the desired frequency, then click "set power."
- Click the drop-down arrow, select the desired working band, and then click "set band."
- Click the drop-down arrow, select the desired reader type, and then click "set type."

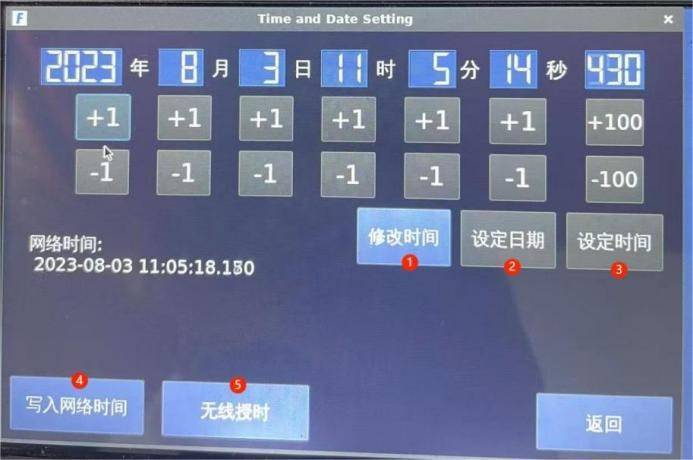

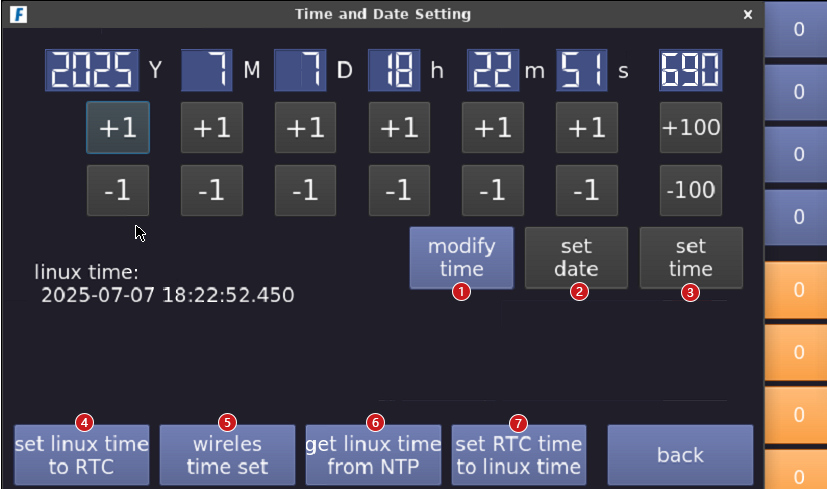

Ⅶ. Date and Time Settings Interface
1. Modify time manually , click "+1" and "-1" above to adjust to the correct time.
2. If you modify the date manually, you need to click "set date" button.
3. If you modify the time manually, you need to click "set time" button.
4. Set linux time to RTC.
5. Wireless time set.
6. Get linux time from NTP.
7. Set RTC time to linux time.

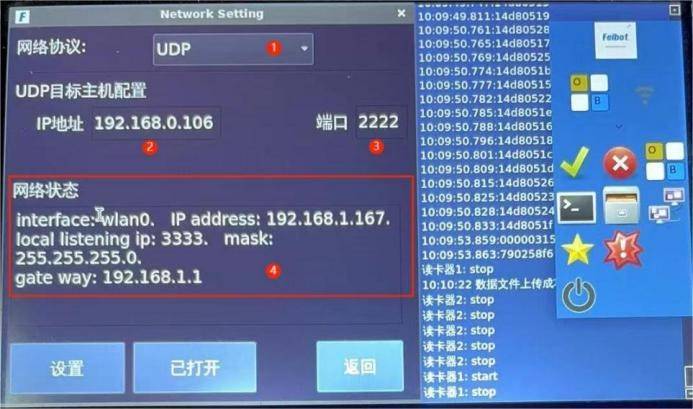

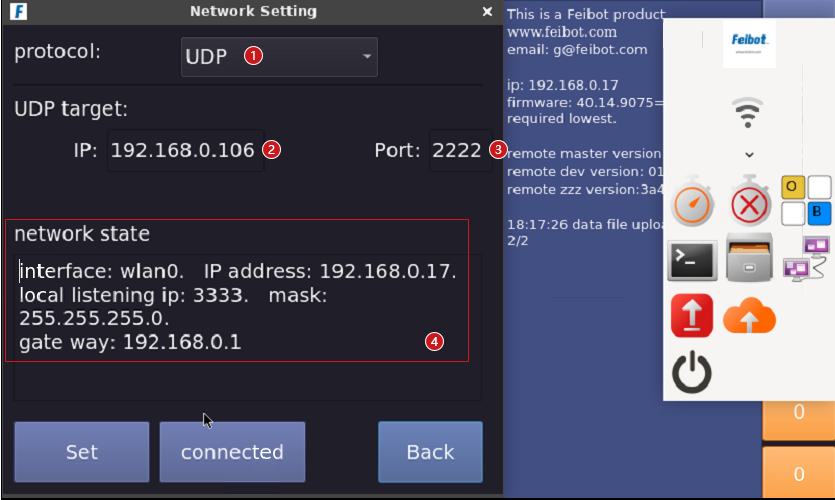

Ⅷ. Network Settings Interface
1. Set up networking protocol, you can set two networking protocols: "UDP" and "TCP".
2. Set the IP address of UDP target.
3. Set the port number of UDP target.
4. Display the network state of the reader.

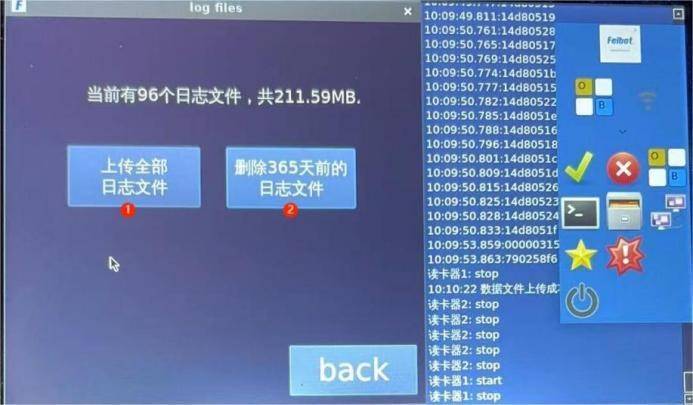

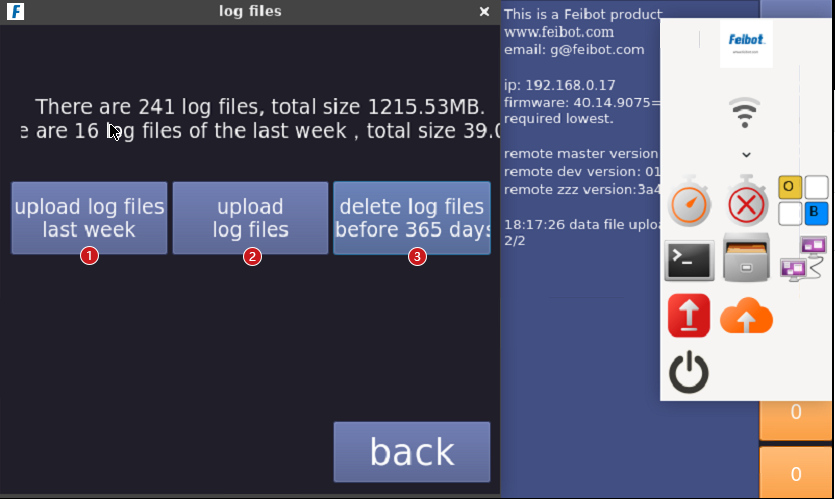

Ⅸ. Log Interface
1. Upload log files last week.
2. Upload all log files.
3. Delete the log files before 365 days.

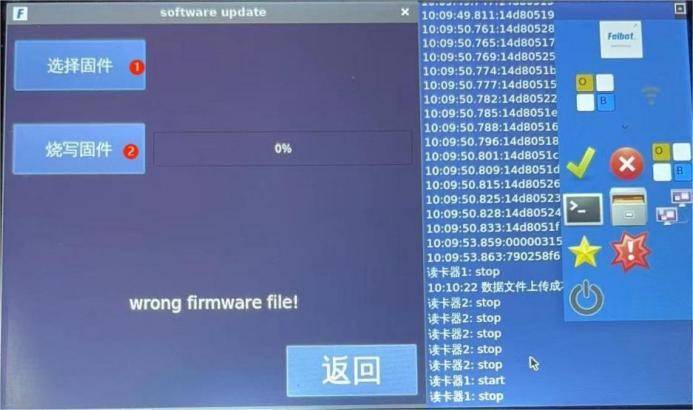

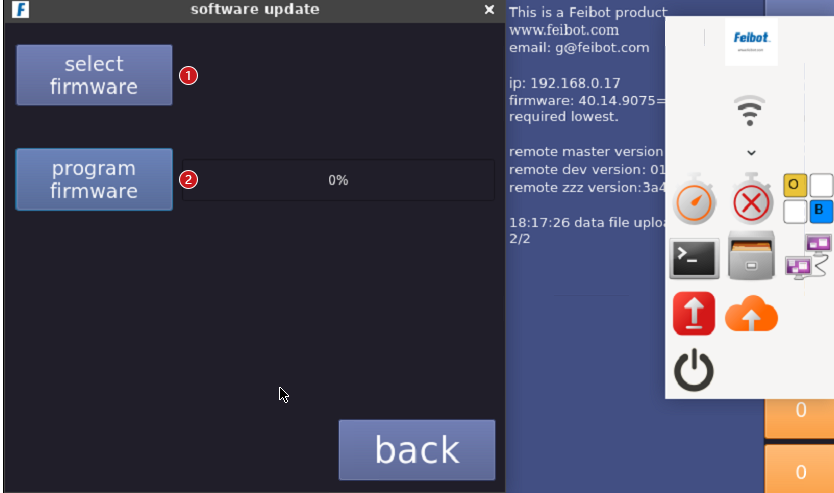

Ⅹ. Software Upgrade Interface
1. Select the firmware version which you want to update.
2. Select the firmware you need to program, click, wait for the progress bar to reach 100%, then restart the software.

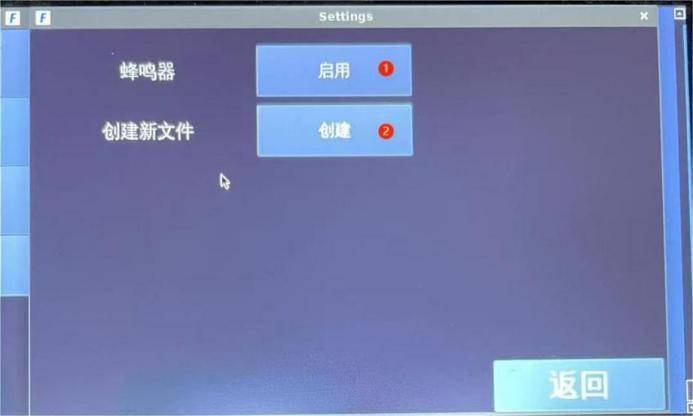

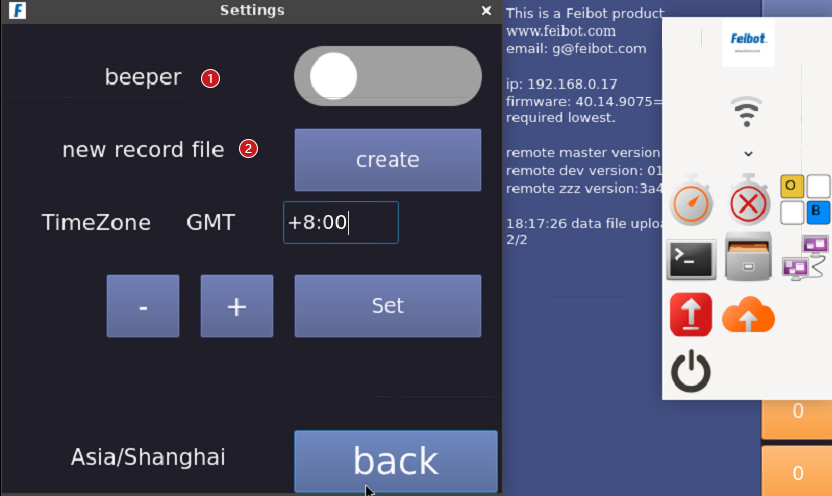

Ⅺ. Settings Interface
1. Enable/disable the beeper.
2. Create a new record file.

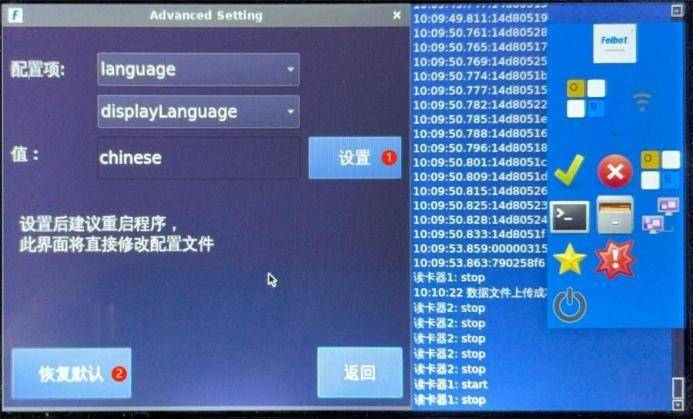

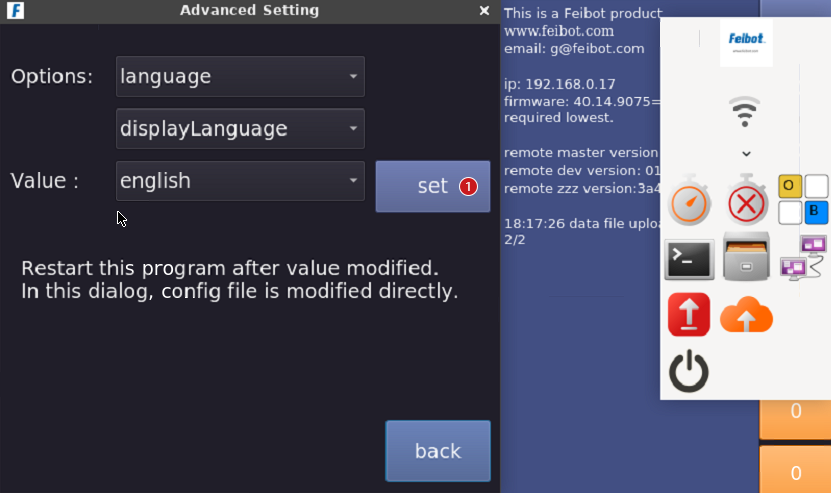

Ⅻ. Advanced Settings Interface
1. You can choose "chinese", "english", and "traditional Chinese" in three language modes.

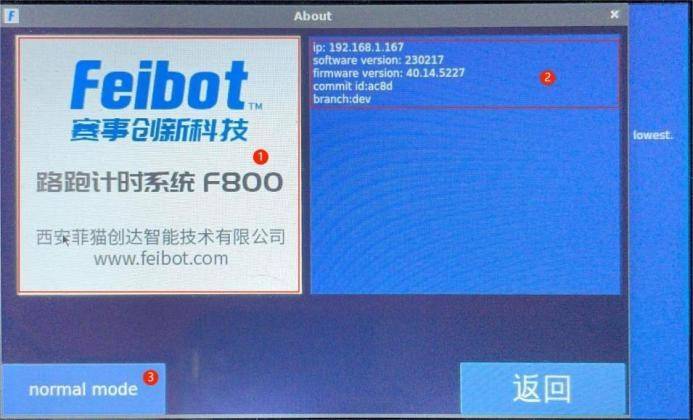

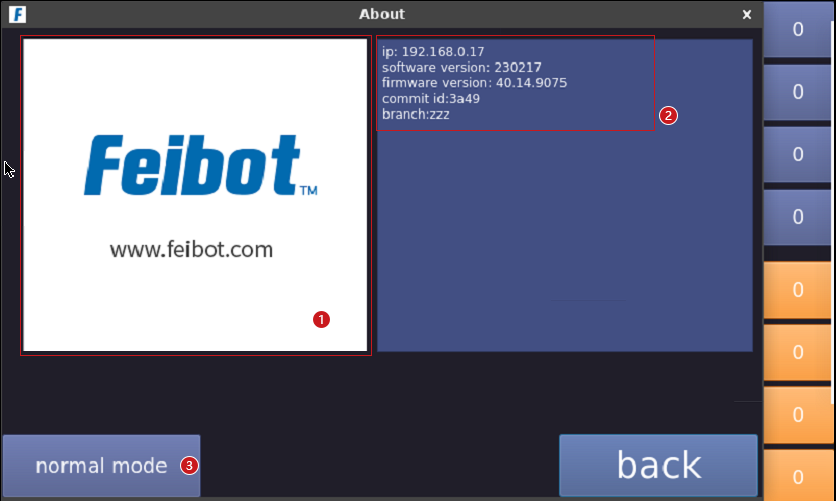

ⅩⅢ. About Interface
1. About our company.
2. About reader lP, software version, firmware version, branch version ID and branch.
3. After clicking, you can select two modes:"Test Mode" and "Normal Mode". When updating the software, select test mode, when waiting for the version to stabilize then select the normal mode.

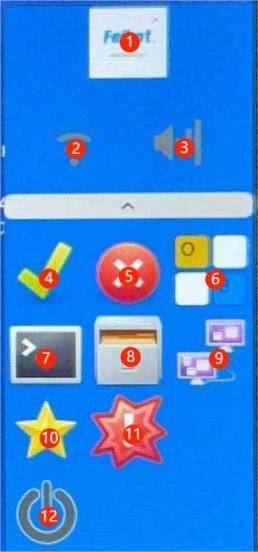

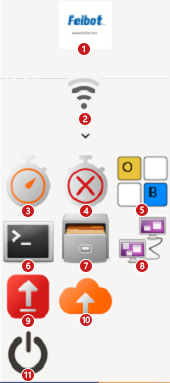

ⅩⅣ. Icon Function
1. Open the app.
2. Turn on Wi-Fi connection.
3. Start the software.
4. Terminate the software.
5. Open the keyboard.
6. Open the terminal.
7. Open the storage file of this reader.
8. Advanced network settings.
9. Upgrade to the latest stable version.
10. Upgrade to the latest test version.
11. Turn off reader.
