I. Installation Tutorial
Connect the FMA2 pro mat to the F2000 hybrid reader box, then slowly unroll the mat and lay it flat on the area of the road where timing is needed.
II. Using Guide---FMA2 pro mat & Side antenna
1. FMA2 Pro Mat Sensing Range
The FMA2 pro mat creates an electromagnetic induction area within a range of 3 to 3.5 meters in front and behind when it is operating. Chips within this range will be detected by the reader box. The sensing area is as follows:

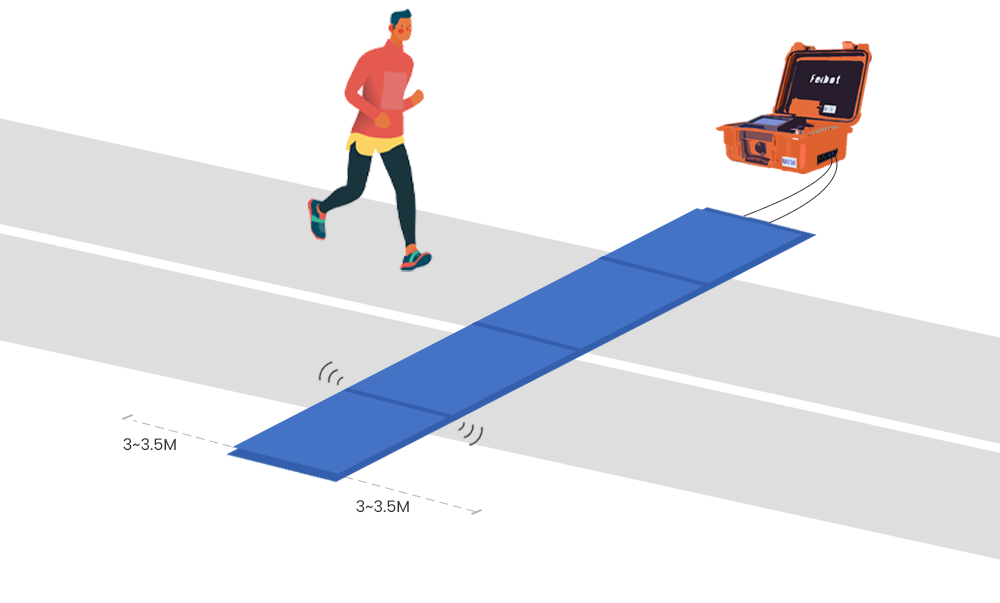

Figure 1: Schematic diagram of the FMA2 Pro mat sensing range
2. Use of Multiple Sets of FMA2 Pro Mat
When using multiple sets of FMA2 pro mats, it is important to note that any two mats connected to different reader boxes should be spaced at least 6 meters apart to prevent electromagnetic wave interference between the mats.

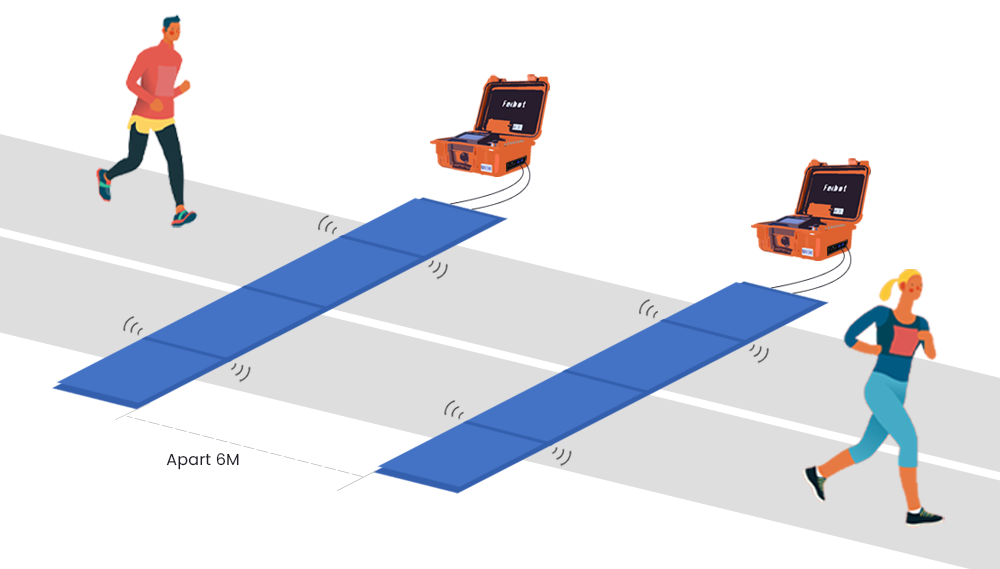

Figure 2: Schematic diagram of multiple sets of FMA2 Pro mats installation
3. Sensing Range of Side Antenna
When the side antenna is operating, it forms an electromagnetic induction area with a front range of 9 meters, and a lateral radiation angle of approximately 70°. Chips within this range can be detected by the reader box. The sensing area diagram is as follows:

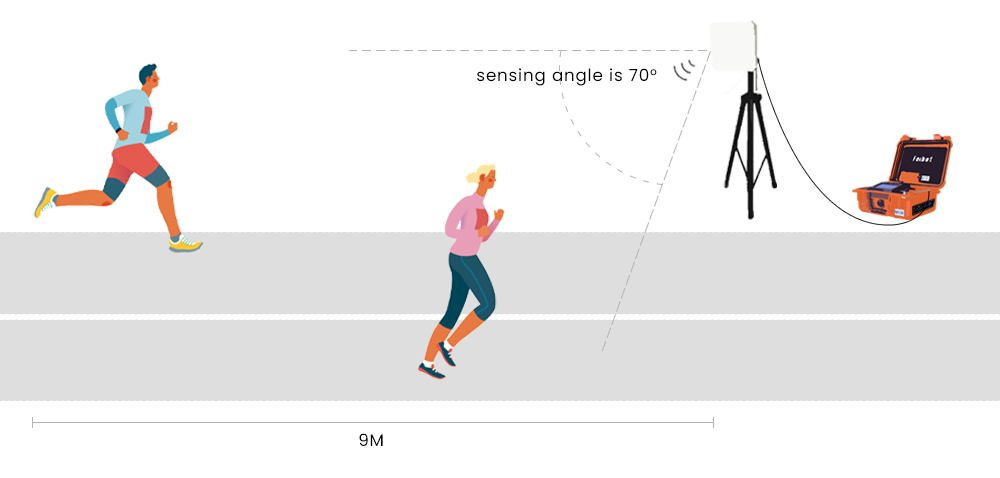

Figure 3: Schematic diagram of single side antenna sensing range
4. Combined Use of FMA2 Pro Mat and Side Antenna

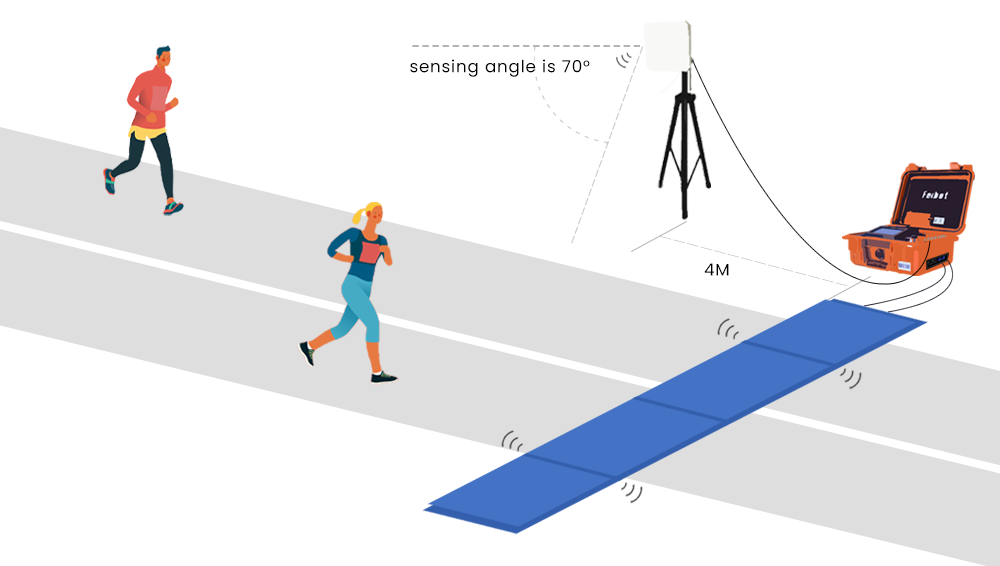

Figure 4.1: Schematic diagram of the FMA2 pro mat used with side antenna

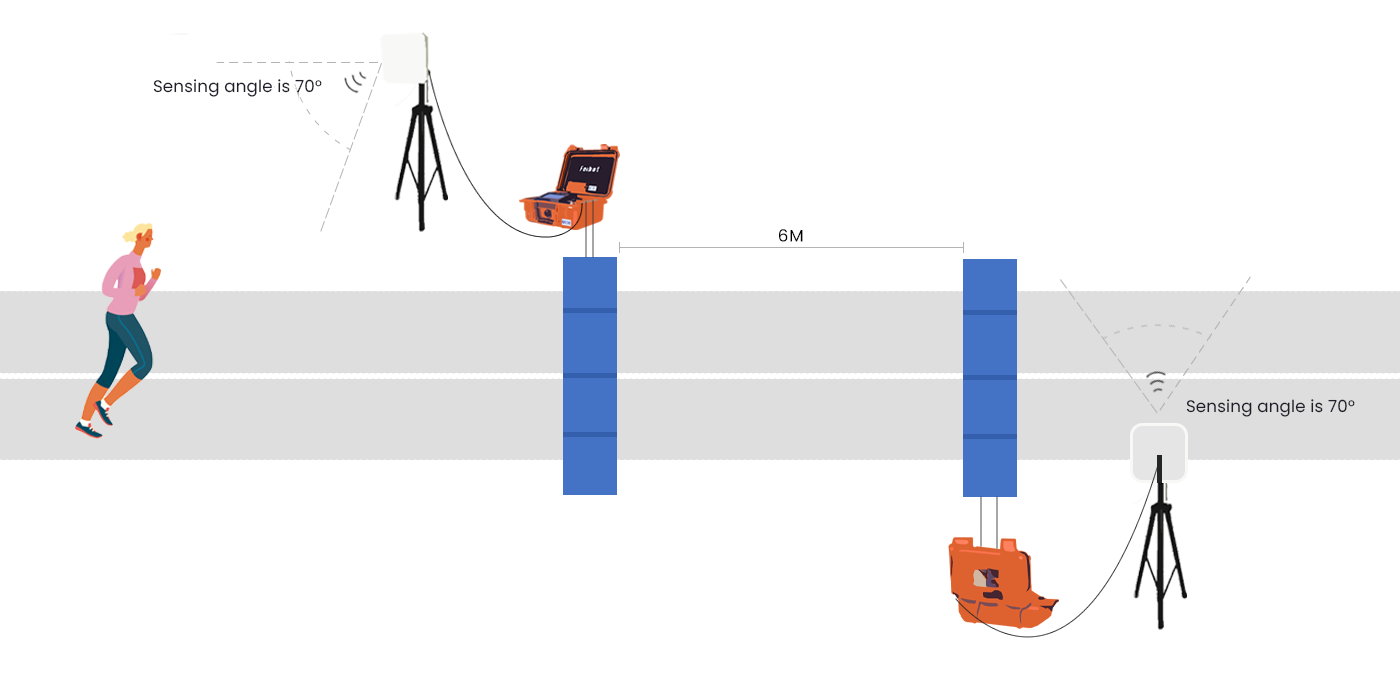

Figure 4.2: Schematic diagram of multiple side antennas used together
