Note: During the power consumption test for all models of LED clocks, the battery is set to 31.2AH, voltage is 12V, and the display is set to all-zero state. (All-zero state: The LED clock is reset to zero, meaning all light bulbs are lit except for the middle horizontal line of the digits.)
I. Samll 5-Digit Clock

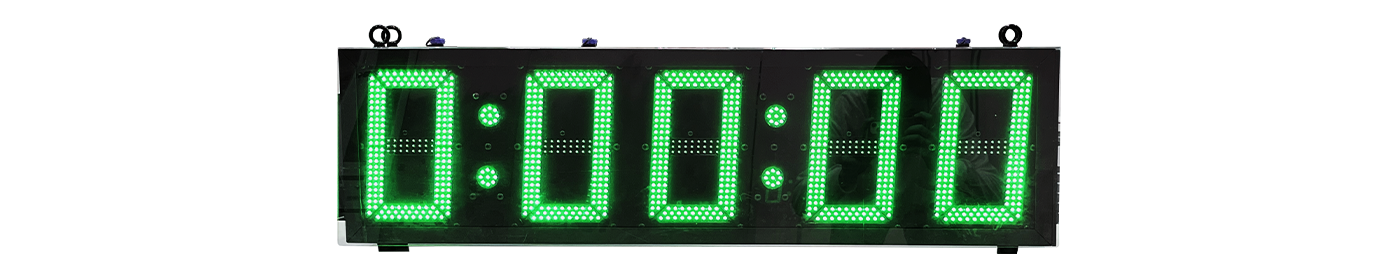

Figure 1: Small 5-digit clock all-zero state illustration

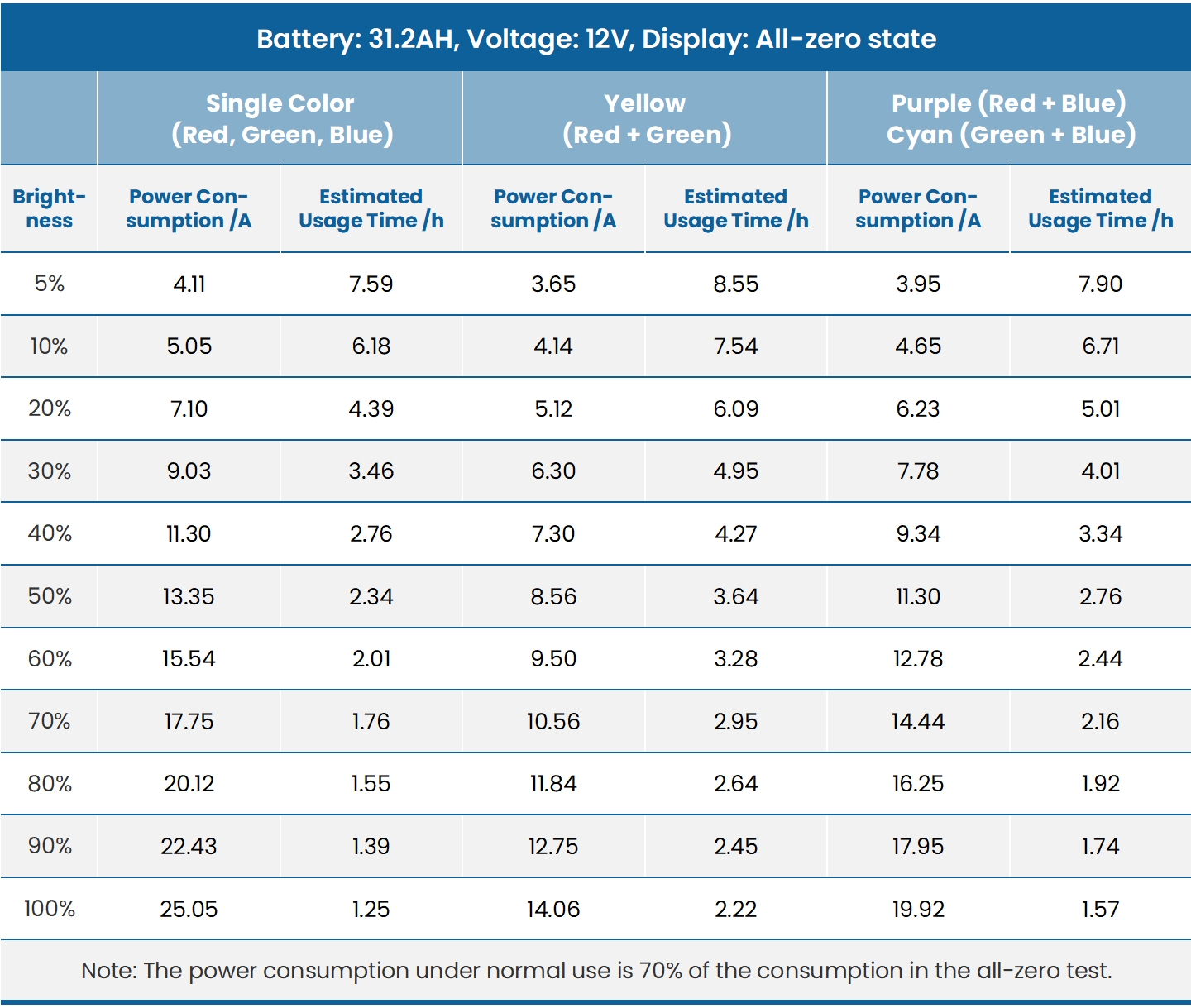

Table 1: Small 5-digit clock power consumption test table
II. Samll 6-Digit Clock

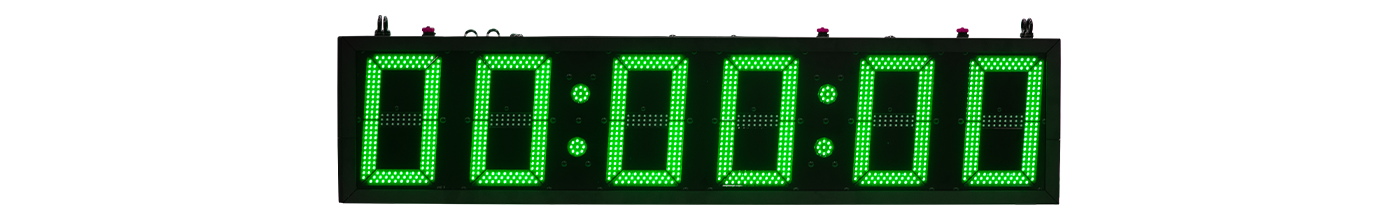

Figure 2: Small 6-digit clock all-zero state illustration

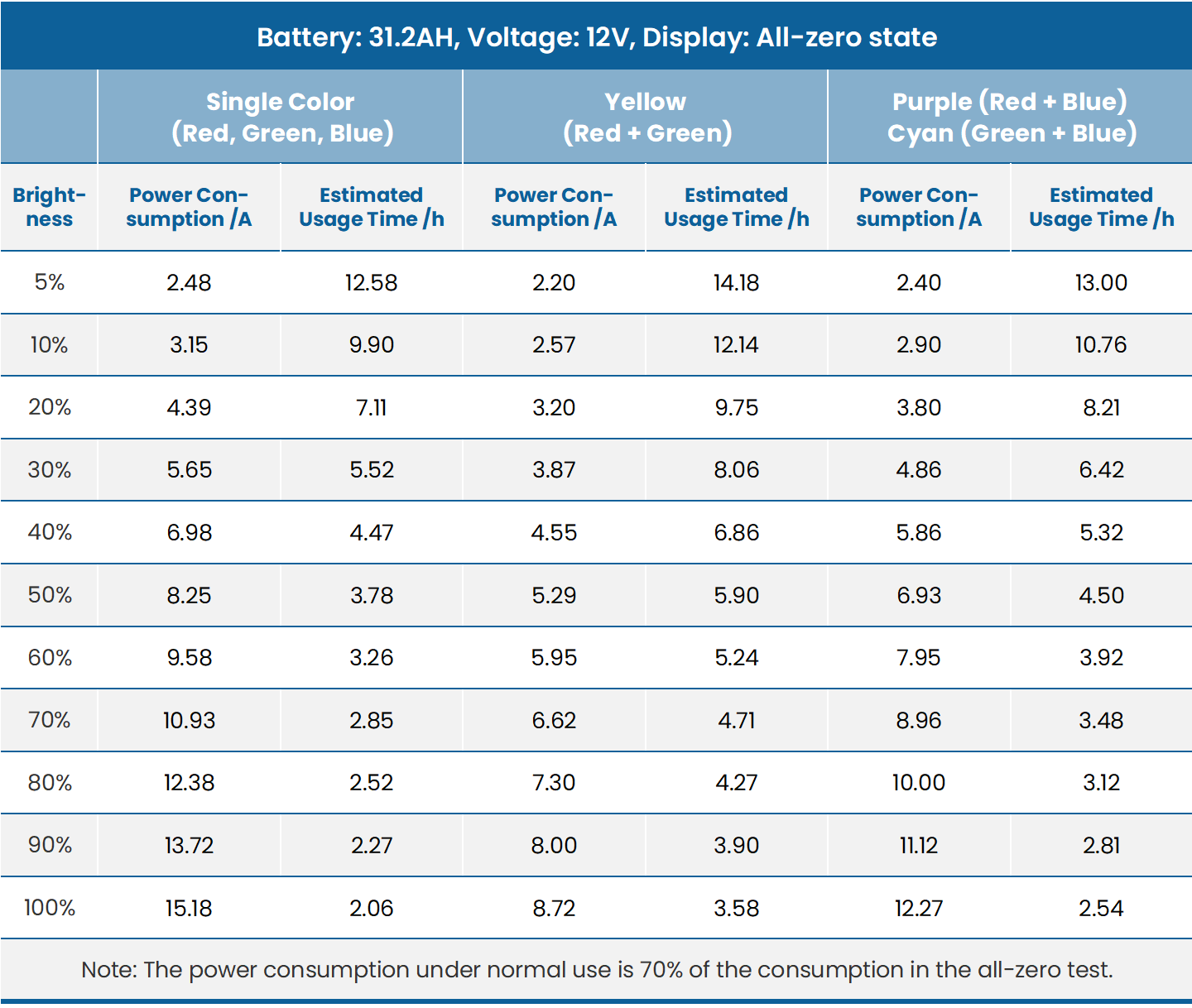

Table 2: Small 6-digit clock power consumption test table
III. Large 5-Digit Clock

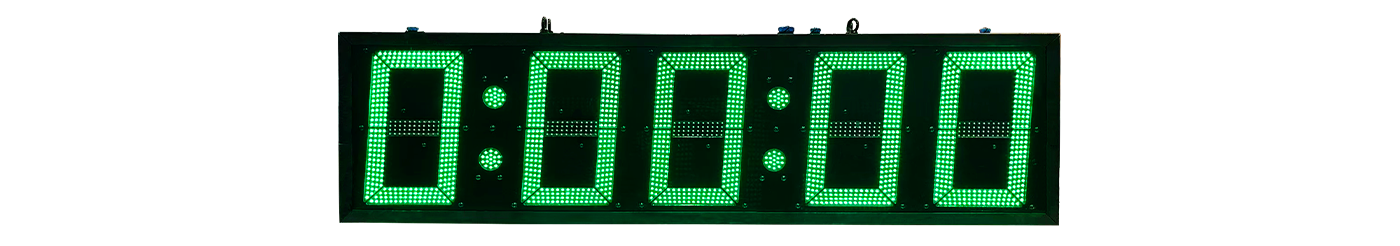

Figure 3: Large 5-digit clock all-zero state illustration

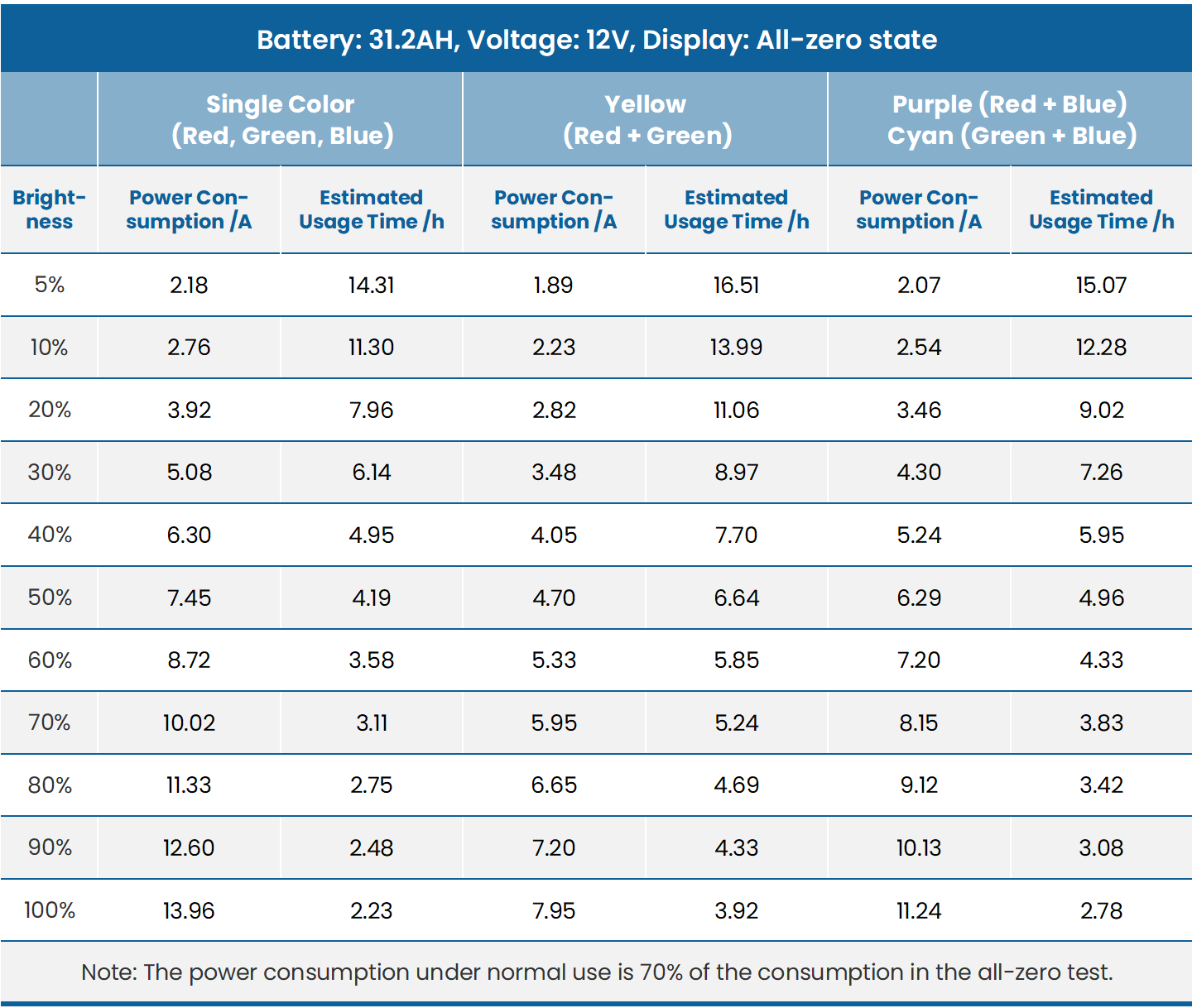

Table 3: Large 5-digit clock power consumption test table
