I. Installation Tutorial
Connect the FMA2 mat antenna to the F800 UHF reader box, then slowly unroll the mat and lay it flat on the area of the road where timing is needed. When connecting, make sure the line labels correspond correctly to the BNC connector numbers on the F800 UHF reader box.
II. Video
III. Using Guide---FMA2 mat antenna & Side antenna

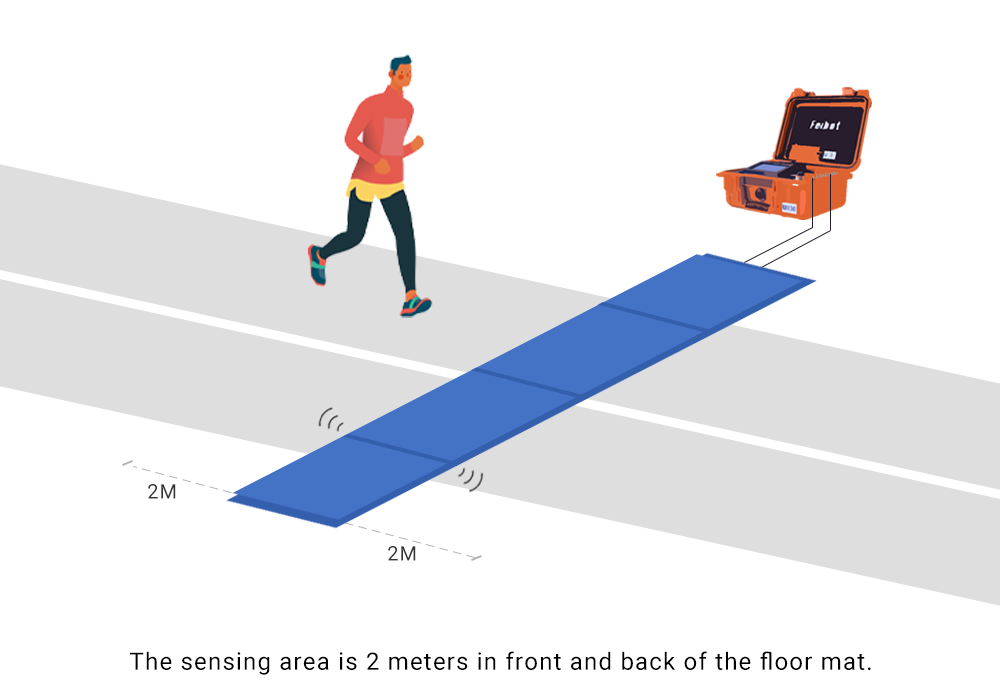

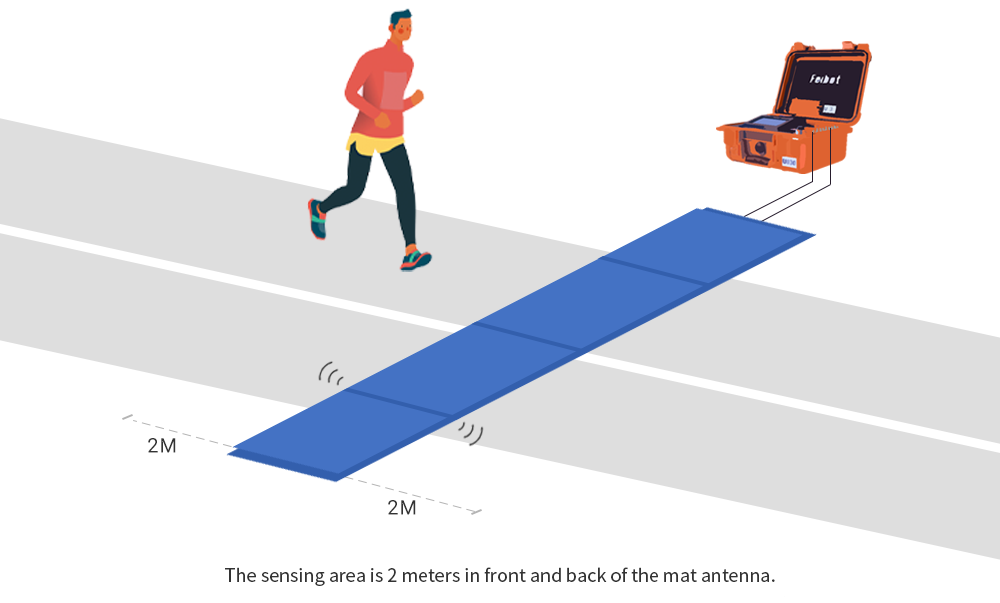

1. FMA2 Mat Antenna Sensing Range

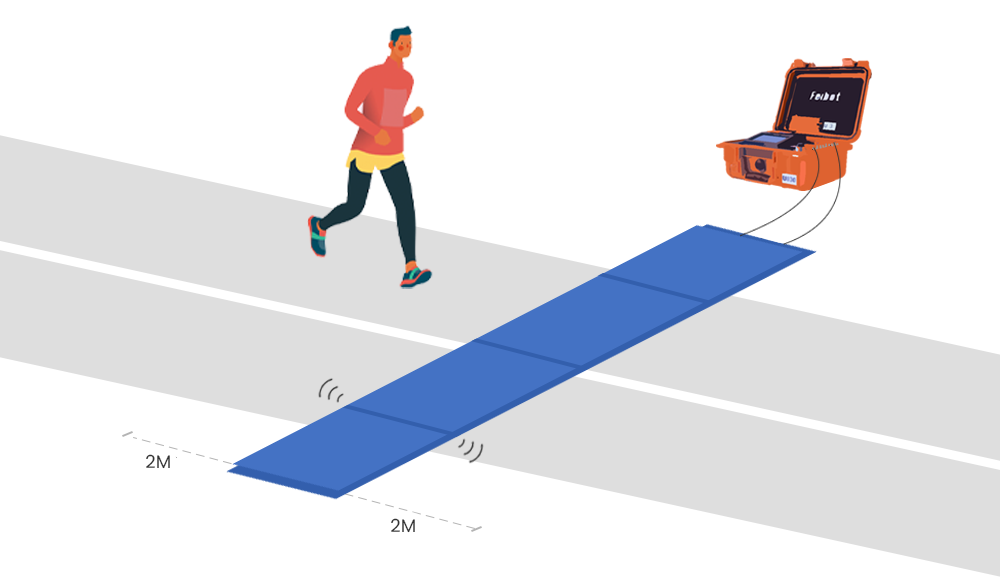

The FMA2 mat antenna creates an electromagnetic induction area within a range of two meters in front and behind when it is operating. Chips within this range will be detected by the reader box. The sensing area is as follows:

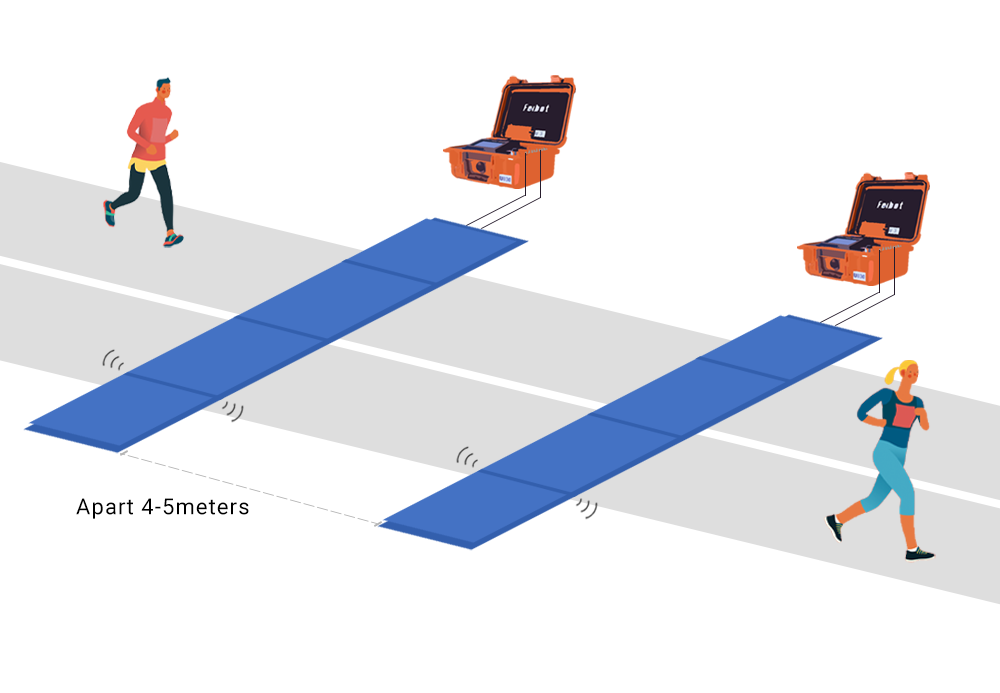

2. Use of Multiple FMA2 Mat Antennas

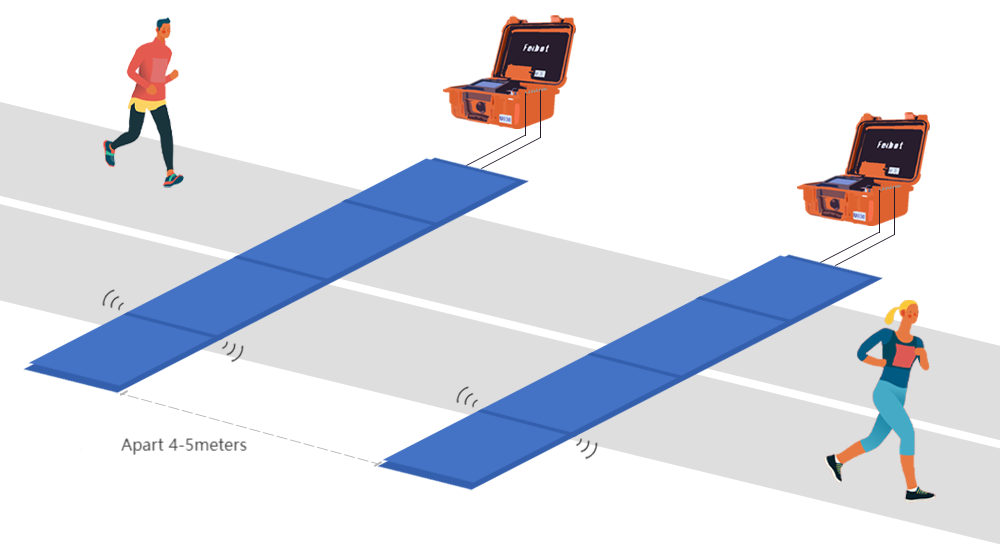

When using multiple sets of FMA2 mat antennas, it is important to note that any two antennas connected to different reader boxes should be spaced at least 4 to 5 meters apart to prevent electromagnetic wave interference between the antennas.

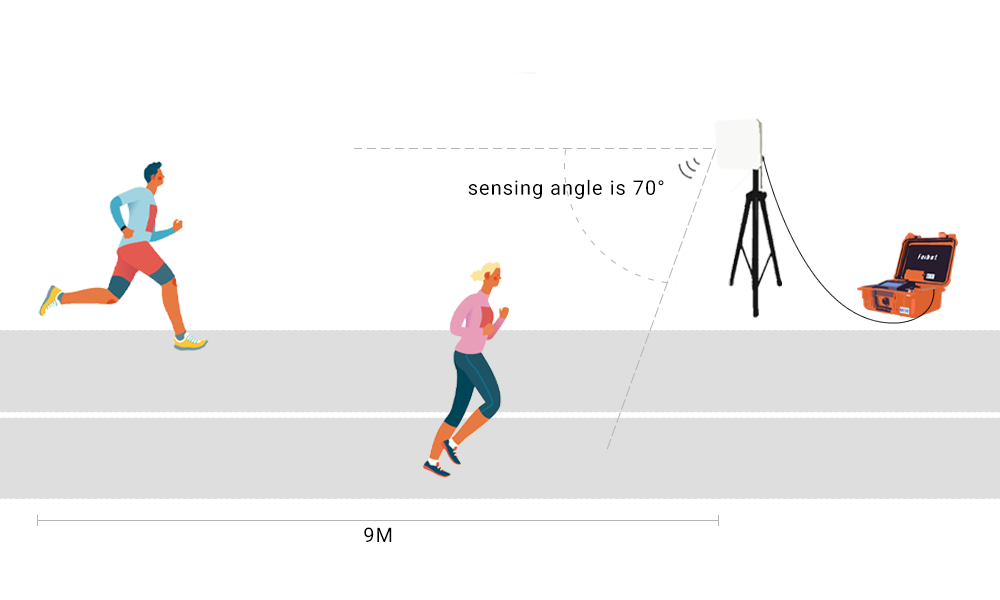

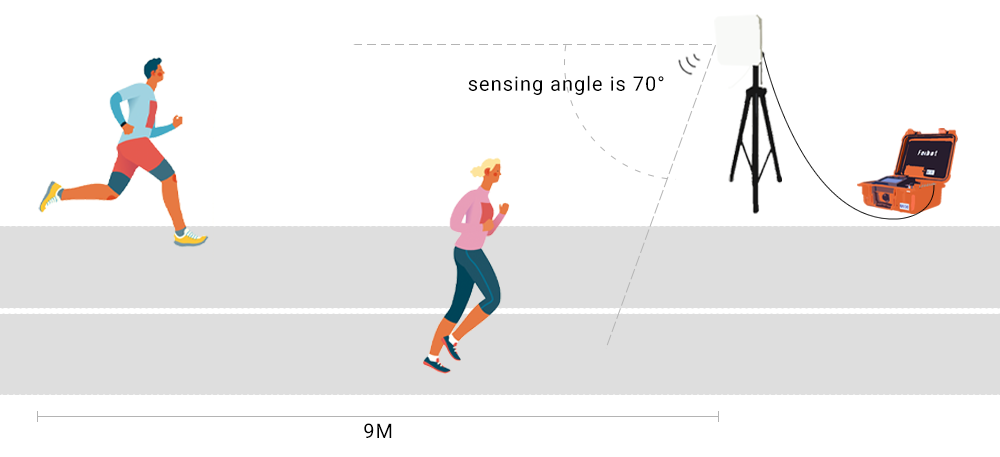

3. Sensing Range of Side Antenna
When the side antenna is operating, it forms an electromagnetic induction area with a front range of 9 meters, and a lateral radiation angle of approximately 70°. Chips within this range can be detected by the reader box. The sensing area diagram is as follows:

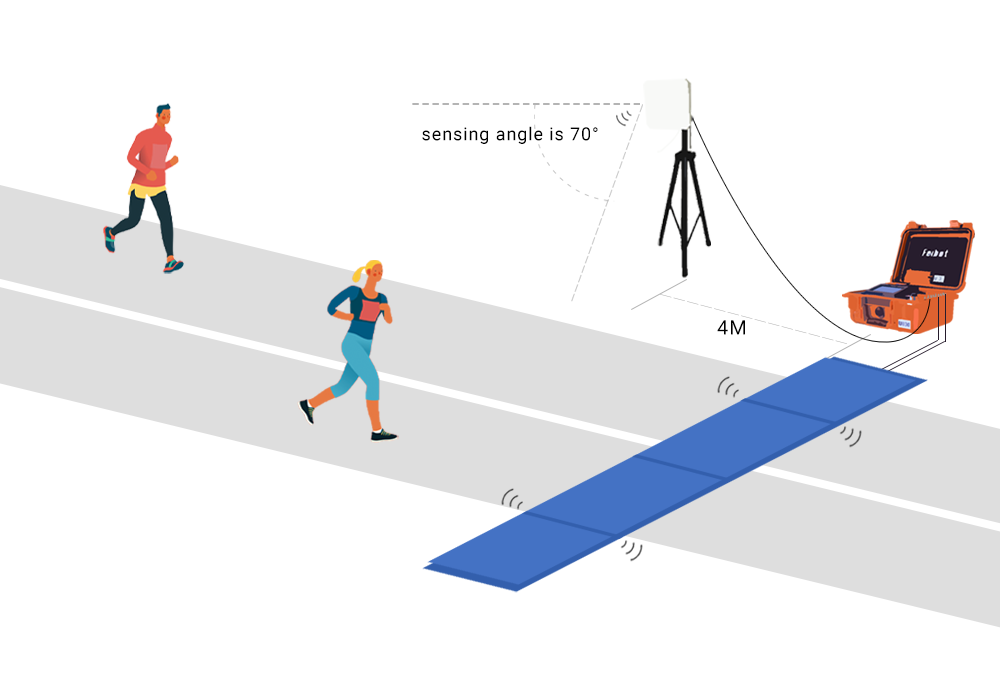

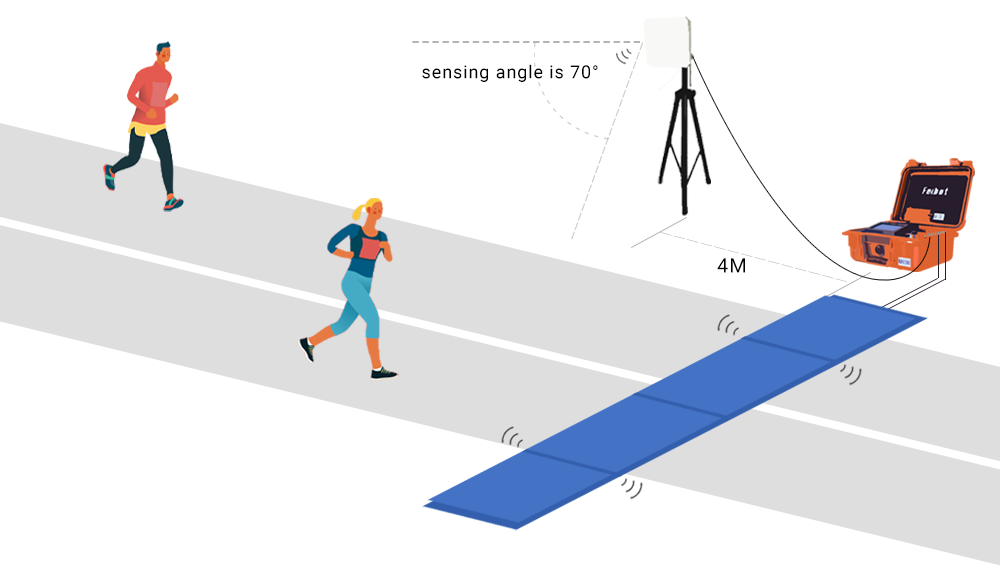

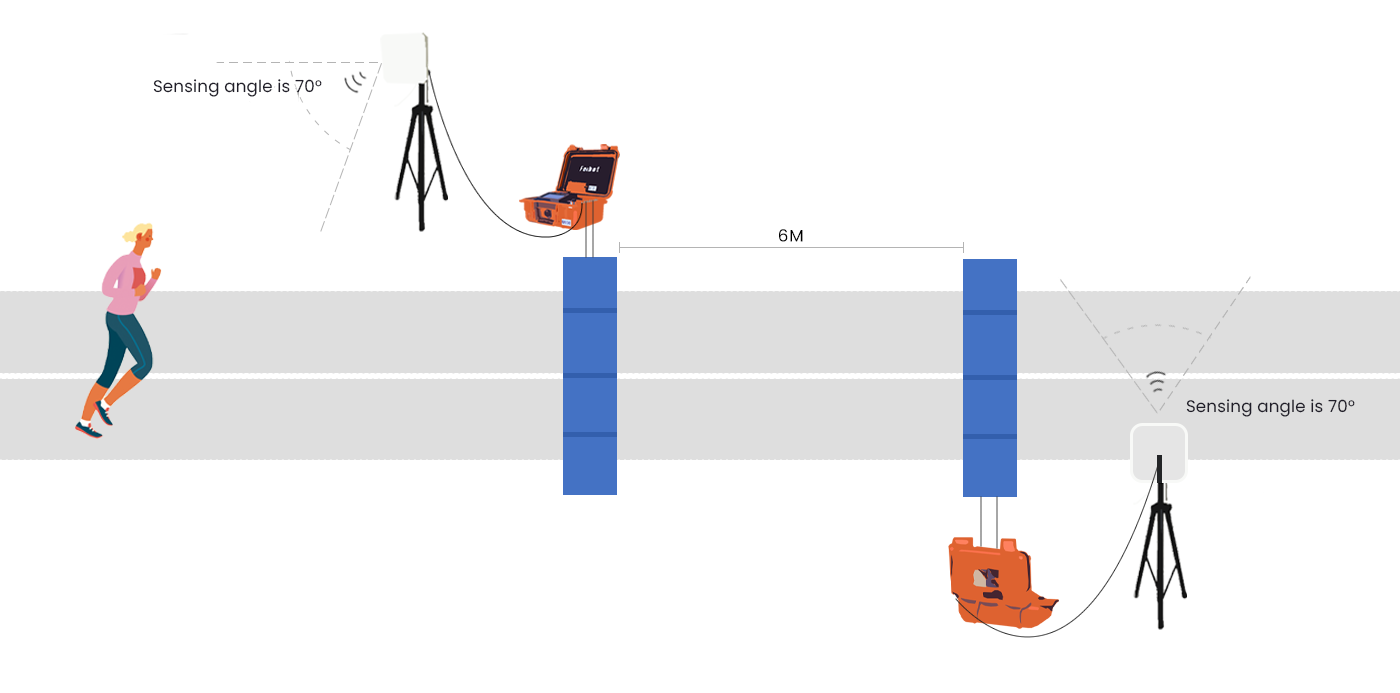

4. Combined Use of FMA2 Mat Antenna and Side Antenna

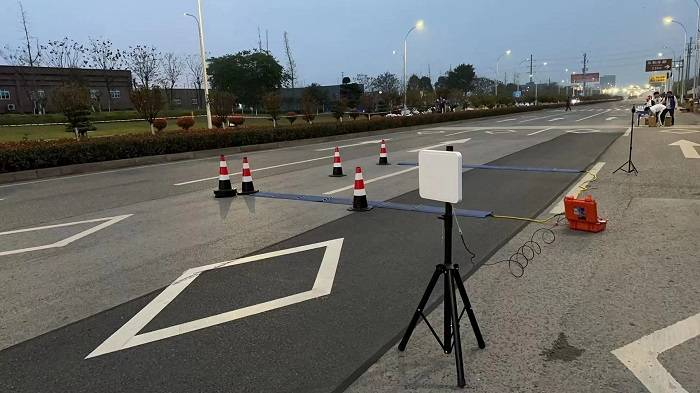

5. Case
